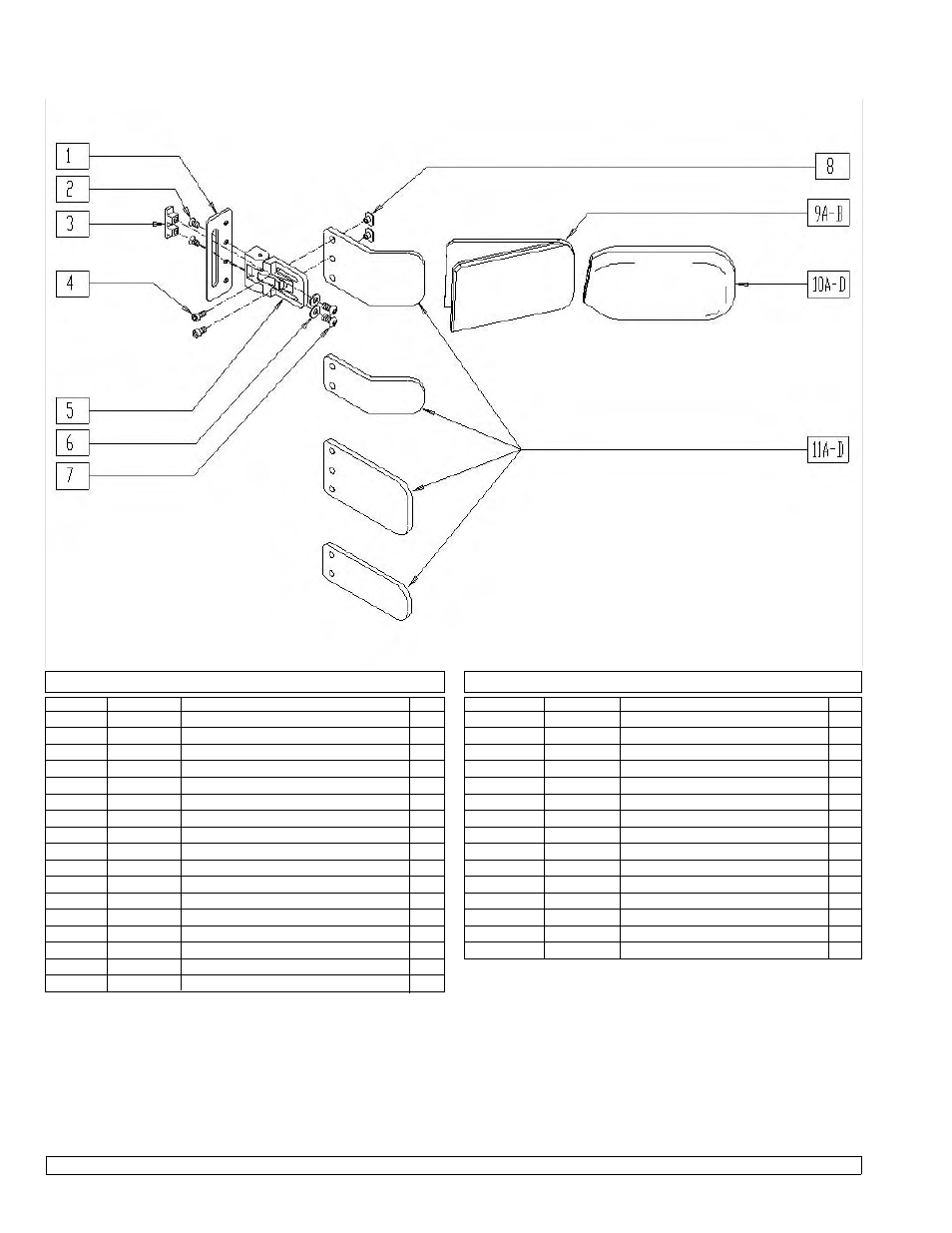

KID KART PARTS MANUAL MAY 2007 A.R.T. GROUP PAGE 1.27
SWING-AWAY LATERAL
TRUNK SUPPORT
XPRS0X28
ITEM NUMBER DESCRIPTION QTY
1-9A,10A,11A 900037 LAT ASSY CONTOUR 2-3/4” - NAVY SGL
1-9A,10A,11C 900038 LAT ASSY PLANAR 2-3/4” - NAVY SGL
1-9A,10B,11A 900039 LAT ASSY CONTOUR 2-3/4” - GRAY SGL
1-9A,10B,11C 900040 LAT ASSY PLANAR 2-3/4” - GRAY SGL
1-9B,10C,11B 900041 LAT ASSY CONTOUR 1-3/4” - NAVY SGL
1-9B,10C,11D 900042 LAT ASSY PLANAR 1-3/4” - NAVY SGL
1-9B,10D,11B 900043 LAT ASSY CONTOUR 1-3/4” - GRAY SGL
1-9B,10D,11D 900044 LAT ASSY PLANAR 1-3/4” - GRAY SGL
1-9A,10A,11A 9161069301 LAT ASSY CONTOUR 2-3/4” - NAVY PR
1-9A,10A,11C 9161069302 LAT ASSY PLANAR 2-3/4” - NAVY PR
1-9A,10B,11A 9161069601 LAT ASSY CONTOUR 2-3/4” - GRAY PR
1-9A,10B,11C 9161069602 LAT ASSY PLANAR 2-3/4” - GRAY PR
1-9B,10C,11B 9161069303 LAT ASSY CONTOUR 1-3/4” - NAVY PR
1-9B,10C,11D 9161069304 LAT ASSY PLANAR 1-3/4” - NAVY PR
1-9B,10D,11B 9161069603 LAT ASSY CONTOUR 1-3/4” - GRAY PR
1-9B,10D,11D 9161069604 LAT ASSY PLANAR 1-3/4” - GRAY PR
ITEM NUMBER DESCRIPTION QTY
1 9510104001 LATERAL BASE PLATE 2
2 9612120606 MACH SCREW #10-32 x 3/8 FHP ANS 4
3 9530100001 LATERAL RETAINER 2
4 9610000908 MACH SCREW 1/4-20 x 1/2 SHCS ANS 2
5 9591010005 ADJ LATERAL SWING AWAY - XP 2
6 262110-QU WASHER 1/4” FLAT THIN ANS 4
7 9611000908 MACH SCREW 1/4-20 x 1/2 SBHCS ANS 4
8 9683120104 T-NUT 1/4-20 x 1/4 SLOT BASE ZPS 2
9A 9490503111 LATERAL FOAM 2-3/4” 2
9B 9490502111 LATERAL FOAM 1-3/4” 2
10A 9170618101 LATERAL COVER 2-3/4” - NAVY 2
10B 9170612102 LATERAL COVER 2-3/4” - GRAY 2
10C 9170618102 LATERAL COVER 1-3/4” - NAVY 2
10D 9170612103 LATERAL COVER 1-3/4” - GRAY 2
11A 9553050302 LATERAL PLASTIC - CONTOUR 2-3/4” 2
11B 9553050202 LATERAL PLASTIC - CONTOUR 1-3/4” 2
11C 9553050301 LATERAL PLASTIC - PLANAR 2-3/4” 2
11D 9553050201 LATERAL PLASTIC - PLANAR 1-3/4” 2
Effective for models prior to May 2007, having a serial
number without a letter at the end... e.g. xxxxxx07117
