KID KART PARTS MANUAL MAY 2007 A.R.T. GROUP PAGE 1.9

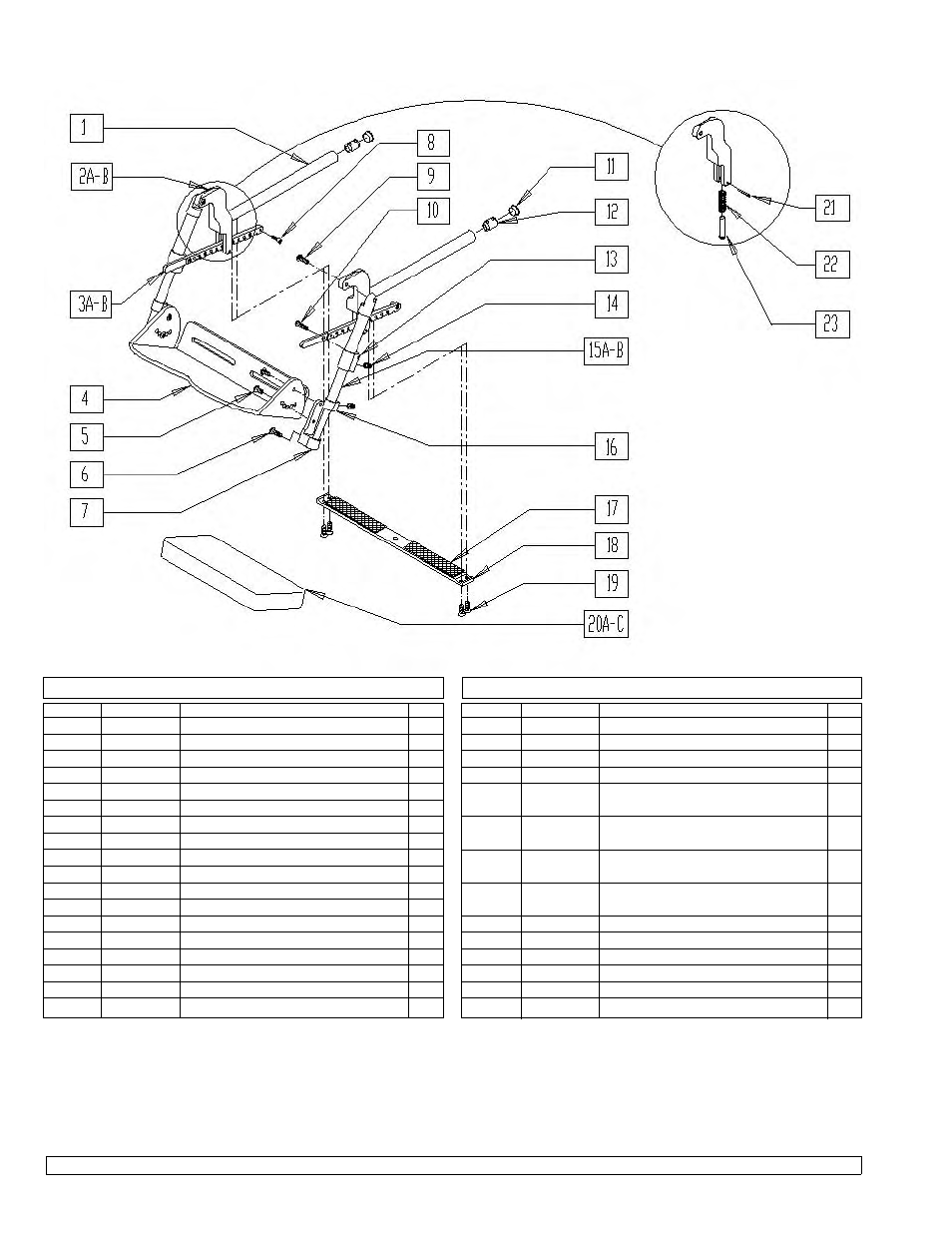

ADJUSTABLE FOOTBED ASSEMBLY
XPRS0X09
ITEM NUMBER DESCRIPTION QTY
16 9530101003 FOOTBED ADJUSTMENT CLAMP 5/8” 2
17 920682 VELCRO ® KIT XPRESS FOOTBED 1
18 9531301001 SEAT MOUNTING BAR - XP 1
19 9612000912 MACH SCREW 1/4-20 x 3/4 FHS ANS 4
1-19 9130040401 FOOTBED COMPLETE w/HARDWARE
1,2A,3A, 920676 FOOTBED SUPPORT ARM - L
10-12
1,2B,3B, 920677 FOOTBED SUPPORT ARM - R
10-12
7-10,13, 920678 FOOTBED TELESCOPING ASSY - L
14,15A,16
7-10,13, 920679 FOOTBED TELESCOPING ASSY - R
14,15B,16
20A 9490911071 FOOTBED FOAM 3/4” - XP 1
20B 9490911072 FOOTBED FOAM 1” - XP 1
20C 9490911073 FOOTBED FOAM 1/2” - XP 1
21 9697212161 ROLL PIN 1/8” x 1.0” 2
22 9752503815 SPRING, COMPRESSION 2
23 9540624001 SPRING FOLLOWER 2
ITEM NUMBER DESCRIPTION QTY
1 9451110002 SEAT ADJUSTMENT TUBE - XP 2
2A 9320501001 KNEE ANGLE BLOCK - L - XP 1
2B 9320501002 KNEE ANGLE BLOCK - R - XP 1
3A 9530901002 KNEE ANGLE ADJUST BAR - L - XP 1
3B 9530901001 KNEE ANGLE ADJUST BAR - R - XP 1
4 9552180902 FOOTBED 1
5 9611000908 MACH SCREW 1/4-20 x 1/2 SBHCS ANS 4
4-5 920680 FOOTBED w/HARDWARE
6 9610000604 MACH SCREW #10-24 x 1/4 SBHCS ANS 2
7 9530103002 FOOTBED MOUNTING BRACKET 2
8 9611000914 MACH SCREW 1/4-20 x 7/8 SBHCS ANS 3
9 9611000912 MACH SCREW 1/4-20 x 3/4 SBHCS ANS 2
10 9611000612 MACH SCREW #10-24 x 3/4 SBHCS ZPS 2
11 560741 INSERT PLUG 3/4” - RIBBED 2
12 9652006010 SEAT TUBE NUT 2
13 9530101004 FOOTBED ADJUSTMENT CLAMP 3/4” 2
14 9627011808 SET SCREW 5/16-18 x 1/2 CPNT SS 2
15A 9594121502 FOOTBED TELESCOPING ASSY - L 1
15B 9594121501 FOOTBED TELESCOPING ASSY - R 1
