KID KART PARTS MANUAL MAY 2007 A.R.T. GROUP PAGE 1.31

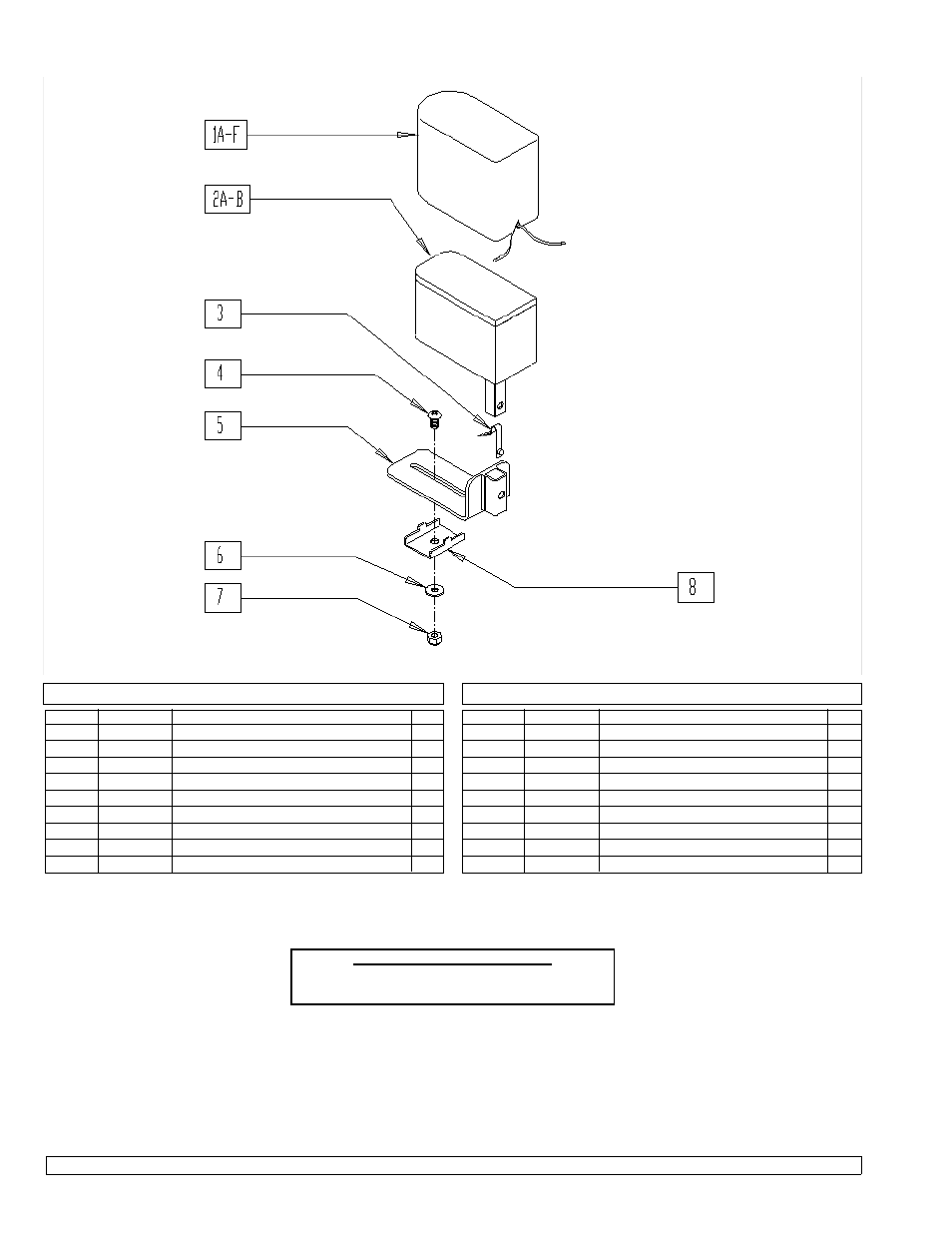

ABDUCTOR BLOCK
XPRS0X24
ITEM NUMBER DESCRIPTION QTY
5 9510402003 STEEL ANGLE - ABDUC HDWR 1
6 9640140867 WASHER 1/4” SS 1
7 9650701012 NYLOCK NUT, LOW 1/4-20 ZPS 1
8 9510101004 ANTI-SPIN PLATE - ABDUC HDWR 1
1A, 2A-8 900059 ABDUCTOR, SMALL - GRAY
1B, 2A-8 900060 ABDUCTOR, SMALL - NAVY
1C, 2A-8 103646 ABDUCTOR, SMALL - BLACK
1D, 2B-8 900061 ABDUCTOR, LARGE - GRAY
1E, 2B-8 900062 ABDUCTOR, LARGE - NAVY
1F, 2B-8 103187 ABDUCTOR, LARGE - BLACK
ITEM NUMBER DESCRIPTION QTY
1A 9171213105 ABDUCTOR COVER, SMALL - GRAY 1
1B 9171218101 ABDUCTOR COVER, SMALL - NAVY 1
1C 9171201101 ABDUCTOR COVER, SMALL - BLACK 1
1D 9171213103 ABDUCTOR COVER, LARGE - GRAY 1
1E 9171218102 ABDUCTOR COVER, LARGE - NAVY 1
1F 9171201102 ABDUCTOR COVER, LARGE - BLACK 1
2A-8 9161099004 ABDUCTION BLOCK, SMALL w/HDWR 1
2B-8 9161099005 ABDUCTION BLOCK, LARGE w/HDWR 1
3 9691121001 SNAP BUTTON - SINGLE, B-100 1
4 9611000914 MACH SCREW 1/4-20 x 7/8 SBHCS ANS 1
ABDUCTOR BLOCK SIZES
Small: 2” wide x 4-1/4” long x 3” tall
Large: 3” wide x 5-3/4” long x 3-1/4” tall
