KID KART PARTS MANUAL PAGE 1.8 MAY 2007 A.R.T. GROUP

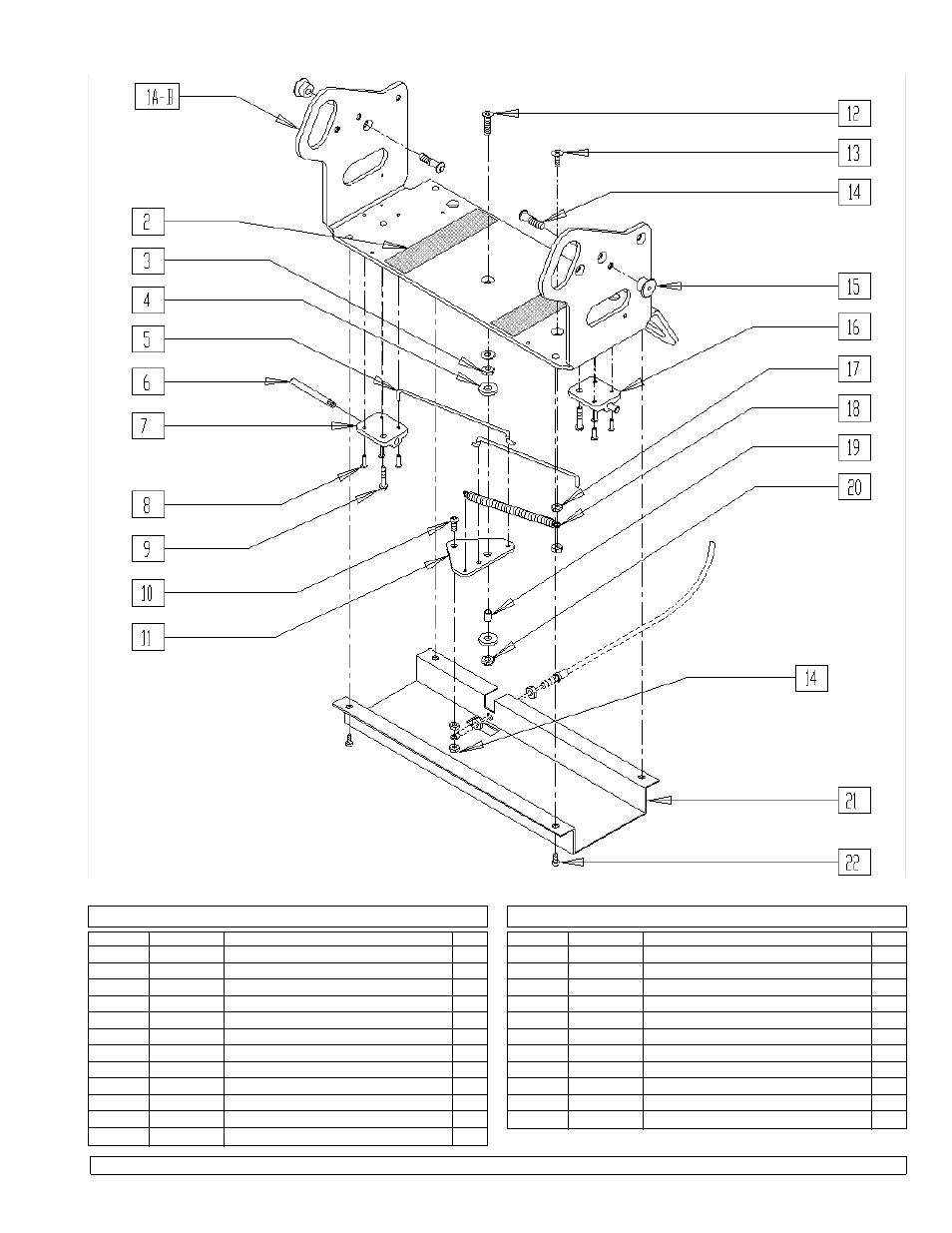

TILT-IN-SPACE SEAT PAN
XPRS0X01
ITEM NUMBER DESCRIPTION QTY
13 9612120610 MACH SCREW #10-24 x 5/8 FHP ANS 1
14 9612000908 MACH SCREW 1/4-20 x 1/2 FHS ANS 2
15 9541608001 T-I-S PIVOT POST 2
16 9320202001 T-I-S RELEASE PIN MOUNT, R - XP 1
17 9651602010 HEX JAM NUT, LOW #10-24 ZPS 4
18 9754703135 T-I-S ACTIVATOR SPRING - XP 1
19 9670720506 BRONZE BUSHING 1/4”x5/16”x3/8” 1
20 9650501010 NYLOCK NUT #10-24 ZPS 1
21 9610000604 MACH SCREW #10-24 x 1/4 SHCS ANS 4
22 9511104001 T-I-S ASSEMBLY COVER - XP 1
1A-22 920687 TILT SEAT PAN ASSY - TRANSIT
1B-22 920686 TILT SEAT PAN ASSY - NON-TRANSIT
ITEM NUMBER DESCRIPTION QTY
1A 9430011407 SEAT BASE - TRANSIT (BENT) - XP 1
1B 9430011406 SEAT BASE - NON-TRANSIT (BENT) - XP 1
2 9261000032 VELCRO ® LOOP 2" BLACK PS 2
3 9650201012 HEX JAM NUT, LOW 1/4-20 ZPS 1
4 9640151225 WASHER 5/16”x3/4”x1/8” NYLON 2
5 9470210601 T-I-S LINKAGE - XP 2
6 9470420201 T-I-S RELEASE PIN - XP 2
7 9320202000 T-I-S RELEASE PIN MOUNT, L - XP 1
8 9660300404 BLIND RIVET 1/8” x 7/16” 6
9 9611000924 MACH SCREW 1/4-20 x 1-1/2 SBHCS ANS 2
10 9611000608 MACH SCREW #10-24 x 1/2 SBHCS ANS 1
11 9510303003 T-I-S ACTIVATOR PLATE - XP 1
12 9612000916 MACH SCREW 1/4-20 x 1 FHS ANS 1
