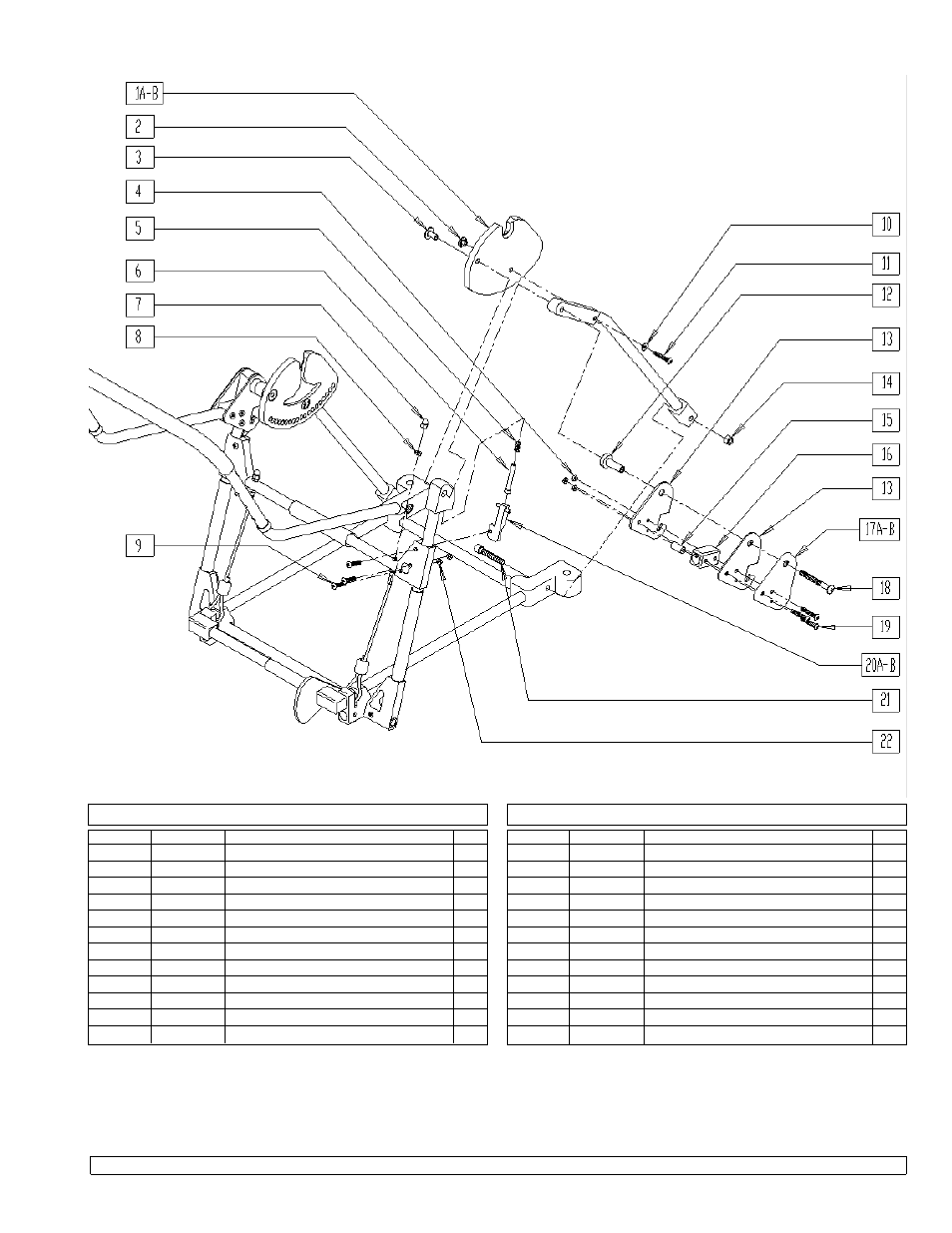

KID KART PARTS MANUAL PAGE 1.48 MAY 2007 A.R.T. GROUP
FRAME w/HANDLEBAR PIVOT - VENTILATOR BASE
XPRS0X39
ITEM NUMBER DESCRIPTION QTY
13 9510504001 HANDLEBAR PLATE 4
14 9650701016 NYLOCK JAM NUT 3/8-16 ZPS 2
15 9670320616 SPACER 3/16”x1/2”x1” ALUM 2
16 9420201011 HANDLEBAR BLOCK 2
17A 9559050401 HANDLEBAR PLATE COVER - R 1
17B 9559050402 HANDLEBAR PLATE COVER - L 1
18 9619101148 MACH SCREW 5/16-18 PHP ZPS 2
19 9611000624 MACH SCREW #10-24 x 1-1/2 SBHCS ANS 2
20A 9530201002 RELEASE BLOCK EXTENTION - R 1
20B 9530201003 RELEASE BLOCK EXTENSION - L 1
21 9610001336 MACH SCREW 3/8-16 x 2-1/4 SHCS ANS 2
22 9650701012 NYLOCK NUT, LOW 1/4-20 ZPS 2
1-22 9150700111 FRAME ASSEMBLY - BLACK - VENT, XP
ITEM NUMBER DESCRIPTION QTY
1A 9530650001 T-I-S BLOCK VENT MOBASE - R 1
1B 9530650002 T-I-S BLOCK VENT MOBASE - L 1
2 9681120106 T-NUT 1/4-20 x 3/8 ROUND ZPS 2
3 9681140112 T-NUT 5/16 x 3/4 ROUND ZPS 2
4 9651602010 TOP LOCK JAM NUT #10-24 ZPS 6
5 9752503815 SPRING - COMPRESSION 3/8” OD x 1-1/4” 2
6 9540430001 SPRING FOLLOWER 2
7 9651001013 ACORN NUT 1/4-28 STL CHROME 2
8 9650201013 HEX JAM NUT 1/4-28 ZPS 2
9 9611000920 MACH SCREW 1/4-20 x 1-1/4 SBHCS ANS 4
10 9640120601 WASHER #12 FLAT ANS 2
11 9611000924 MACH SCREW 1/4-20 x 1-1/2 SBHCS ANS 2
12 9540524001 HANDLEBAR PIVOT BUSHING 2
