PAGE 1.56 MAY 2007 A.R.T. GROUP KID KART PARTS MANUAL
ADJUSTMENT TOOLS
XPRS0X60
ITEM NUMBER DESCRIPTION QTY
2 9790206003 HEX SOCKET WRENCH 3/16”, SHRT ARM 1
ITEM NUMBER DESCRIPTION QTY
1 9790105001 HEX SOCKET DRIVER 5/32”, BALL POINT 1

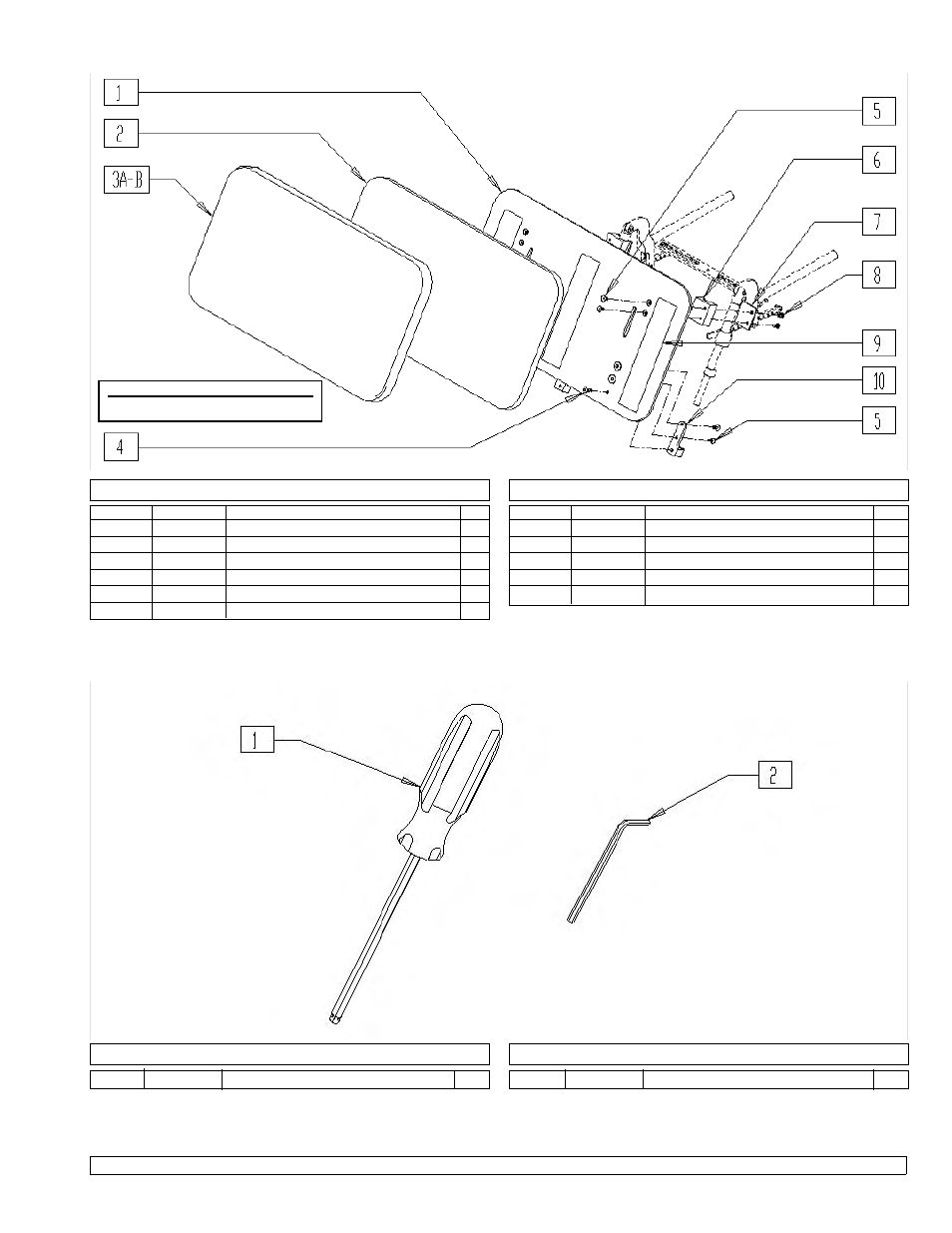

SPICA PLATFORM
XPRS0X61
ITEM NUMBER DESCRIPTION QTY
7 9510201007 RETEN PLATE LEG SUP PANEL SPICA 2
8 9612120610 MACH SCREW #10-24 x 5/8 FHP ANS 4
9 900082 XP SPICA VELCRO ® KIT
10 9530103002 FOOTBED MOUNTING BRACKET 2
1-10(A) 882368 SPICA PLATFORM ASSY (PACK) - XP
1-10(B) 9161087001 SPICA PLATFORM ASSY (VINYL) - XP
ITEM NUMBER DESCRIPTION QTY
1 9552132402 LEG SUPPORT PANEL SPICA 1
2 9490924131 LEG SUPPORT PANEL FOAM SPICA 1
3A 9170801001 LEG SUP COVER SPICA - PACK - BLACK 1
3B 9170801201 LEG SUP COVER SPICA - VINYL - BLACK 1
4 9611000914 MACH SCREW 1/4-20 x 7/8 SBHCS ANS 2
5 9612000908 MACH SCREW 1/4-20 x 1/2 FHS ANS 8
6 9530201009 BATTERY TRAY SUPPORT BLOCK TB LEG 2
SPICA PANEL DIMENSIONS
13” tall x 24” wide
