36 Netra 1290 Server Installation Guide • May 2006

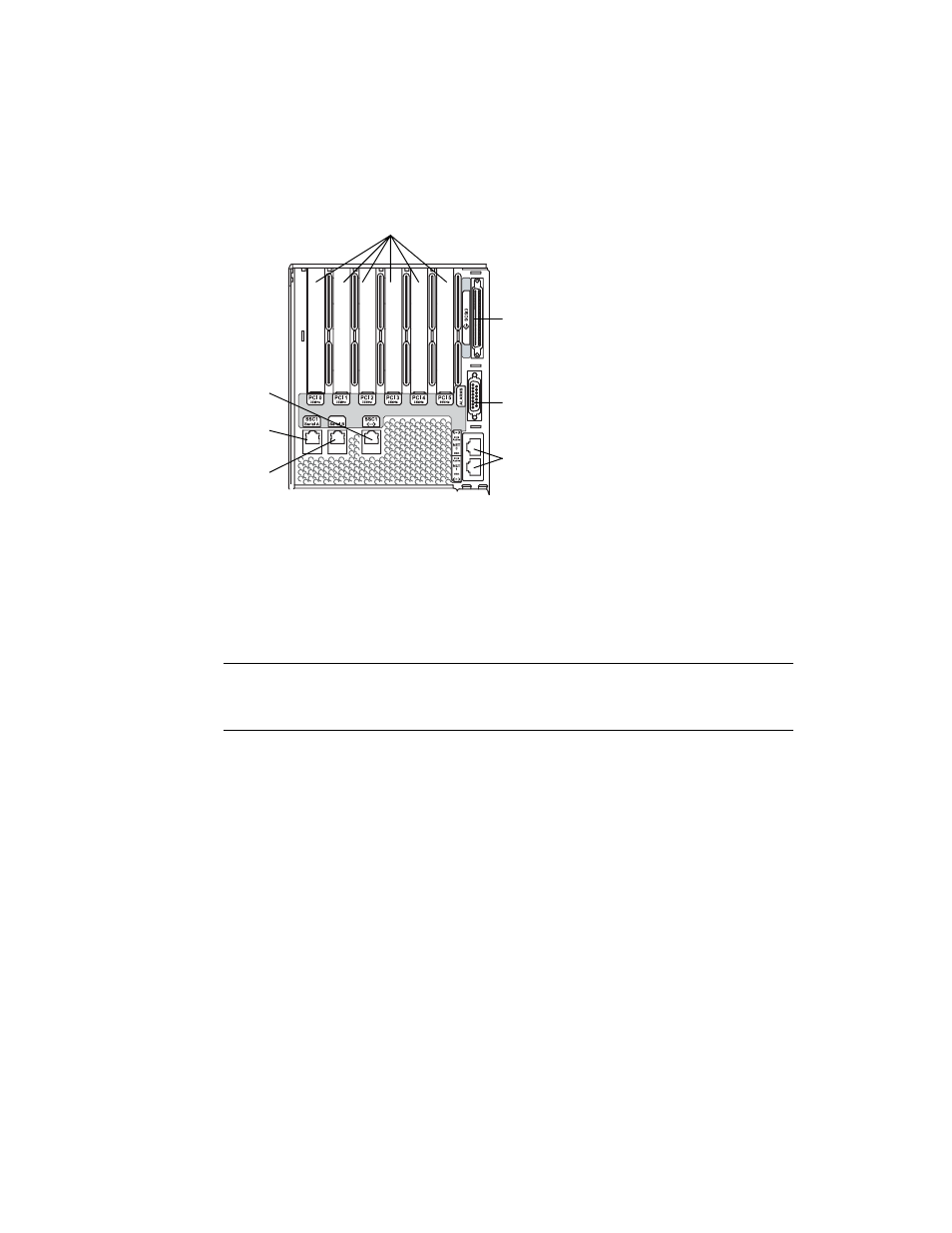

FIGURE 1-26 System Controller and I/O Assembly Locations
▼ To Connect the Administrative Console
Once the initial configuration is complete, you can perform system administration
tasks directly or over the network using the 10/100BASE-T LOM Ethernet port.
Note – Communication on the LOM Serial A port is possible but is subject to
interruption by the LOM device. Refer to the Netra 1290 Server System Administration
Guide, 819-4374.
1. Connect the 10/100BASE-T LOM Ethernet port to the chosen administrative
console (local hub, router, or switch)( FIGURE 1-26 ).
For 10/100BASE-T LOM Ethernet port connector information, see “10/100BASE-T
LOM Ethernet Port” on page 58 .
2. Set up the chosen administrative console.
Refer to the Netra 1290 Server System Administration Guide, 819-4374.
PCI+ 0-5 slots
SCSI port, 68 pins
Alarms port
NET0 and NET1 ports
10/100BASE-T
LOM/SC port
LOM Serial A port
Serial B port
