To install the cma-lite, Figure 1-18 – Sun Microsystems SERVER 1290 User Manual
Page 37

Chapter 1
Unpacking and Installing the Server
25
▼
To Install the CMA–Lite
1. Secure the pivot at the end of the upper arm to the top rear of the server, using the
two captive screws (
2. Secure the center pivot point of the CMA to the inside rear of the left hand slide
rail assembly, using the two captive screws.
3. Secure the pivot at the end of the lower arm to the bottom rear of the server, using
the two captive screws.

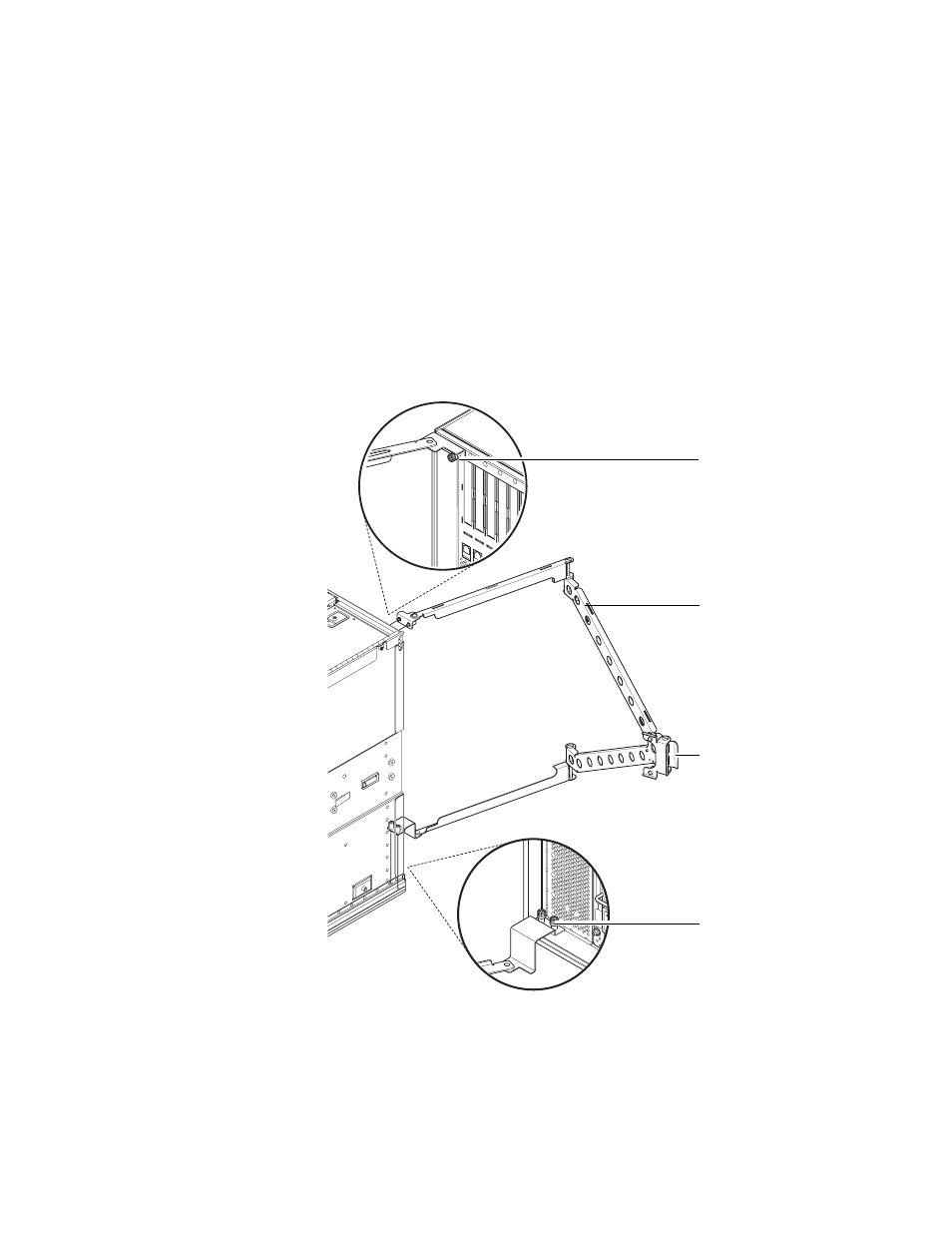

FIGURE 1-18
CMA–Lite Cable Management Arm
Captive
screws (2)
CMA-LIte
Captive
screws (2)
Captive
screws (2)
