-17-
M1013 Owner's Manual (Mfg. Since 6/09)
SE
TU
P
Pulley Cover

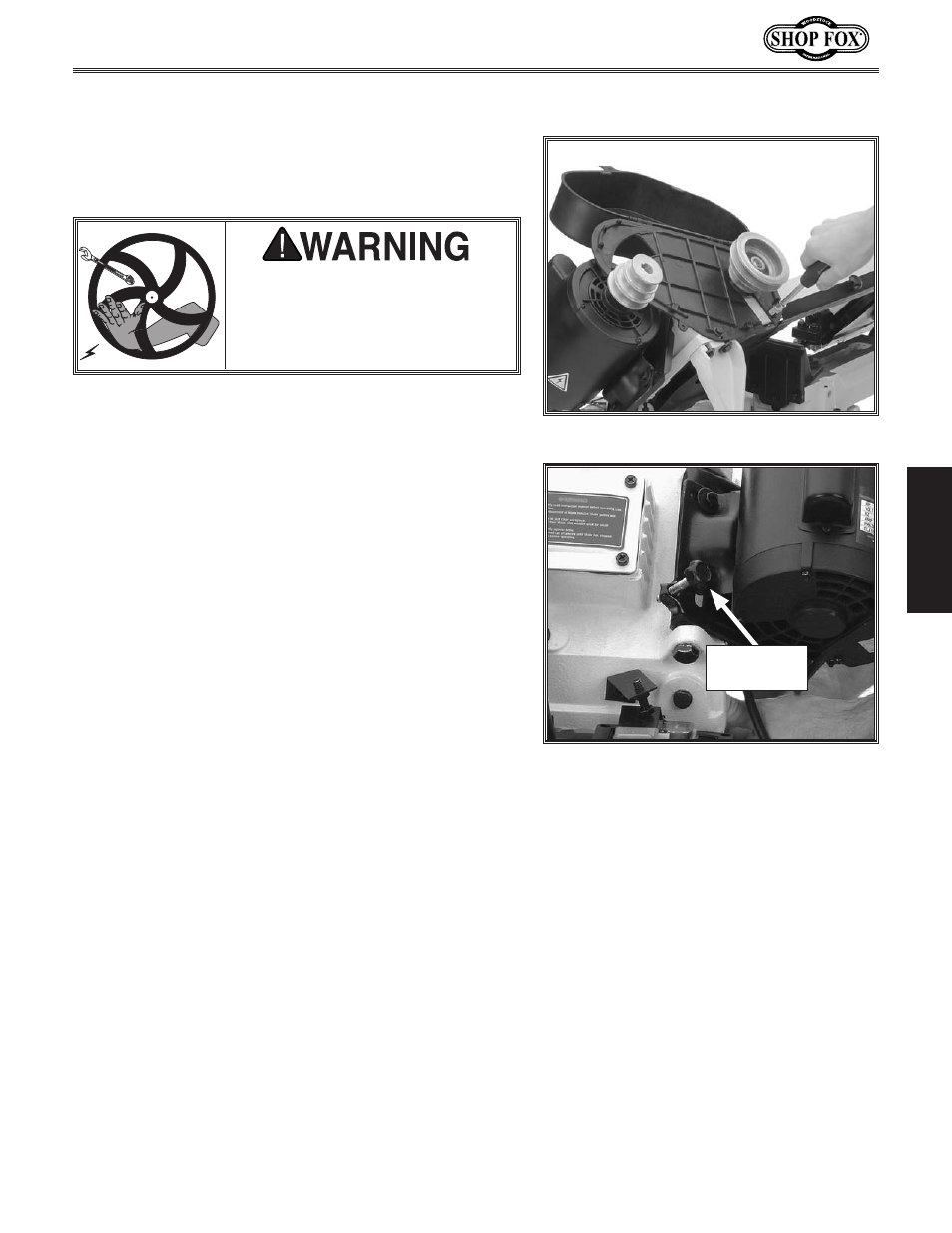

Figure 16. Positioning the pulley cover.
When opened, the pulley cover gives you access to change
the pulley ratio so the bandsaw can cut at one of three
speeds.
ENTANGLEMENT HAZARD!
MAKE SURE the bandsaw is
unplugged before proceeding!
Otherwise, severe injury may
occur.
To install the pulley cover, do these steps:
1. Position and rotate the pulley cover into place, as
shown in Figure 16.
2. Install the two 1 ⁄
4
"-20 x 1 ⁄
2
" hex bolts and washers to
secure the pulley cover.
3. Loosen the belt tension knob enough to install the
belt on the appropriate pulley that will give the
required blade speed. Refer to Blade Speed on Page
23 for blade speed selections.
4. Adjust the belt tension knob (Figure 17), so the
belt has approximately 1 ⁄
4
" deflection when pressed
in between the pulleys, then close and secure the
cover with the 1 ⁄
4
"-20 x 5 ⁄
8
" knob bolt and 1 ⁄
4
" flat
washer. Figure 17. Belt tension knob.
Belt Tension
Knob
