-9-
M1013 Owner's Manual (Mfg. Since 6/09)
EL
EC
TR
IC
A
L
DO NOT work on your electrical system
if you are unsure about electrical
codes and wiring! Seek assistance from
a qualified electrician. Ignoring this
warning can cause electrocution, fire,
or machine damage.
ELECTRICAL
We do not recommend using an extension cord; however,
if you have no alternative, use the following guidelines:
• Use a cord rated for Standard Service (S).
• Do not use an extension cord longer than 50 feet.
• Ensure that the cord has a ground wire and pin.
• Use the gauge size listed below as a minimum.
Extension Cords
110V/220V Operation
The Model M1013 is prewired for 110V operation. For 220V
operation, the motor must be re-wired as directed by
the wiring diagram on the inside of the motor junction
box cover. If this diagram is not available, use the wiring
diagram on Page 31.
The power supply circuit used for this machine MUST be
grounded and rated for the amperage given below. Never
replace a circuit breaker with one of higher amperage
without consulting a qualified electrician to ensure
compliance with wiring codes.
This machine must be grounded! The cord supplied with
this machine comes with a grounding wire. If your outlet
does not accommodate a ground pin, have it replaced by
a qualified electrician.
If you are unsure about the wiring codes in your area
or you plan to connect your machine to a shared cir-
cuit, you may create a fire or circuit overload hazard—
consult a qualified electrician to reduce this risk.
6-15P 6-15R

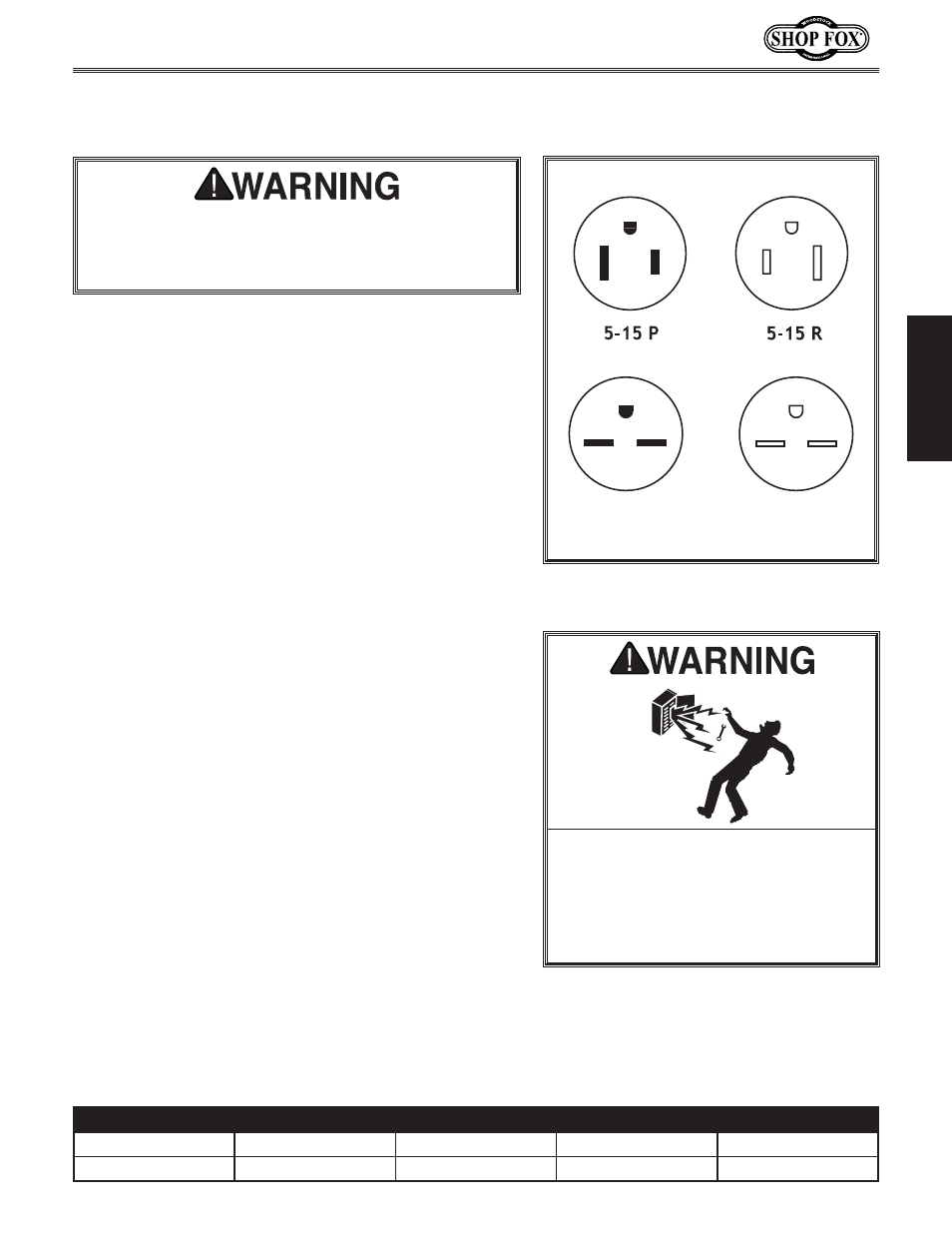

Figure 2. NEMA 5-15 and 6-15 plugs and
receptacles.
Operating Voltage Amp Draw Min. Circuit Size Recommended Plug Extension Cord
110V Operation 8 Amps 15A NEMA 5-15 (incl.) 14 Gauge
220V Operation 4 Amps 15A NEMA 6-15 (not incl.) 16 Gauge
Electrical Specifications
The machine must be properly set up before it is
safe to operate. DO NOT connect this machine to the
power source until instructed to do so in the "Test
Run" portion of this manual.
