Circuit Switch Communications
Rev 3.0B Feb.08
112

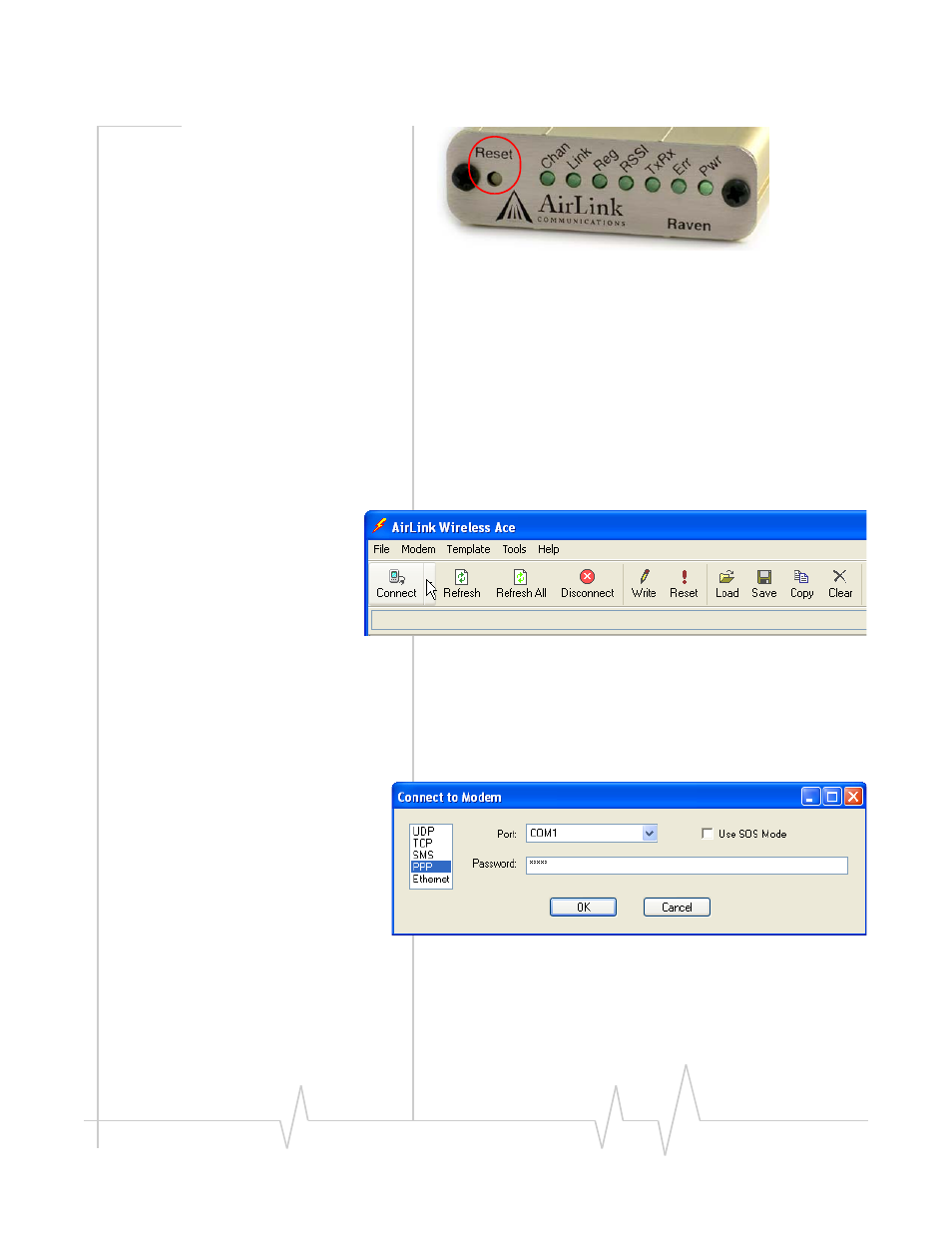

Figure 2-5: Raven: Reset button
e.
Click the Exit button in Modem Doctor when the
process is complete.
4. Activate the Raven
5. Start AceManager.
Start > All Programs > AirLink Communications > AceManager 3G
> AceManager 3G
a.
Click the Connect button.
Figure 2-6: AceManager
b.
Select PPP.
c.
Select COM1 for the Port.
d.
Enter 12345 for the Password.
e.
Click OK.
Figure 2-7: AceManager : Connect to Modem using PPP
6. Configure serial port speed.
a.
On the left, under the GROUPS heading, select Serial.
