Raven EDGE
111
20070914
2. Connect the modem to your computer
Using the RS232 cable, connect the modem to the computer
and apply power to the modem.
3. Erase the internal memory
The Raven should have the internal memory erased to bring
the modem to a known starting point without any configu‐
ration or account programming.
a.
Start Modem Doctor.
b.
Select Erase the modemʹs non‐volatile data.

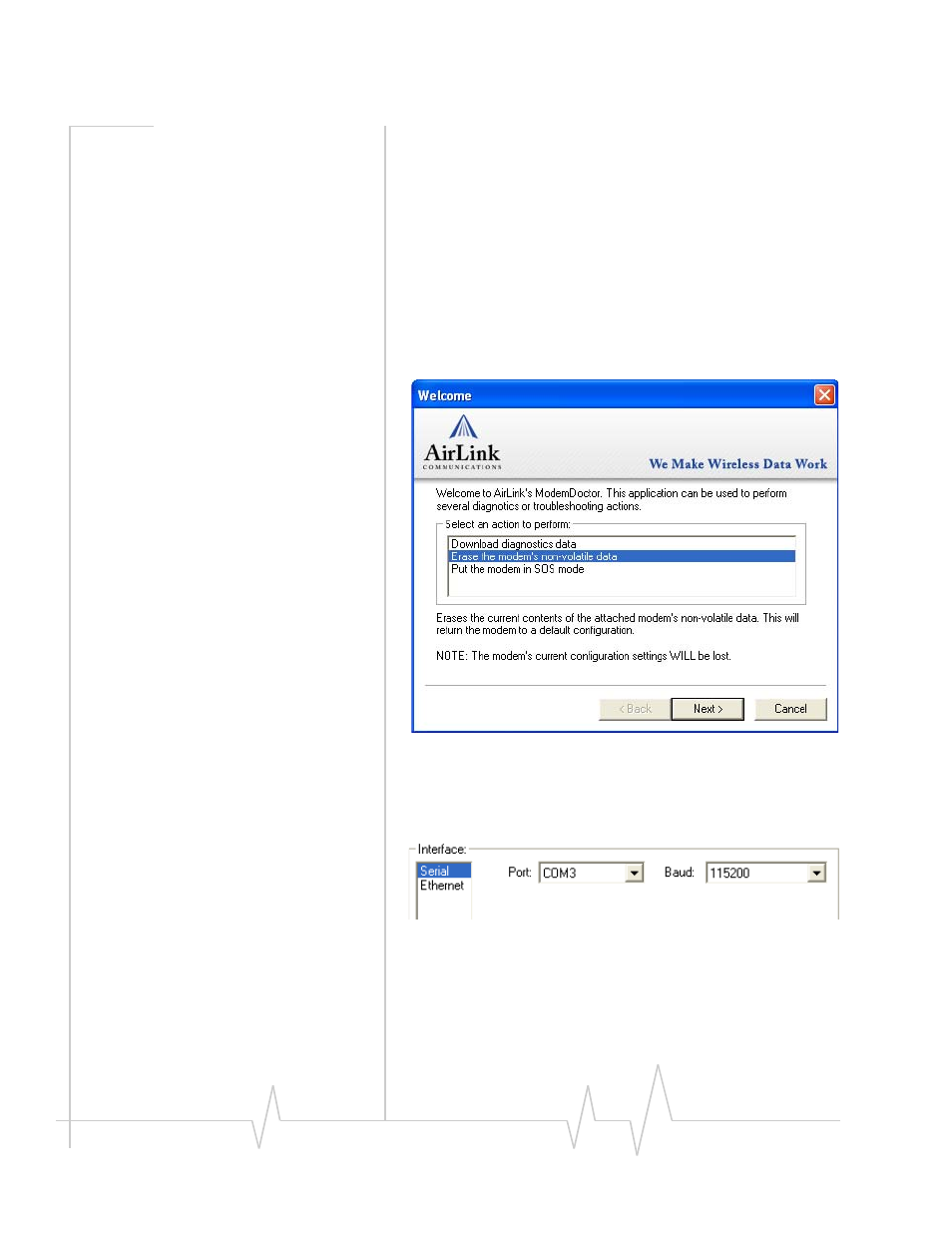

Figure 2-3: Modem Doctor
c.
Select Serial from the Interface options and select the
Port on your computer to which the Raven is
connected. Leave the Baud setting at 115200.
Figure 2-4: Modem Doctor: Interface
d.
Click the Next button and press the modem Reset
button when prompted. The modem Reset button is
located on the front panel of the modem and can be
accessed with the point of a pen or similar tool.
