Two-dimensional bar codes pdf417, Pdf417 – SATO XL400/410 User Manual
Page 158
158
SATO RISC Printers
4. Bar Code Specifications
Programming Manual
Two-Dimensional Bar Codes
PDF417
Command Structure:
aa:
Minimum module dimension (03-09 dots). Will not print
if values of 01, 02 or greater than 10 are specified.
bb:
Minimum module pitch dimension (04-24 dots). Will not
print if values of 01, 02, 03 or greater than 25 are spe-
cified.
c:
Security (error detection) Level (1-8).
dd:
Code words per line (01-30). If 00 is specified for both
dd and ee, the printer automatically optimizes the num-
ber of rows per symbol.
ee:
Rows per symbol (00 or 03-40). If 00 is specified for
both dd and ee, the printer automatically optimizes the
number of rows per symbol.
ffff:
Number of characters to be encoded (0001-2700).
nn...n:
Data to be printed.
Example:
Placement:
Immediately preceding data to be encoded
Default:
None
Function:
To print a PDF417 two-dimensional bar code image on a label.
Input:
PDF417

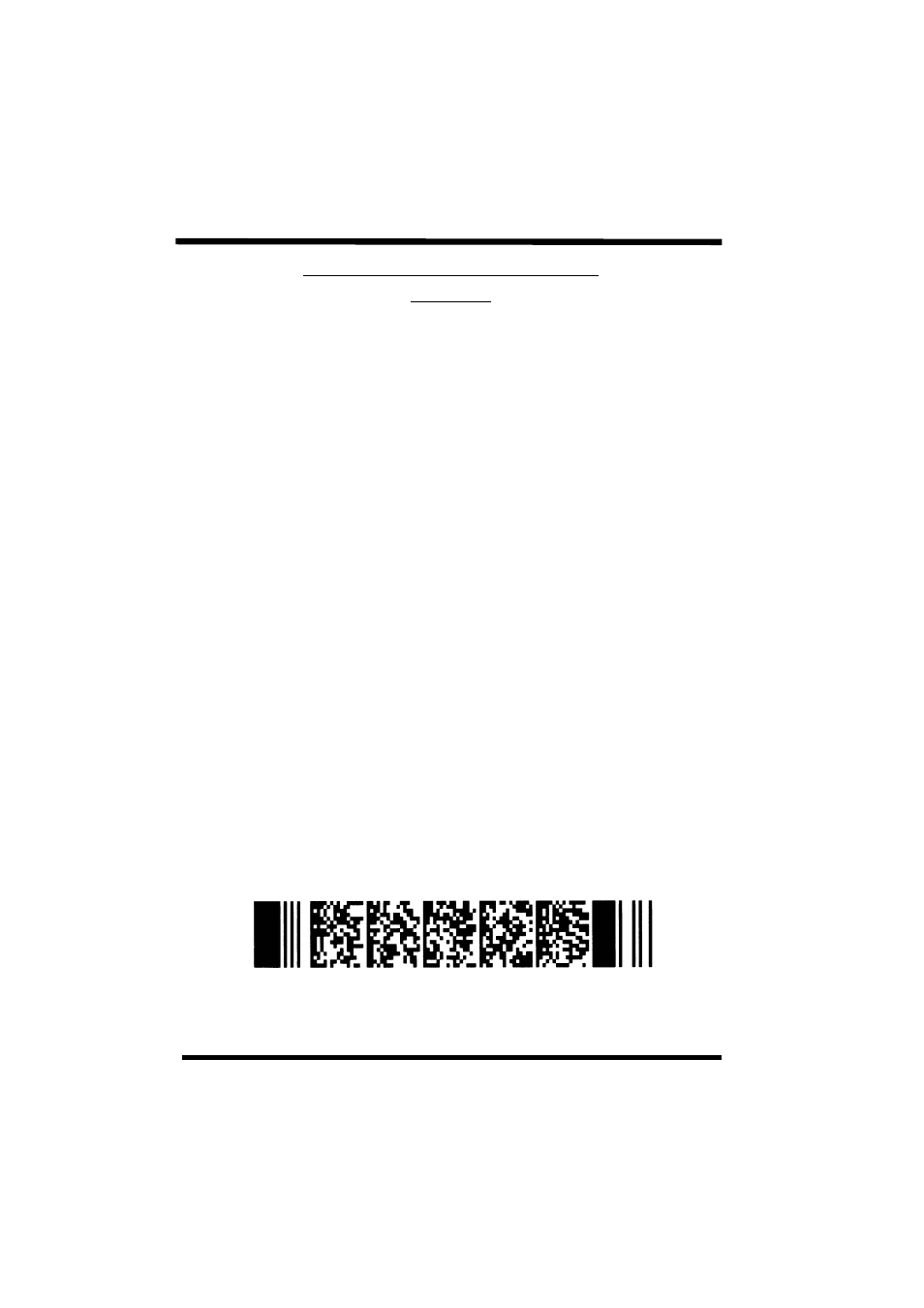

Output:
