Programming Manual
8. Custom Characters And Graphics
SATO RISC Printers
201
8.
Custom Characters And Graphics
8.1 Custom-designed Character Example
The following example is presented to help understand the use of the
Custom-Designed Characters command. It demonstrates the design and
printing of an “arrow” in a 16 x 16 matrix.
1. Determine which matrix size to use
•
16 dot x 16 dots
•
24 dots by 24 dots

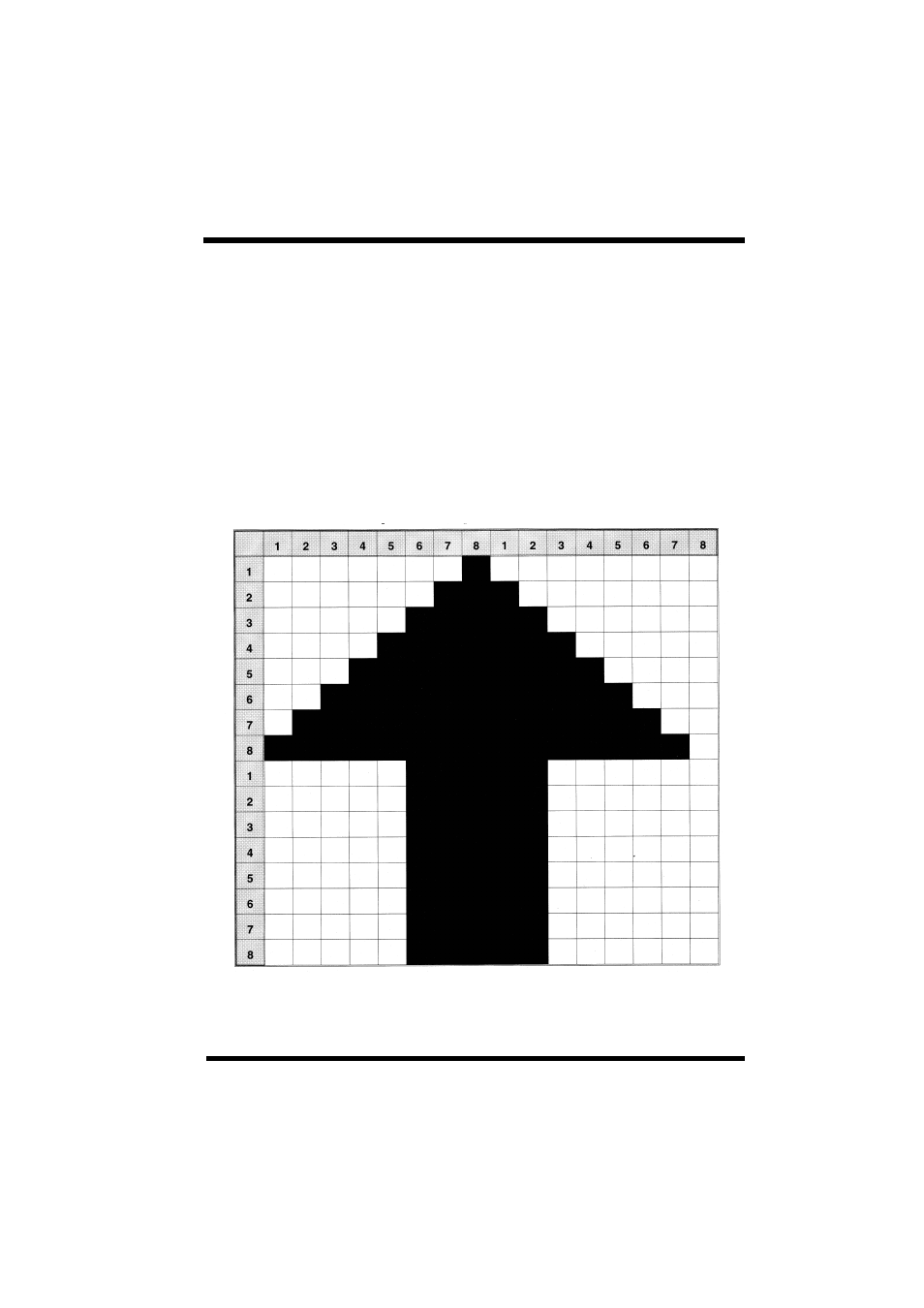

2. Lay out a grid and draw the image on the grid.
•
Each square represents one dot
•
Blacken squares for each printed dot
