SATO RISC Printers
4. Bar Code Specifications
Programming Manual
Input:
Note:
D3 provides guide bars that extend longer than the rest of
the bar code. BD3 provides guide bars and the human
readable text below the symbol.
Calculating the Mod 10 Check Digit:
If you wish to encode the UPC-A data “01234567890”, follow these
steps to find the correct check digit.
1.
First add all the numbers in the ODD positions.
i.e., 0+2+4+6+8+0 = 20
2.
Multiply the result of Step 1 by 3.
i.e., 20 x 3 = 60
3.
Add up all the numbers in the EVEN positions.
i.e., 1+3+5+7+9 = 25
4.
Add the result of Step 2 to that of Step 3.
i.e., 60 + 25 = 85
5.
Subtract the result of Step 4 from the next highest increment
of 10.
i.e., 90 - 85 = 5
6.
The correct Modulo 10 check digit for the 11 digit string
“01234567890” is 5.

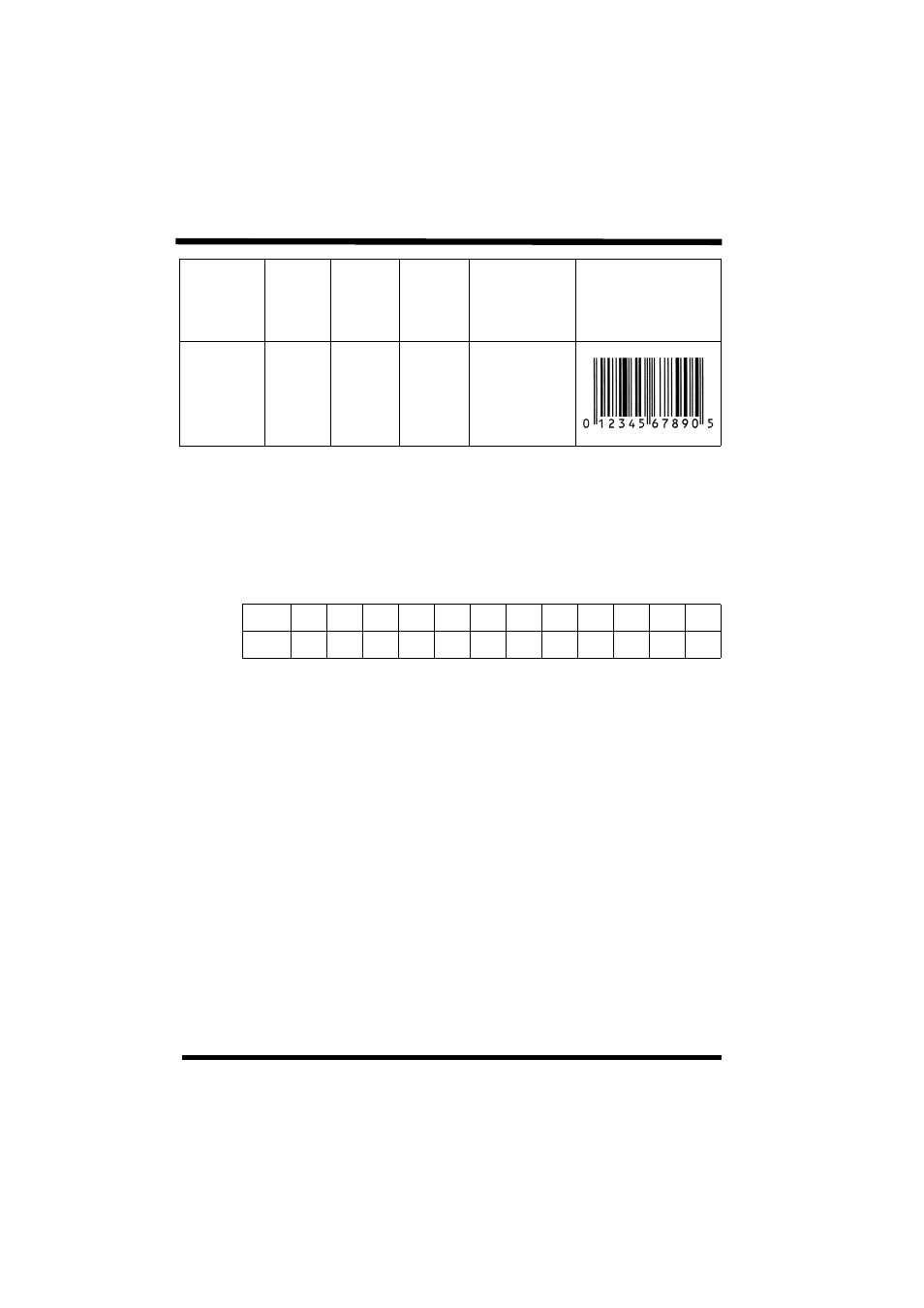

8 dot/mm
03
15.0
0.375
112%
ODD
0
2
4
6
8
0
EVEN
1
3
5
7
9
CD
Printer
Resolution
Value of
“bb”
Narrow
Bar
Width
(mils)
Narrow
Bar
Width
(mm)
Magnification
Factor
Example
output
(scaled 70%)
