SATO XL400/410 - Manual (Page 157)

Programming Manual 4. Bar Code Specifications
SATO RISC Printers 157
Two-Dimensional Bar Codes
Maxicode Vers. 3
Command Structure:
BVa,b,c,ddddddddd,eee,fff,DDD
a:
Symbol Number 1 - 8
b: Number Symbol 1 - 8
c: Mode 2: Structured Carrier Message
3: Structured Carrier Message
4: Standard Symbol
6: Reader Programming
ddd..d: Postal Code
ee...e: Country Code
fff: Service Class
DDD: Data Message (Do not enter Null Code!)
Function:
To print a Maxicode two-dimensional bar code image on a label.
Input:
AV0100H0100
BV1,1,2,152382802,840,001
[)>01951Z00004951UPSMAXICODE
06X610
UPSPA
Q1Z

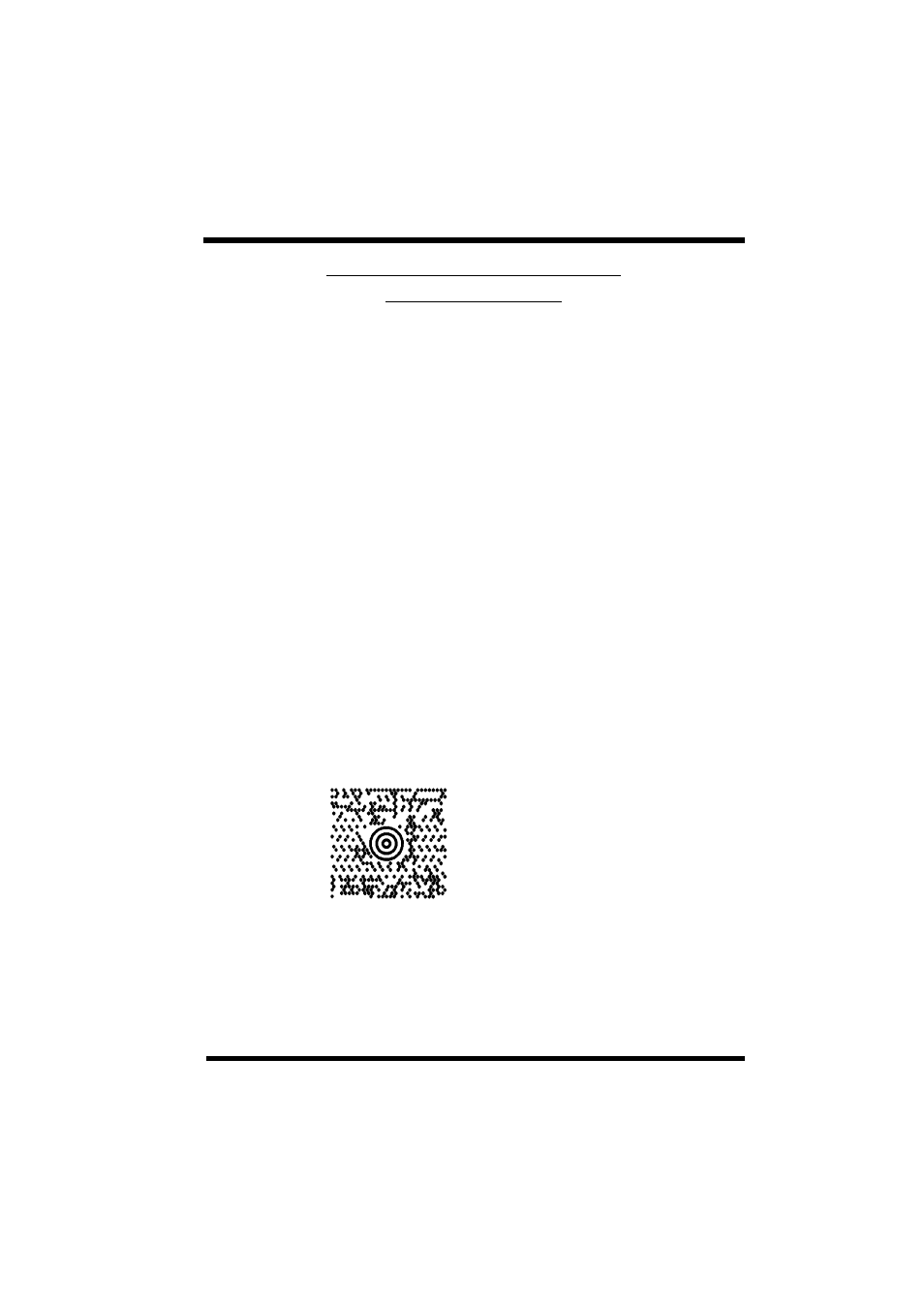

Output:
Note:
1. The Secondary Message field (ee...e) must contain exactly 84
characters. If a smaller message is specified, the field must be
padded with “exclamation point” character(s).
2. represents Hex 1E, represents Hex 1D, repre-
sents Hex 04, represents Hex 1B and represents Hex
20.
