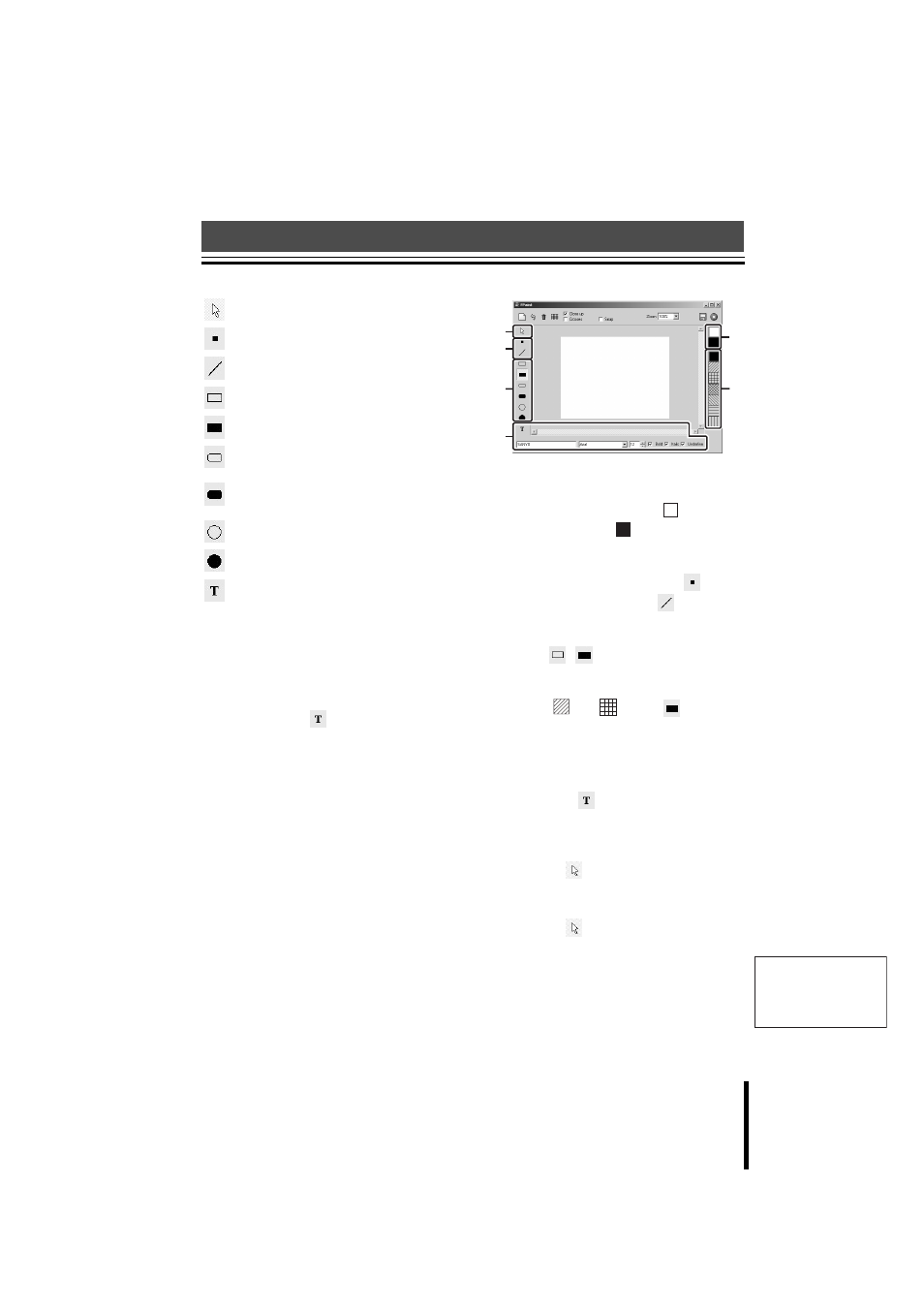

Graphics Environment Setup (Maps)
3 Drawing Tools
: Selects the item (cursor)
: Draws lines freehand
: Draws straight line
: Draws rectangle (outline only)
: Draws solid rectangle
: Draws rectangle with rounded corners
(outline only)
: Draws solid rectangle with rounded
corners
: Draws circle (outline only)
: Draws solid circle
: Specifies character insertion position
(Characters are input into the text input
area first)
4 Text input area
Sets characters, font, size, and
embellishments (Bold, Italic, Underline).
Characters are positioned in the area
specified using the cursor.
b b b b Basic Graphics
1 1 1 1 Select the color to use
To draw white lines, click “ ”. To draw
black lines, click “ ”.
2 2 2 2 Draw lines
To draw lines freehand, click “ ”. To
draw straight lines, click “ ”.
3 3 3 3 Draw shapes
Click , , or other buttons.
4 4 4 4 Fill shapes with patterns
Click “ ” or “ ”, then “ ” or other
buttons.
5 5 5 5 Draw characters
Input characters, select the font and size,
then click “ ”.
6 6 6 6 Move or delete shapes or lines
• Move:
Click “ ”, then select and move a
shape.
• Delete:
Click “ ”, then select and move a
shape to the Recycle Bin.
6
1
4
2
3
5
