Communication Lines and Number of
Connected Units
This unit can operate multiple hard disk digital recorders with a multiplexer function
connected to the rear video terminal (VIDEO), or multiple dome or zoom cameras
connected to the camera terminals (TELEMETRY A/B).
Address and terminate settings are required after connecting the equipment. See your
operating manuals for proper settings of the connected equipment.
b
b
b
b
Number of Connected Units
• Maximum connections with this unit: 5 units (Address 0 to 4)
• Maximum connections of this unit with video terminal (hard disk digital recorders, multiplexers):
100 units (Address 1 to 100)
• Maximum connections of this unit with camera terminal (dome cameras, zoom cameras):
127 units (Address 1 to 127)
• Maximum number of connections within system: 256 units
Note: Connections between communication conversion connectors can be checked before using a
communication line.
See “Communications Setup”, “3–SERIAL TESTS” in System Setup. (P46)
b
b
b
b
Terminate settings
This unit is equipped with camera A/B communication terminals and a video communication
terminal. When performing communication operations, connecting multiple models to the same loop
from each communication terminal will cause the data to reflect at both ends, affecting other data
and preventing proper data transmission to each piece of equipment.
Terminate settings refer to enabling proper communication by turning ON the terminate switch
provided on equipment connected at both ends of multiple connected units, and turning OFF the
terminate switch on the connected units in between.

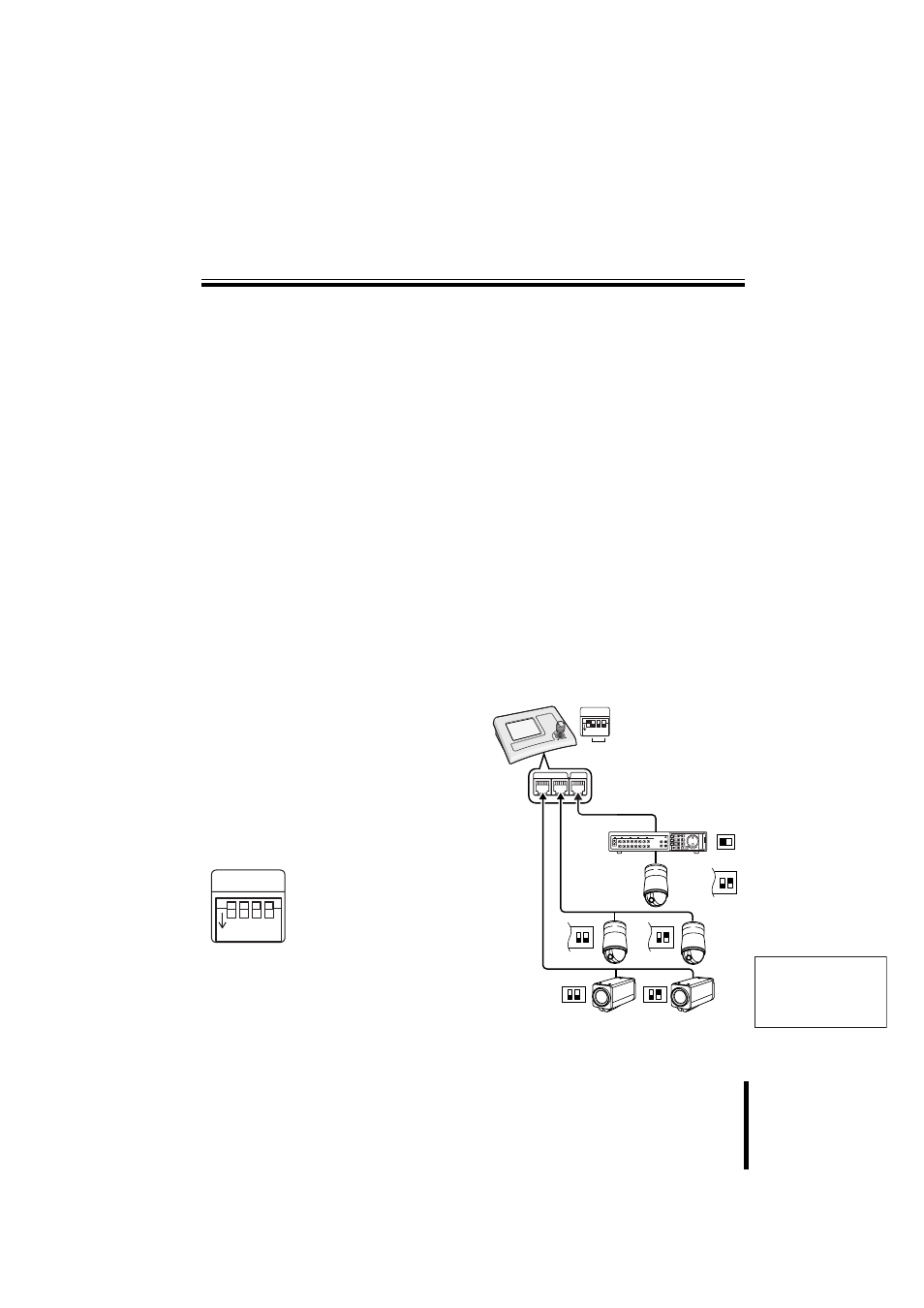

Dipswitches (SW) 2 to 4 on the rear panel are
the terminate setting switches.
• SW1: For selecting PC software operation
or normal operation
• SW2: For terminate setting on camera
communication terminal A
• SW3: For terminate setting on camera
communication terminal B
• SW4: For terminate setting for video
communication terminal
SW
ON
1 2 3 4
VIDEO
A
B
TELEMETRY
SW
ON
1 2 3 4
ON
OFF
OFF
ON
OFF
ON
ON
CARD
CARD
MENU
RESET
EJECT
(Sample Settings)
