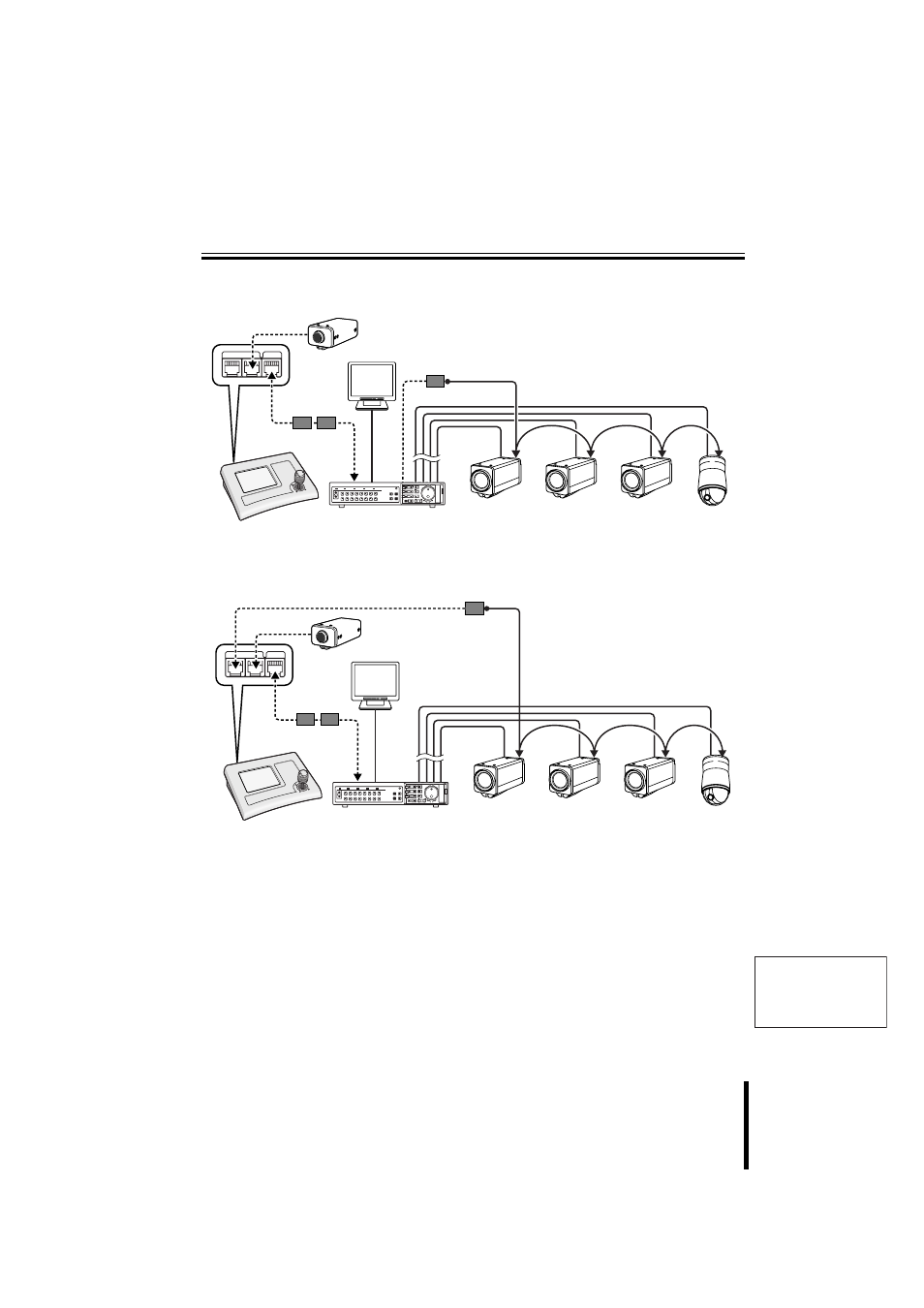

Sample System Connection
D When connected to video communication terminal (VIDEO)
and camera communication terminal (TELEMETRY B)
P24
E When connected to video communication terminal (VIDEO)
and camera communication terminals (TELEMETRY A/B)
P27
CARD CARD
MENU RESET EJECT
B
VIDEO A B TELEMETRY
Modular
cable
(Competitor camera)
Monitor
A/B
RS485 A Terminal
Coaxial cable
Zoom
camera
Zoom
camera
Zoom
camera
Dome
camera
Conversion
connector
CARD CARD
MENU RESET EJECT
VIDEO A B TELEMETRY
Modular
cable
(Competitor
camera)
Monitor
A/B
RS485 A Terminal
Coaxial cable
Zoom
camera
Zoom
camera
Zoom
camera
Dome
camera
Conversion
connector
