Preparation 12
System Information

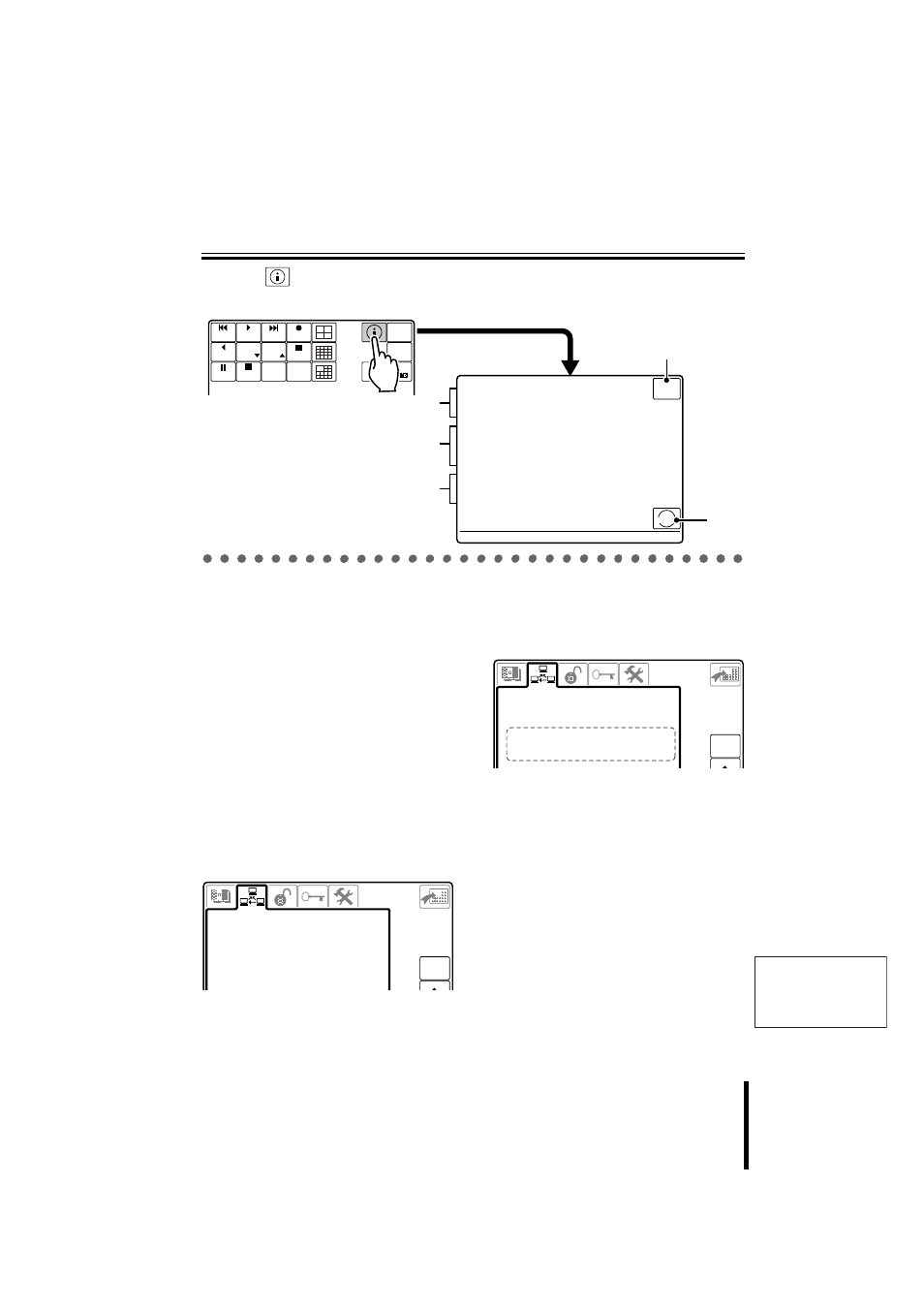

Press the button to display the current initial settings information for this unit. These
settings change when communication line settings have been changed in System Setup.
1 Status of selected equipment
(UNDER SELECTION)
• Present camera (00001)
Currently selected camera channel
• Camera address (00001)
Currently selected camera address
• Monitor/Unit (00001)
Currently selected video equipment (DVR/
MUX) address
• A/B/V line (V)
Currently selected line (displayed line sends
command to camera)
2 Communication status for
video equipment or camera
(TELEMETRY)
Displays the communication settings set in
“2–TELEMETRY”. (P45)
3 Communication status for
video equipment (VIDEO)
Displays the communication settings set in
“1–VIDEO” and the address for this unit. (P44)
• Address for this unit (Keyboard Add): 00001
(P44)
4 Returns to Main Menu.
5 Displays system installer
information.
esc
i
SERVICE
G E N E R A L I N F O R M A T I O N
U N D E R S E L E C T I O N
P r e s e n t c a m e r a . . . . . . . : 0 0 0 0 1
C a m e r a a d d r e s s . . . . . . . : 0 0 0 0 1
M o n i t o r / U n i t . . . . . . . . . : 0 0 0 0 1
A / B / V l i n e . . . . . . . . . . . : V
T E L E M E T R Y
C o n n e c t o r . . . . . . . . . ( A ) : V i d e o
P r o t o c o l . . . . . . . . . . ( A ) : S A N Y O S S P
B a u d r a t e . . . . . . . . . . ( A ) : - - - - -
C o n n e c t o r . . . . . . . . . ( B ) : T e l e m e t r y
P r o t o c o l . . . . . . . . . . ( B ) : - - - - - - - - - -
B a u d r a t e . . . . . . . . . . ( B ) : - - - - -
V I D E O
T y p e . . . . . . . . . . . . . . . . . : D V R / M U X
P r o t o c o l . . . . . . . . . . . . . : S A N Y O D V R / M U
B a u d r a t e . . . . . . . . . . . . . : 1 9 2 0 0
K e y b o a r d a d d r e s s . . . . . : 0 0 0 0 1
F i r m w a r e v e r s i o n . . . . . :
C A M 1 D V R 1
ALARM PLAY
R PLAY
REC ALARM
PLAY STOP
PLAY
SPEED REC STOP
SYSTEM
SETUP
MAP
ENTER
PLAY
SPEED
ADDRESS ? DVR
STILL
TIMER
ON/OFF
CLOCK
ADJUST
4
1
3
2
5
esc
2 - T E L E M E T R Y 2 - T E L E M E T R Y
> A - C o n n e c t o r V i d e o
A - P r o t o c o l S A N Y O S S P
A - B a u d r a t e - - - - -
B - C o n n e c t o r T e l e m e t r y
B - P r o t o c o l - - - - - - - - - -
B - B a u d r a t e - - - - -
C O M M U N I C A T I O N S
esc
1 - V I D E O 1 - V I D E O
> T y p e : D V R / M U X
P r o t o c o l : S A N Y O D V R / M U
B a u d r a t e : 1 9 2 0 0
K e y b o a r d A d d : 0 0 0 0 1
C O M M U N I C A T I O N S
