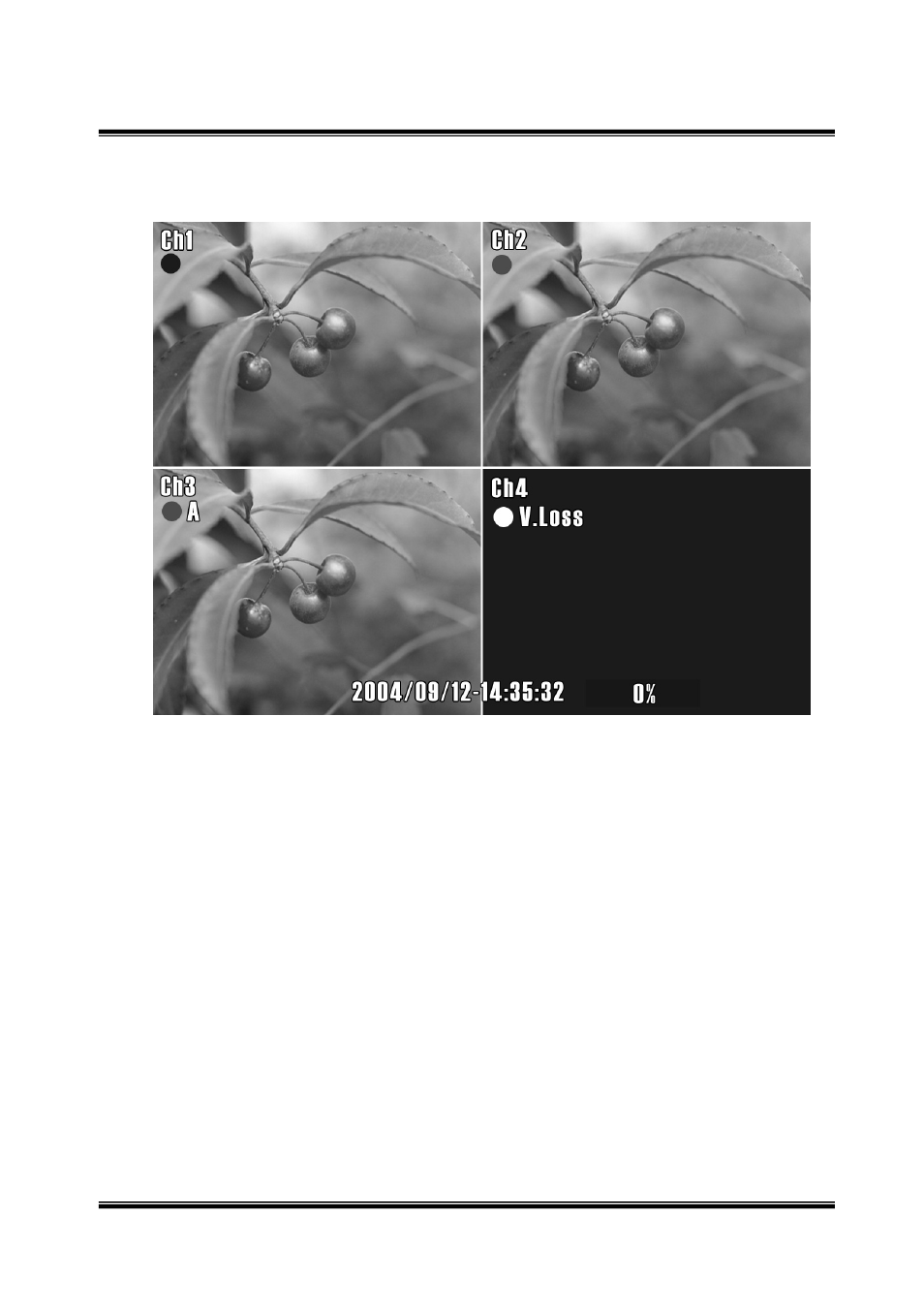

5.8 Monitor Display
1) RED : Camera is Recording. (Always recording)
2) RED(A) : Camera is Event recording by motion detection or alarm input.
3) BLUE : DVR is on monitoring. (No recording, just for monitoring)
4) WHITE : No input signal.
● Recording Status ( According to color )
● Playback Status (According to color)
・Not display on divided screen mode.
1) RED : Replaying the image that was recorded as always recording.
2) RED(A) : Replaying the image that was recorded as alarm/ motion recording.
