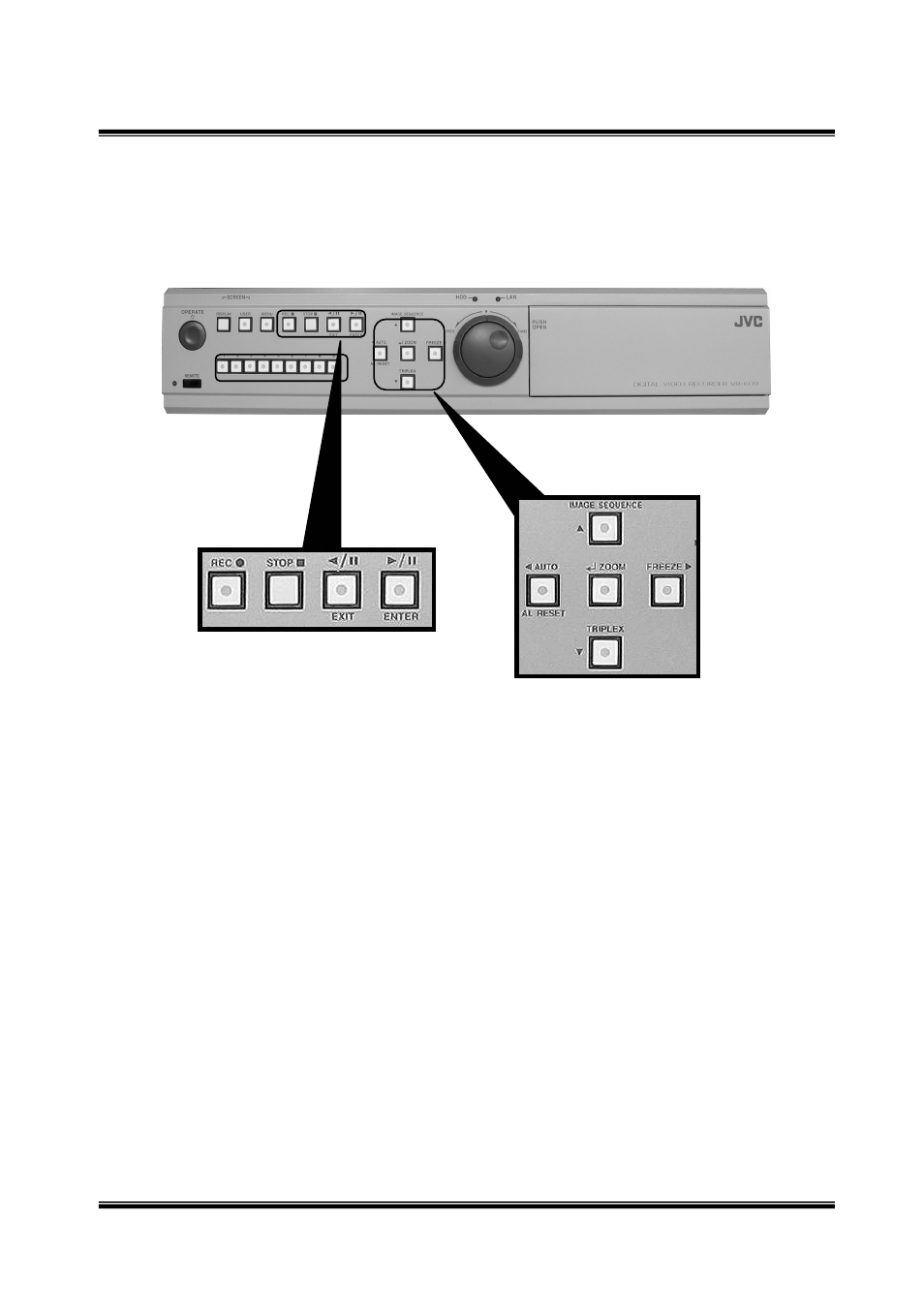

2.4 Part Names and Description

■ Front

① Operate Switch :

・Operate ON/OFF switch. Operate on/off by pressing this button for about 5

seconds. During system starting, it is displayed "9 CH Digital Video Recorder"
and "Preparing system. Please wait a moment." -> " Waiting to detect 1394
HDD...". Please wait for a while to starting. (→P.35)

② Channel Selection Buttons (CH1 – CH9) :

・These buttons are used to select the screen monitors and to change the

channel settings at the menu etc. (→P.35)

③ AUTO Button :

・The input channel is automatically switched in proportion to the speed setting at

the menu.

ALARM RESET Button :

・This button is to stop the alarm out.

◀ (left) Button :

・Menu Navigation Button. Moves cursor to the left. (→P.35)

③

④

⑥

⑤

⑦

⑪
