-- 23 --

VR-609

3. Explanation and Application

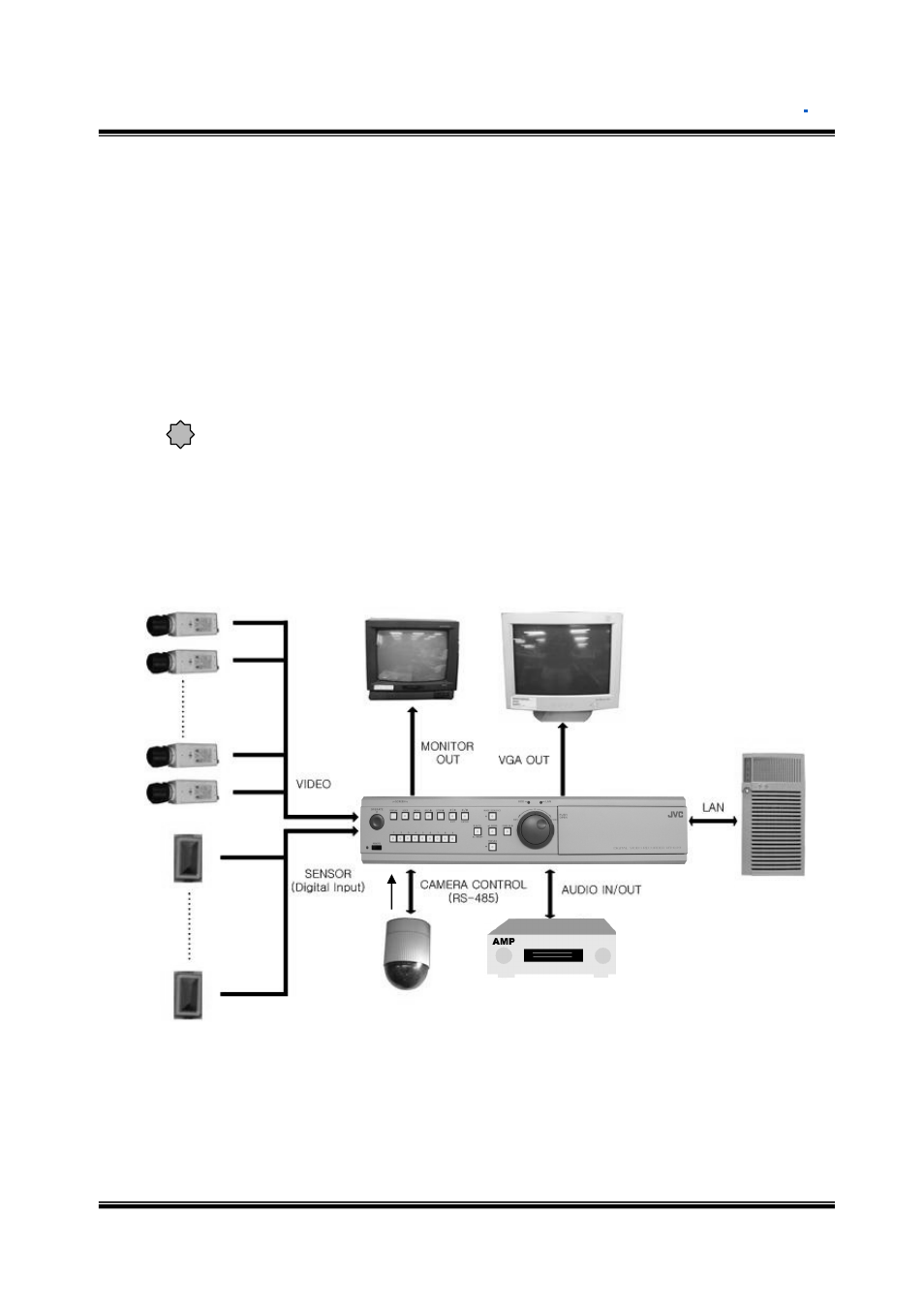

3.1 Basic Schematic of the DVR System

3.1.1 Basic Schematic

・Connect AC 120V, 50Hz / 60Hz using the provided power cord. (VR-609U)
・Connect AC 220V - 240V, 50Hz / 60Hz using the provided power cord.

(VR-609E)

*1 A monitor and a VGA monitor are not simultaneously connectable. For using a

VGA monitor, a setup is required. (Please refer to 5.7.6 Video Output (P.75)
for more details.)

・This system can record up to 9 composite video signals.
・Ability to check multiple screens during playback by using monitors & VGA units.
・It supports screen search, monitor, and remote control through the Network.

In this Instructions, Digital Video Recorder is written as "DVR".

Video

Input
