VR-609
RS-485
（SIMPLEX）
RS-485
（SIMPLEX）
Camera
Video Signal
Monitor
Junction
BOX
Power Supply
DC12V
1 2 3
4 5 6
7 8 9
CLR 0 ENT
CTRL CAM DVR
I.SEQ TRIPLEX
STOP
VGA FREEZE
REC MENU
MENU AUTO AUTO F1
A.SEQ
EXIT SET
ALARM ZOOM
PAN PATROL HOME GLB
SAVE L.L R.L
SPEED
POSI TION

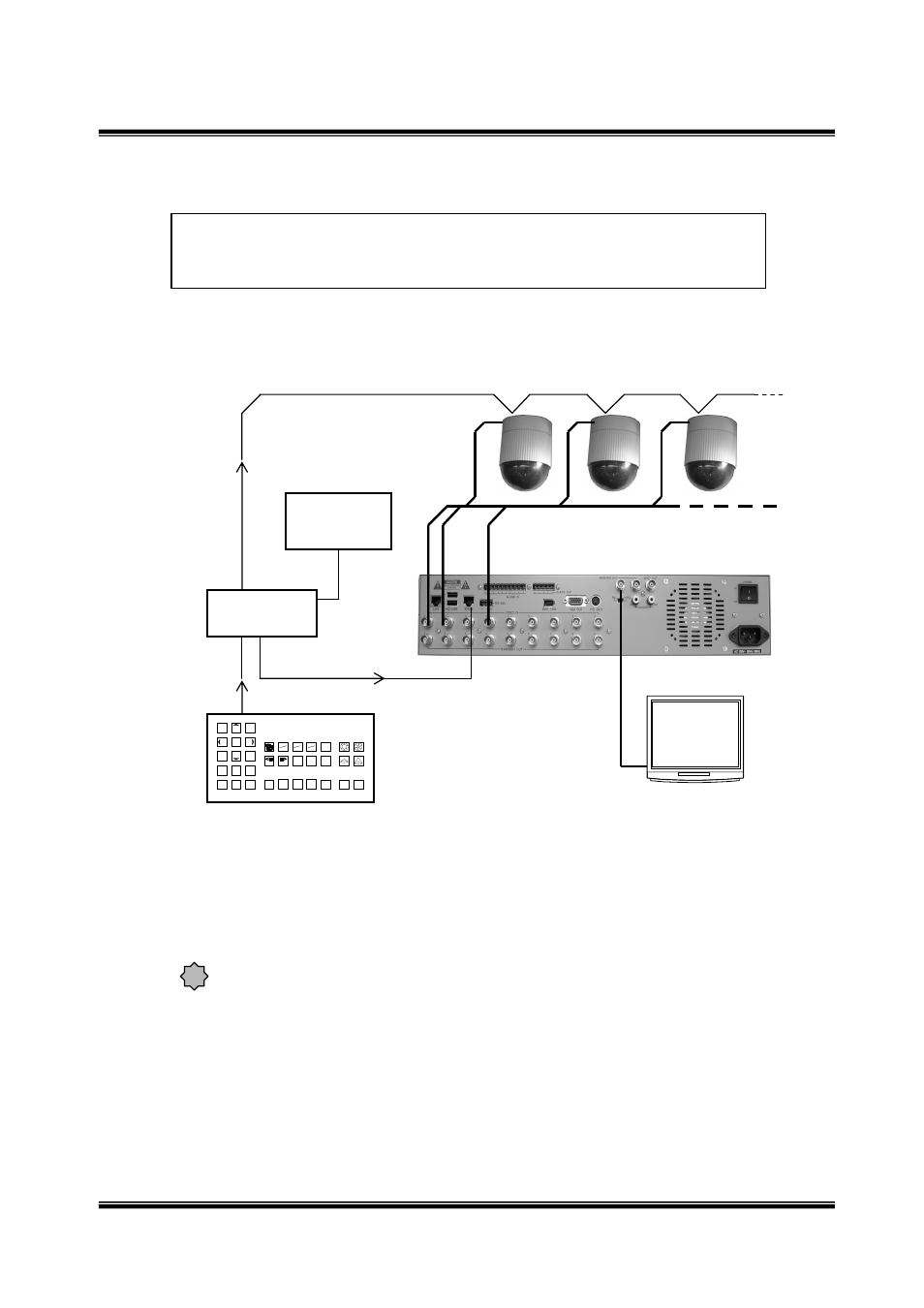

3.3.3 Connection of External Remote Controllers
VR-609
Remote Controller
・Operation of VR-609 is possible via an external remote controller.
・Configuration of camera settings as well as operation of camera are
possible via an external remote controller.
! Operation of camera from the VR-609 unit will be disabled when an external
remote controller is connected.
・Connect the RS-485 signal wire from the junction box to the "REMOTE" terminal.
・Connection of up to 9 cameras is possible. Specify camera ID setting between 1
- 9.
・Connect the video signal wire of each camera to the VIDEO IN terminal that is of
the same number as the specified camera ID (1 - 9).
・Configure ID for VR-609. (See 5.7.7.8 Remote Control Setup)
・Turn OFF the power of all equipment before performing configuration.
・When connecting devices other than VR-609, ensure to do so upon reading
through the instruction manual of the device in question.
・VR-609 allows connection of external remote controllers.
About external remote controllers
Please consult your nearest JVC dealer about the model of the connectable
external remote controllers.
