3.3 Pan/Tilt Camera Connection and Control

It is possible to control the Pan/Tilt camera.
The Pan/Tilt camera supports RS-485 and is given an ID for parallel connection.
Easy to install from the menu screen and possible to control by using the Jog Shuttle.

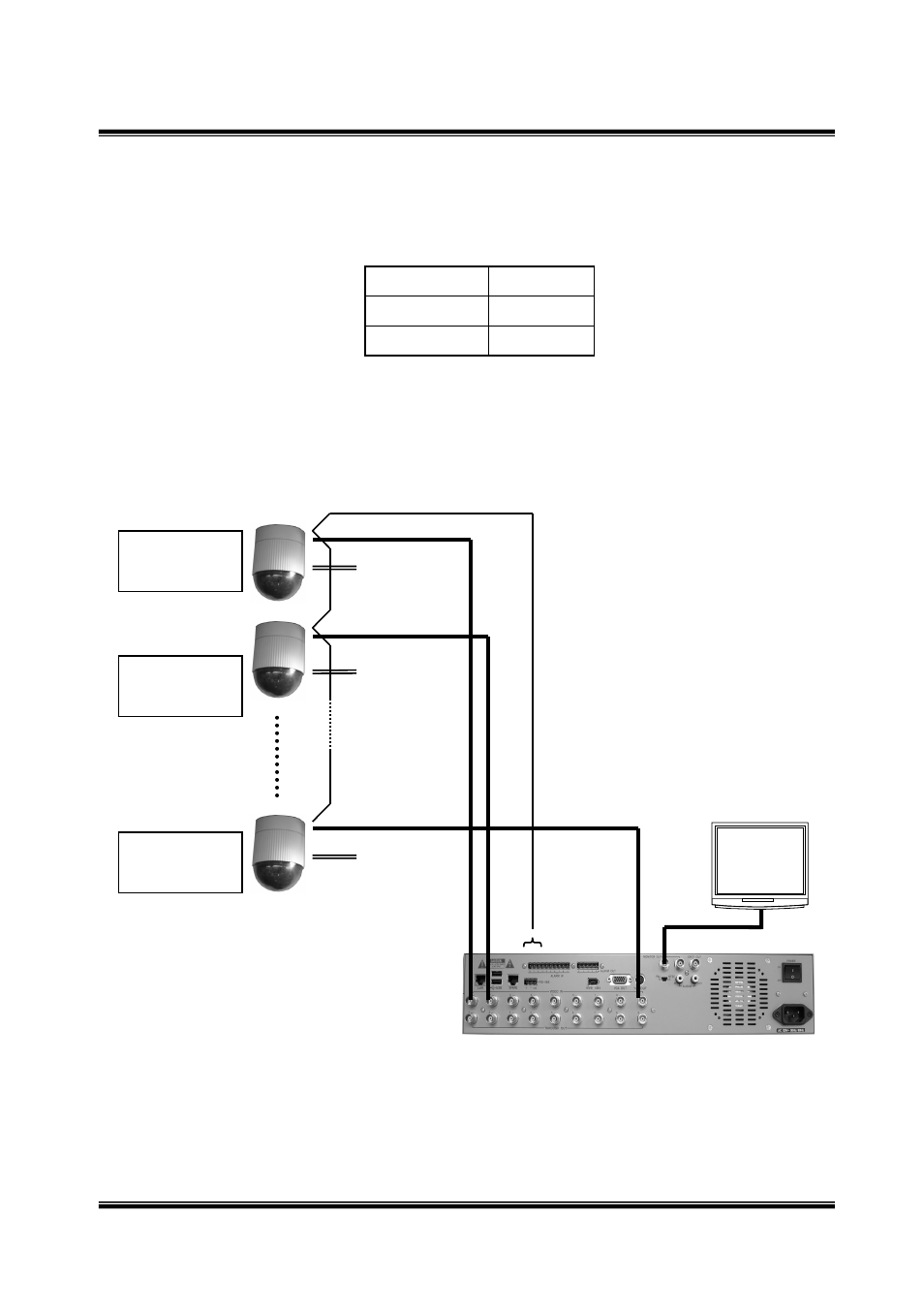

3.3.1 The example of connection with TK-C676 or TK-C655

Linked with a power connection, control terminal connection, and video signal output
connection. The following figure is the example of connection with 9 sets of TK-C676 or
TK-C655.

・Camera power connection.
・Control terminal connection (RS-485) : Please use a twisted-pair cable. Connect a

+terminal (TX+) / -terminal (TX-) of this equipment to the RX+ / RX-terminal of a
Pan/Tilt camera. The camera connected at the end should set-up a terminus
(Switch8 : ON).

・Video signal connection (Composite)

Coaxial cable

Control signal cable

AC 24 V
power supply

TK-C676 or
TK-C655

DVR VR-609

MACHINE ID : 1
Switch 8 : OFF
(RX TERM)

Monitor

MACHINE ID : 2
Switch 8 : OFF
(RX TERM)

MACHINE ID : 9
Switch 8 : ON
(RX TERM)

AC 24 V
power supply

TK-C676 or
TK-C655

Recommended Cameras:

TK-C676

JVC

TK-C655

Model

JVC

Manufacturer
