VR-609
3.3.2 Setting values of TK-C676 or TK-C655
RS-485 Connector
Camera1
CONTROL Connector
VR-609

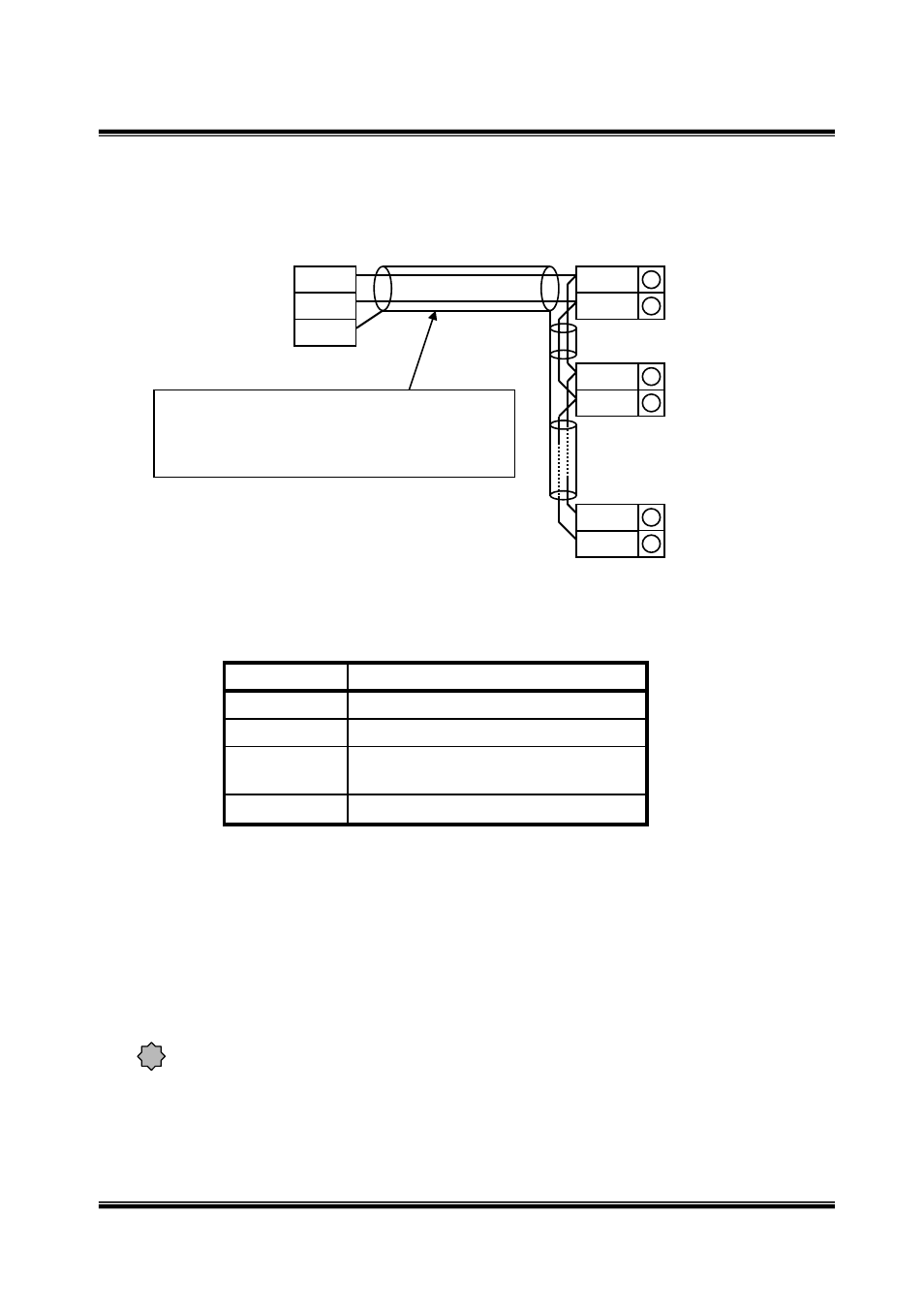

■ Connection of RS-485 Control signal cable
Camera2
CONTROL Connector
Camera9
CONTROL Connector
If there are OFF/ON of a camera power supply when not performing a home position
setup, camera angle will return to the factory setting.
Home position : the camera angle that is set to after power on.
(Without setting home position, the camera angle is set to factory setting after power
on.)
!
Terminal camera is set to ON.
Other cameras are set to OFF.
Switch 8
ON Switch 5
Install ID value independently. ID
ON Switch 4
Value Item
RX-
RX+ +
-
RX-
RX+
RX-
RX+
GND
When you install in a place with many noises,
please use a twisted-pair cable with a shield.
A shield cable should be connected to a GND
terminal.
D
C
D
C
D
C
・The functions can be used by this equipment are PAN/TILT/ZOOM/FOCUS/AUTO
FOCUS. (A setup of a home position, a preset position, etc. cannot be performed)
In addition, in order to perform a home position setup and a camera image setup in
advance, it is possible to use and set-up by remote controller of RM-P2580 grade.
Please read the Instructions of RM-P2580.
・About setting values of VR-609, please refer to 5.1.2 Camera details (P.42) and
5.1.3 Pan/Tilt Model Select (P.45).
