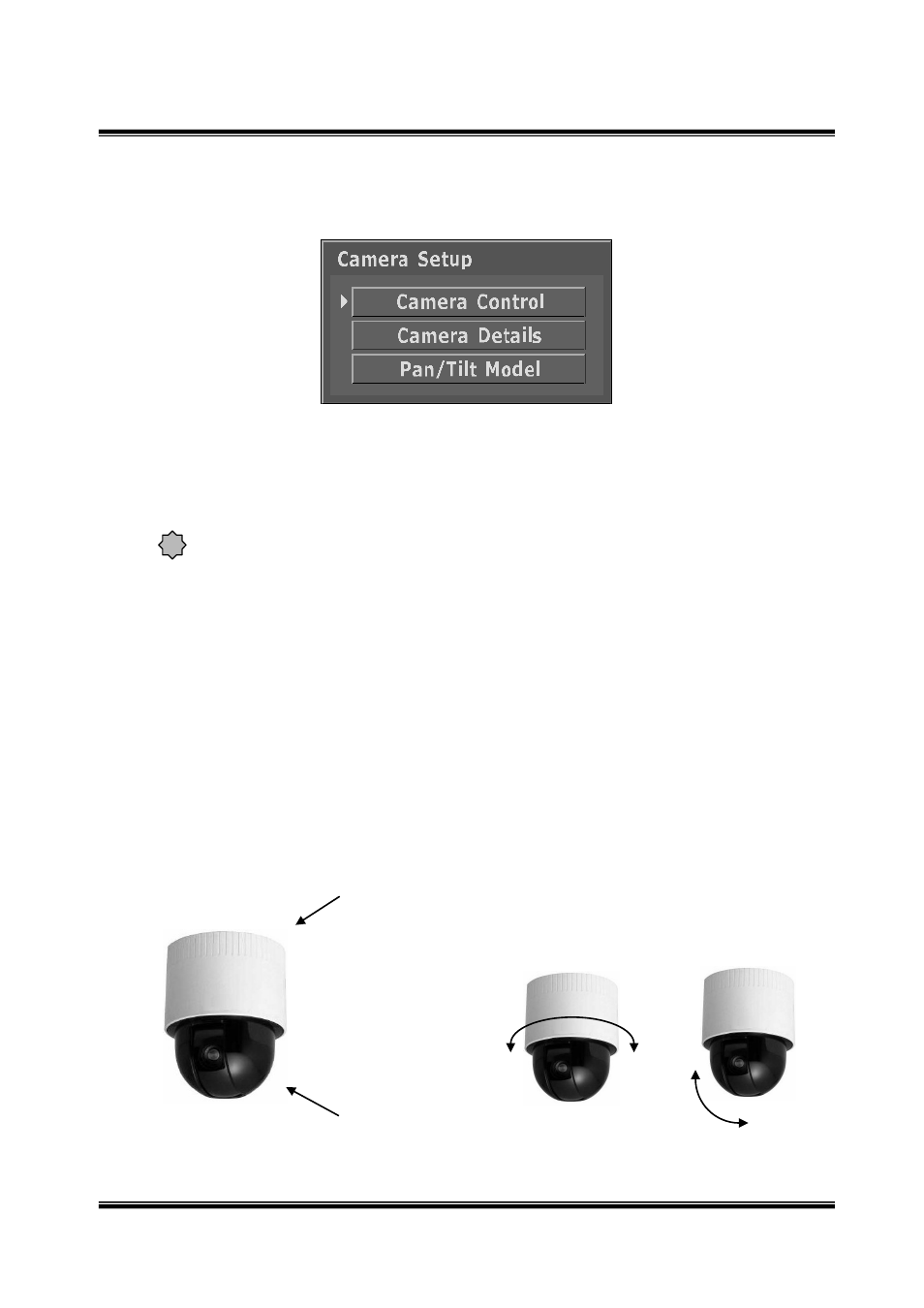

5.1 Camera Setup
5.1.1 Camera Control
・RS-485 enables long distance transfer.
・Possible to connect in daisy-chain style.
System Configuration
Ex.）You can construct the system by VR-609 1unit, TK-S576B 5 units, and TK-S655
4 units.
5.1.1.1 Pan/Tilt Camera
Camera
Camera ID Setup
Examples of Camera Rotation
Pan
Tilt
It is possible to set-up image which will connect at input port and able to set-up Pan/Tilt
camera which will connect with RS-485.
A camera title and image adjustment can be set-up to all channels regardless of
a Pan/ Tilt camera.
!
