Edit To Or From
Another Recorder
You can use your unit as the source player or as the
recording deck.
A

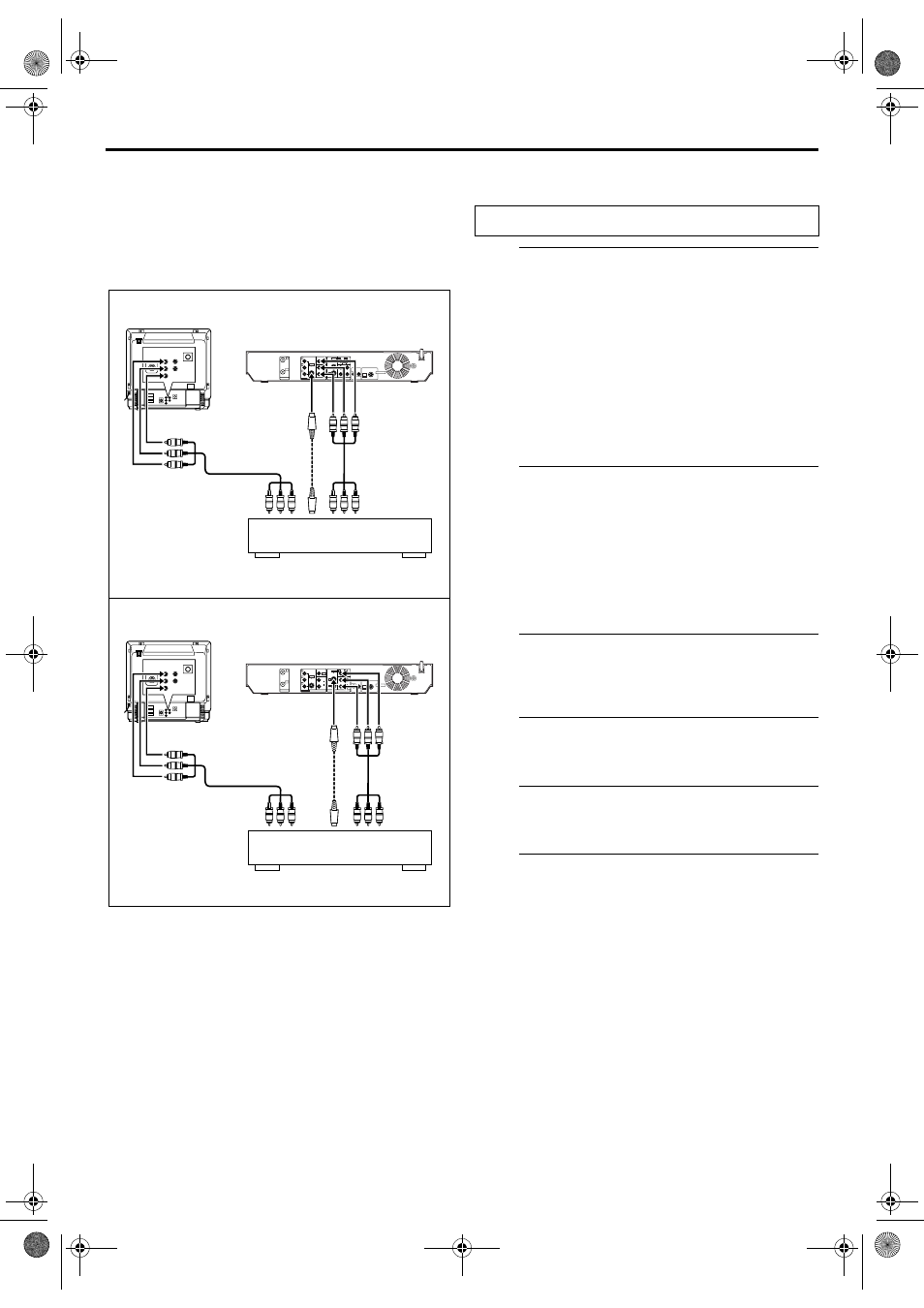

Make connections.
A When using your unit as the source player ...
... connect its AUDIO/VIDEO or AUDIO/S-VIDEO
OUTPUT connectors to the audio/video or audio/S-video
input connectors on another recorder.
B When using your unit as the recording deck ...
... connect its AUDIO/VIDEO or AUDIO/S-VIDEO
INPUT connectors to the audio/video or audio/S-video
output connectors on another recorder.
● If connecting a unit with an S-VIDEO input/output connector,
it is recommended to use an optional S-Video cable to
minimize picture degradation while editing.
B
Set the input mode of recording deck.
With this video unit, press CH +/– to select “L-1” or “L-2”
depending on the connectors being used.
● When using S VIDEO connector, set “REAR AUX L-1” or
“REAR AUX L-2” to “S-VIDEO”. (
● When using VIDEO connector, set “REAR AUX L-1” or “REAR
AUX L-2” to “VIDEO”. (
● When using another recorder as the recording deck, refer to its
instruction manual.
C
Set the recording speed.
Press REC MODE repeatedly until the desired recording
speed appears.
D
Start the source player.
Engage the Play mode of the source player.
E
Start the recording deck.
Engage the Record mode of the recording deck.
F
Stop dubbing.
Stop recording on the recording deck, then stop playback
on the source player.
NOTES:
● All necessary cables can be obtained from your dealer.
● When you use this unit as the source player for editing, be sure
to set “SUPERIMPOSE” to “OFF” before starting. (
1
1
PCM STREAM
AV COMPU LINK
CABLE BOX
LEFT
AUDIO
RIGHT
LEFT
VIDEO
S-VIDEO
VIDEO
S-VIDEO
L-1
L-1
L-2
L-2
AUDIO
RIGHT
COMPONENT
COAXIAL
OPTICAL
Y
PB
PR
DIGITAL OUT
OUTPUT
INPUT
IN
OUT
ANTENNA
PCM STREAM
AV COMPU LINK
CABLE BOX
LEFT
AUDIO
RIGHT
LEFT
VIDEO
S-VIDEO
VIDEO
S-VIDEO
L-1
L-1
L-2
L-2
AUDIO
RIGHT
COMPONENT
COAXIAL
OPTICAL
Y
PB
PR
DIGITAL OUT
OUTPUT
INPUT
IN
OUT
ANTENNA
B
AV mode
Audio/video
cable
Recorder
Your unit
Another recorder
Player
TV receiver
AV mode
TV receiver
Another recorder
Player
Your unit
Recorder
Audio/video
cable
Audio/video
cable
S-Video cable
S-Video cable
A
Slide the TV/CABLE/DBS/DVD switch to DVD.
