EDITING (cont.)
Edit From A
Camcorder
You can use a camcorder as the source player and your
unit as the recording deck.

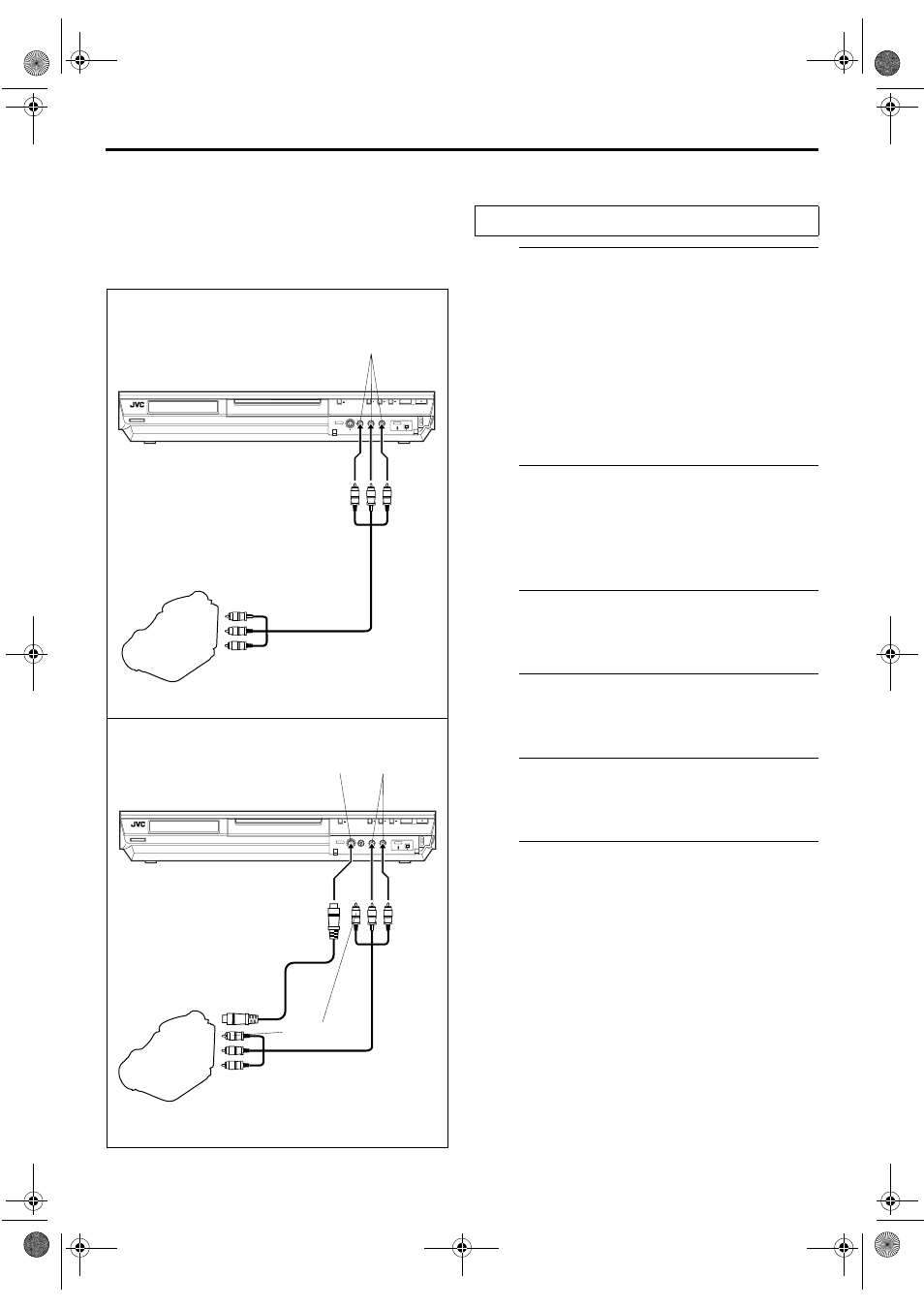

A
Make connections.
A If the camcorder has no S-VIDEO output connector:
— connect the camcorder’s AUDIO OUTPUT and
VIDEO OUT connectors to the unit’s AUDIO and
VIDEO input connectors on the front panel.
B If the camcorder has an S-VIDEO output connector:
— connect the camcorder’s AUDIO OUTPUT and
S-VIDEO OUT connectors to the unit’s AUDIO and
S-VIDEO input connectors on the front panel.
● When using a monaural camcorder, connect its AUDIO
OUTPUT connector to the AUDIO L input connector on your
unit.
B
Set the unit’s input mode.
Press CH +/– to set the channel to “F-1”.
● When using S-VIDEO connector, set “FRONT AUX F-1” to
“S-VIDEO”. (
● When using VIDEO connector, set “FRONT AUX F-1” to
“VIDEO”. (
C
Set the recording speed.
Press REC MODE repeatedly until the desired recording
speed appears.
D
Prepare the camcorder for dubbing.
Start playback on the camcorder slightly before the actual
point from where you wish to start dubbing.
E
Start dubbing.
Press and hold 7, then press 4 on the Remote, or press
7 on the unit.
F
Stop dubbing.
Press 8 on the unit, then stop playback on the
camcorder.
NOTES:
● All necessary cables can be obtained from your dealer.
● Refer to the camcorder’s instruction manual for operating
procedure.
● The quality of dubbed picture becomes poorer than that of the
original.
