INDEX (cont.)

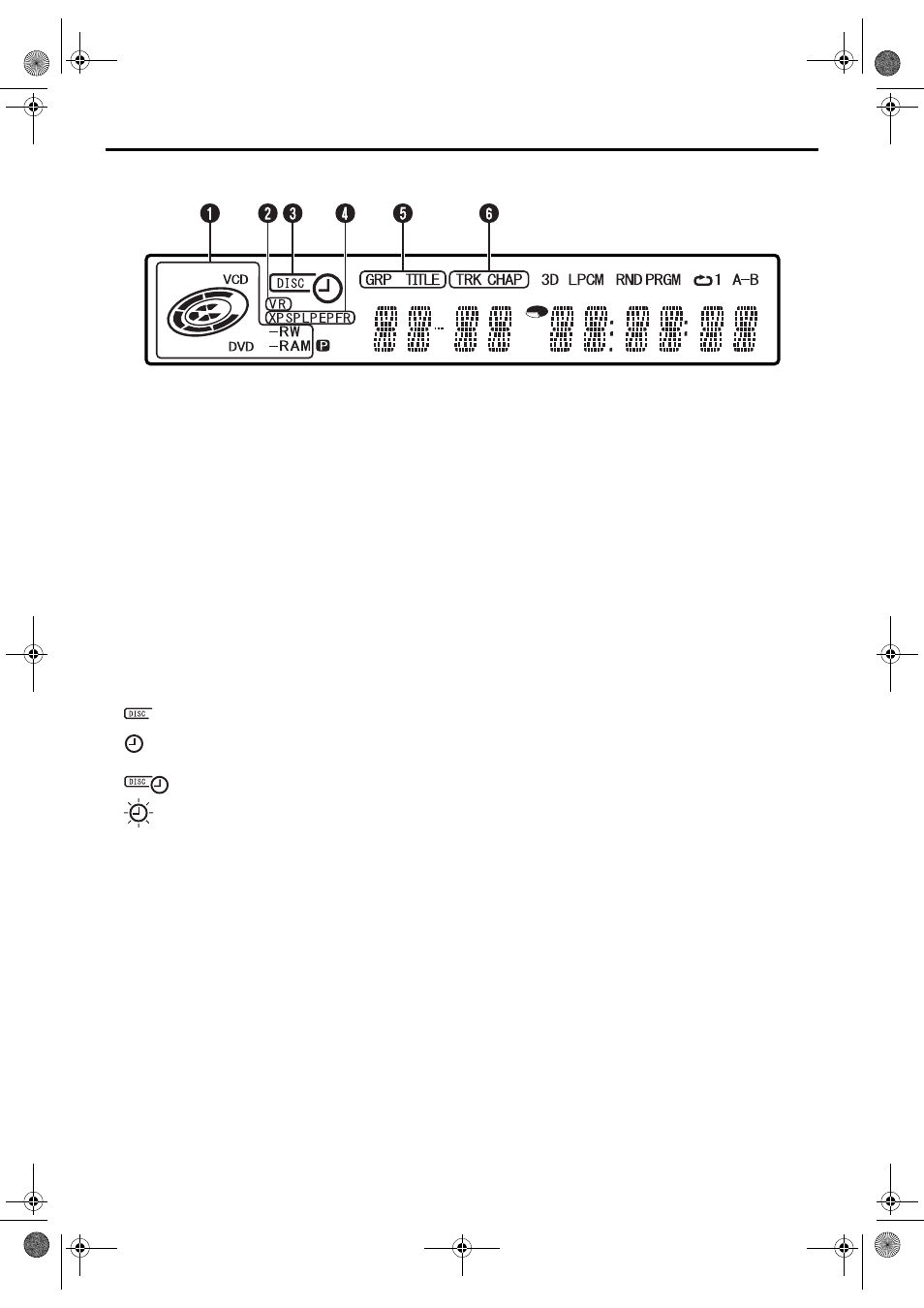

FRONT DISPLAY PANEL
A Disc Type/Status Indicator
When a disc is loaded, the type of the disc is indicated.
When a disc is running, the disc marks rotate.
During High-Speed Search: Rotate faster than normal
playback.
During Slow Motion:
Rotate slower than normal
playback.
While recording:
Inner red ring lights in the same
way as normal playback. During
Instant Timer Recording (ITR),
inner red ring slowly blinks.
While paused:
Disc marks blink when either
recording or playing back.
While stopped:
Disc marks all light.
While resume stopped:
Disc marks all blink.
While the disc tray opened: Disc marks all light out.
No disc on the disc tray:
Disc marks all light out.
B VR Mode Indicator
Lights when a DVD-RW disc is formatted in VR mode.
C Timer Recording Indicator
:
Lights when a disc set up for On-Disc Timer
Programing is loaded.
:
Lights when timer recording other than On-Disc
Timer Programing is on stand-by or being
executed.
:
Lights when On-Disc Timer Programing is on
stand-by or being executed.
:
Blinks quickly if you press # (TIMER) in the
following cases;
● Disc is not loaded.
● Clock has not been set.
● There is no program setting.
D Recording Mode Indicator (XP/SP/LP/EP/FR)
Blinks when recording mode is being set.
While “FR” is blinking, the left 3 digits of the Multi Display
(L M) indicate setting values ranging from “60” to “480”.
After the value has been set, only “FR” lights.
E Group/Title Indicator (GRP/TITLE)
“GRP” or “TITLE” lights depending on a disc loaded while
the left 2 digits of the Multi Display (L) indicate the numbers
explained below.
“GRP”: Total number of groups or group number being
played back are displayed on the Multi Display.
“TITLE”: Total number of titles or title number being played
back are displayed on the Multi Display.
F Track/Chapter Indicator (TRK/CHAP)
“TRK” or “CHAP” lights depending on a disc loaded while
the 3rd and 4th digits from the left of the Multi Display (M)
indicate the numbers explained below.
“TRK”:
Total number of tracks or track number being
played back are displayed on the Multi Display.
“CHAP”: Chapter number being played back are displayed
on the Multi Display.
