INSTALLING YOUR NEW UNIT (cont.)
Component Video
Connection
Component video connection enables you to obtain high-quality
component video pictures.

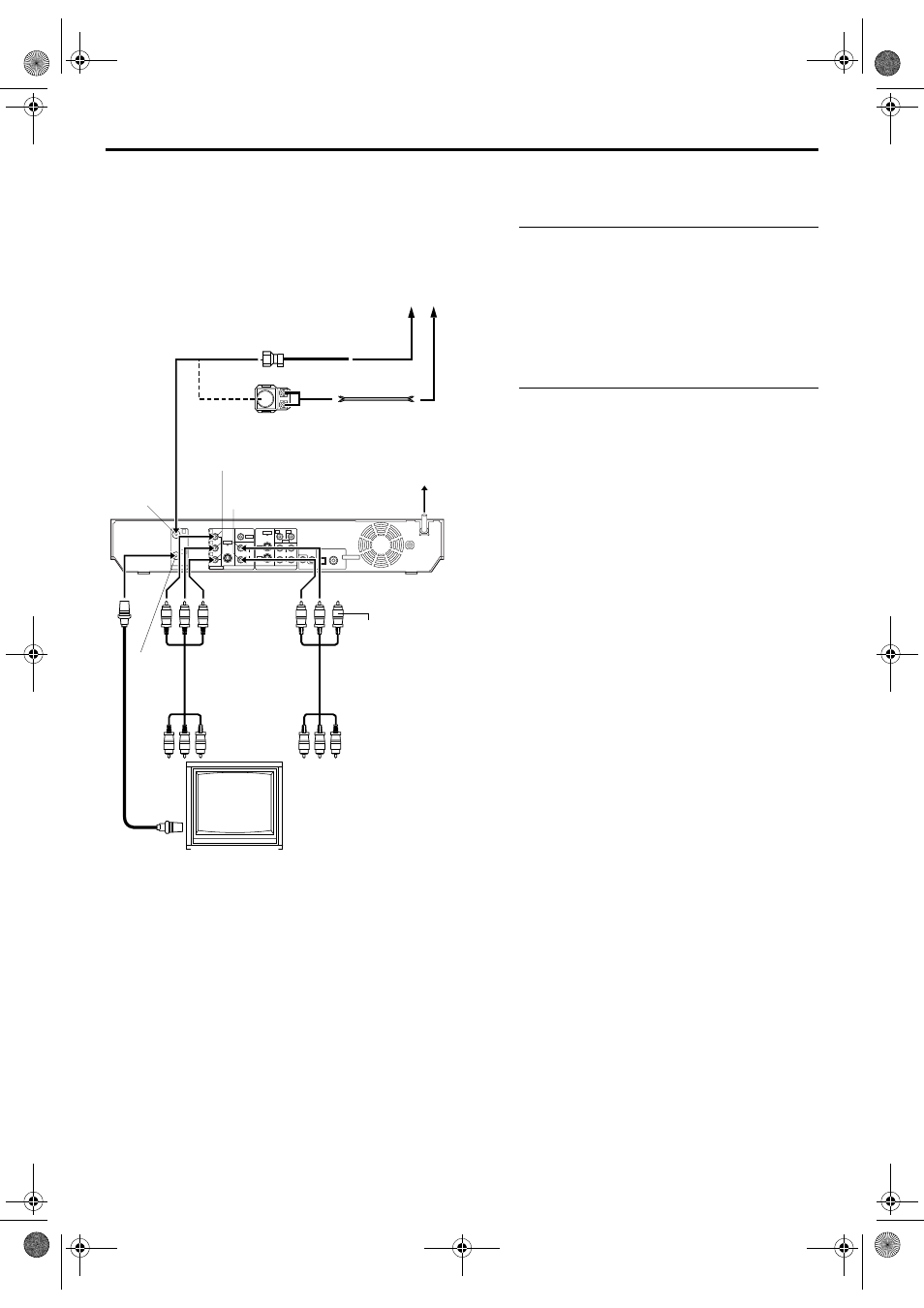

8 To connect to TV’s component video input connectors
A
Connect the unit to TV.
A Perform A – C in step C in “Basic Connections”
(
੬
pg. 18).
B Connect the unit’s COMPONENT OUTPUT
connectors to the TV’s component video input
connectors.
C Connect the unit’s AUDIO OUTPUT connectors to the
TV’s AUDIO input connectors.
B
Connect the unit to power source.
Plug the end of the AC power cord into an AC outlet. This
unit performs Plug & Play Set automatically. (
੬
pg. 21)
● The clock and tuner channels will automatically be set when
the antenna is connected and when the AC power cord is first
connected to an AC outlet. (If “AUTO” and the channel
indicator are displayed on the front display panel before the
unit is powered on, the clock and tuner channels are being set
automatically. Wait for the time to be displayed on the front
display panel before turning on the unit.)
NOTES:
● If your TV is not stereo-capable, use the unit’s AUDIO
OUTPUT connectors to connect to an audio amplifier for
Hi-Fi stereo sound reproduction.
● For switching the TV’s video input mode, refer to the
instruction manual of your television.
