Cable Box Control
Setting
Place the cable box on top of the unit. Attach the unit’s
Controller to the top of the unit with the Controller’s
transmitter pointed towards the cable box’s remote
sensor.
ATTENTION:
The Controller can also control a DBS receiver. If both a cable
box and a DBS receiver are used, position the Controller so its
signal reaches the remote sensors of both the cable box and DBS
receiver.
The following procedure is required if you receive your
TV channels through a cable box (descrambler). The
Controller allows the unit to automatically switch the
cable box channel during timer recording. The Controller
is effective for recording broadcasts that have been
programed using “VCR Plus+
® Timer Programing”
(
੬
pg. 60) or “Manual Timer Programing” (
੬
pg. 64).
Installing Controller
A
Install a Controller.
Place a Controller so that the path between its transmitter
and the cable box’s remote sensor is unobstructed.
B
Attach the Controller.
Fix securely using the adhesive strip attached on the back
of the Controller.
C
Make connections.
If your cable box does not have audio/video output
connectors
Connect the RF output connector on the cable box to the
ANTENNA IN connector on the rear of your unit.
If your cable box has audio/video output connectors
Connect an audio/video cable between the AUDIO/
VIDEO INPUT connectors on the rear of the unit and the
audio/video output connectors on the cable box.
NOTE:
When connecting your cable box, refer to its instruction manual.
D
Connect the Controller to unit.
Connect the Controller to the CABLE BOX connector on
the rear panel.
CABLE
BOX
Cable box
Controller

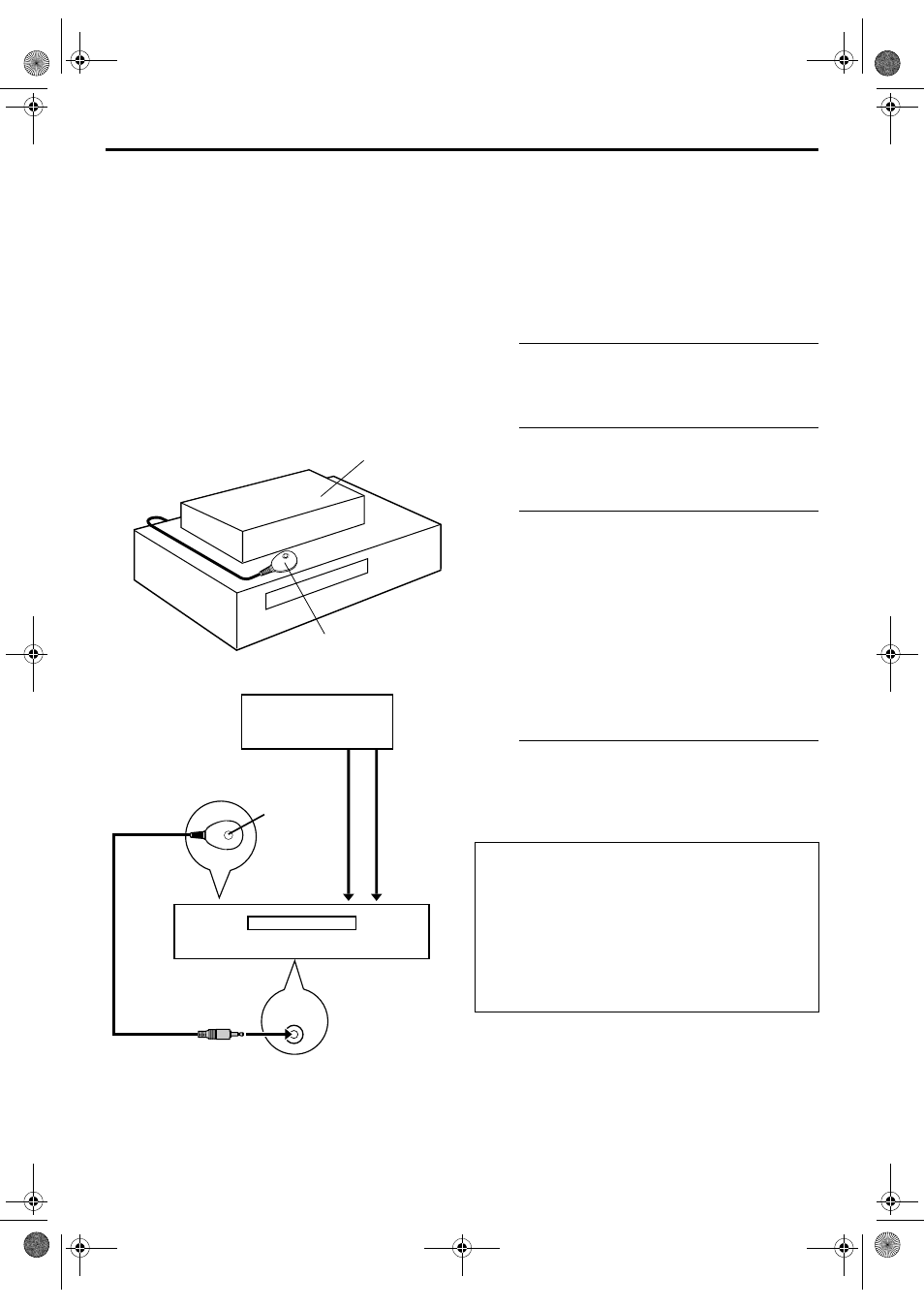

(suggested locations)
Transmitter
To
ANTENNA
IN
Your unit
Controller
Cable box
To RF output To Audio/
video
output
or
Your unit
To
AUDIO/
VIDEO
INPUT
How to control the cable box
This unit has two separate methods to control your cable
box.
● The unit’s wireless Remote can control your cable box.
This eliminates the need for a separate cable box’s Remote.
● The unit’s Controller can also control your cable box. This
allows the unit to change your cable box’s channel number
during timer recording.
Each method must be set up separately. To set up the unit’s
Remote, refer to page 93. To set up the Controller, go to
page 30.
