S-VIDEO
Connection

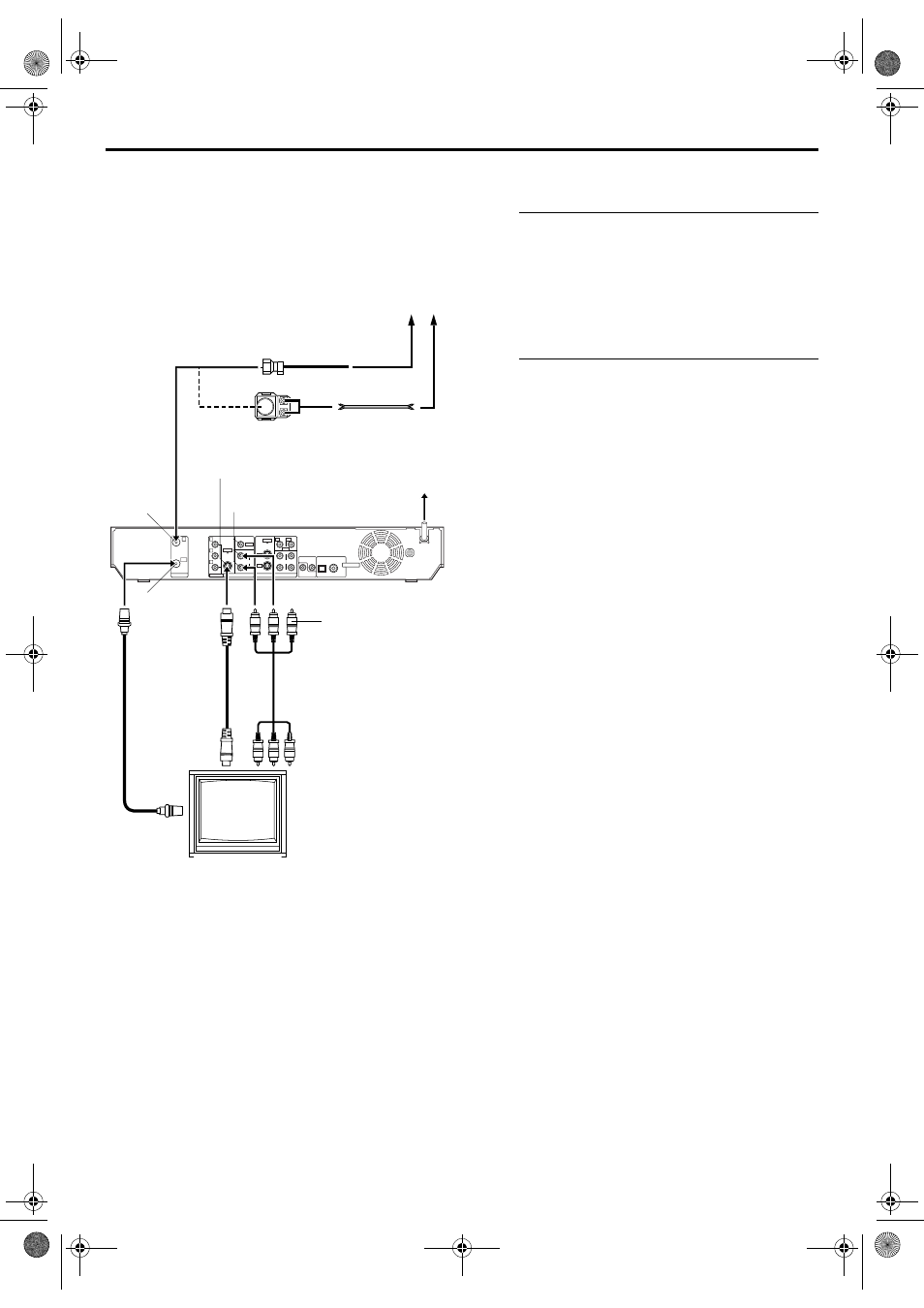

8 To connect to TV’s S-VIDEO input and AUDIO input
connectors
A
Connect the unit to a TV.
A Connect the antenna, unit and TV as per “Basic
Connections” (
੬
pg. 18).
B Connect the unit’s S-VIDEO OUTPUT connector to
the TV’s S-VIDEO input connector.
C Connect the unit’s AUDIO OUTPUT connectors to the
TV’s AUDIO input connectors.
B
Connect the unit to power source.
Plug the end of the AC power cord into an AC outlet. This
unit performs Plug & Play Set automatically. (
੬
pg. 21)
● The clock and tuner channels will automatically be set when
the antenna is connected and when the AC power cord is first
connected to an AC outlet. (If “AUTO” and the channel
indicator are displayed on the front display panel before the
unit is powered on, the clock and tuner channels are being set
automatically. Wait for the time to be displayed on the front
display panel before turning on the unit.)
NOTES:
● You can obtain high-quality S-VHS pictures.
● If your TV is not stereo-capable, use the unit’s AUDIO
OUTPUT connectors to connect to an audio amplifier for
Hi-Fi stereo sound reproduction.
● For switching the TV’s video input mode, refer to the
instruction manual of your television.
