2.8.2.4 Add-in Board and Peripheral Interface Connectors

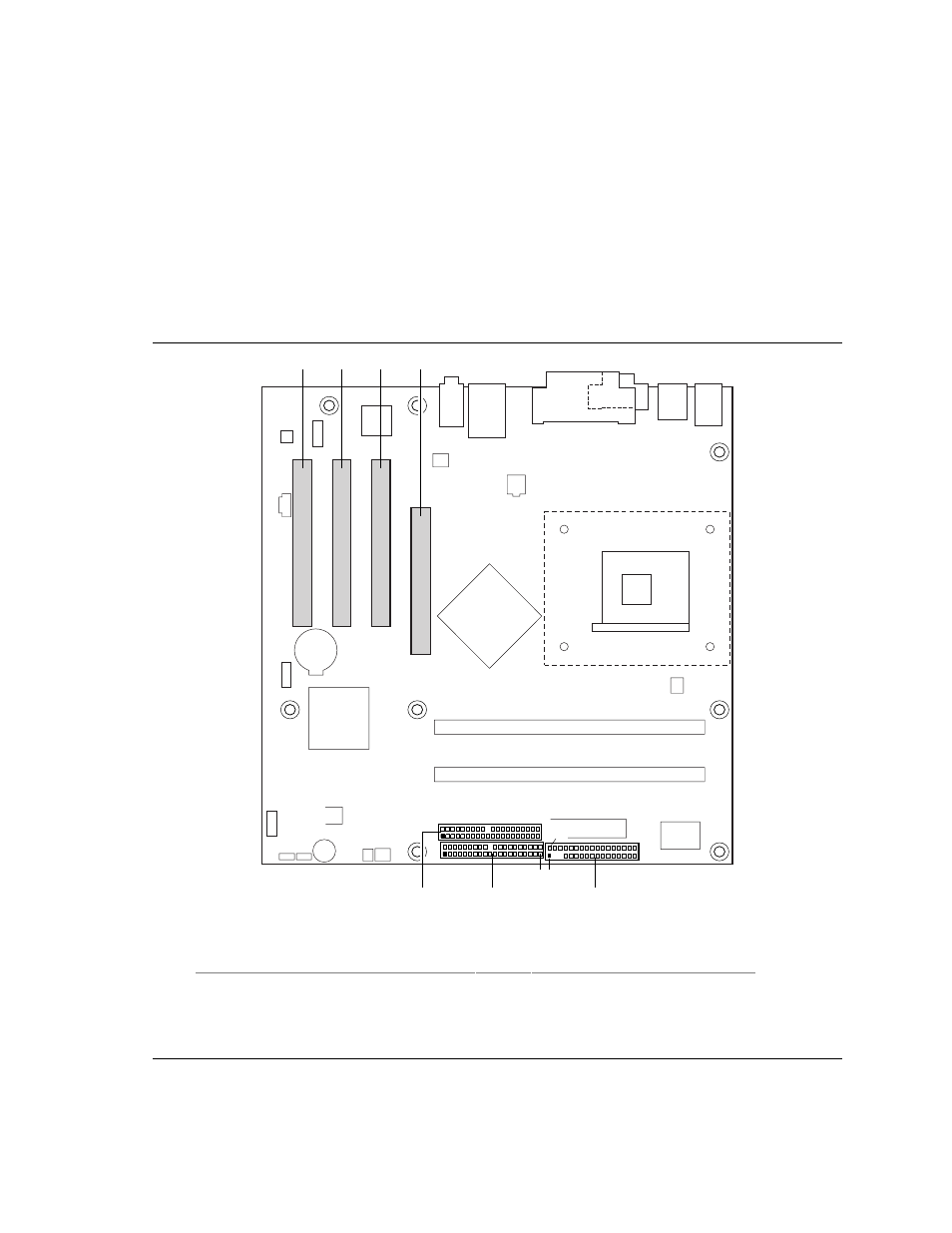

Figure 11 shows the location of the add-in board connector and peripheral connectors. Note the
following considerations for the PCI bus connectors:
• All of the PCI bus connectors are bus master capable.
• SMBus signals are routed to PCI bus connector 2. This enables PCI bus add-in boards with
SMBus support to access sensor data on the Desktop Board. The specific SMBus signals are
as follows:
 The SMBus clock line is connected to pin A40.
 The SMBus data line is connected to pin A41.
OM17037
A B C D
G F E
2
40
2
1
1
39
39
1
2
33
34
Item Description Item Description
A PCI bus connector 3 E Diskette drive
B PCI bus connector 2 F Primary IDE [black]
C PCI bus connector 1 G Secondary IDE [white]
D AGP connector
Figure 11. D865PCD Add-in Board and Peripheral Interface Connectors
