Intel Desktop Board D865PCD Technical Product Specification
30
1.9.2 RJ-45 LAN Connector with Integrated LEDs

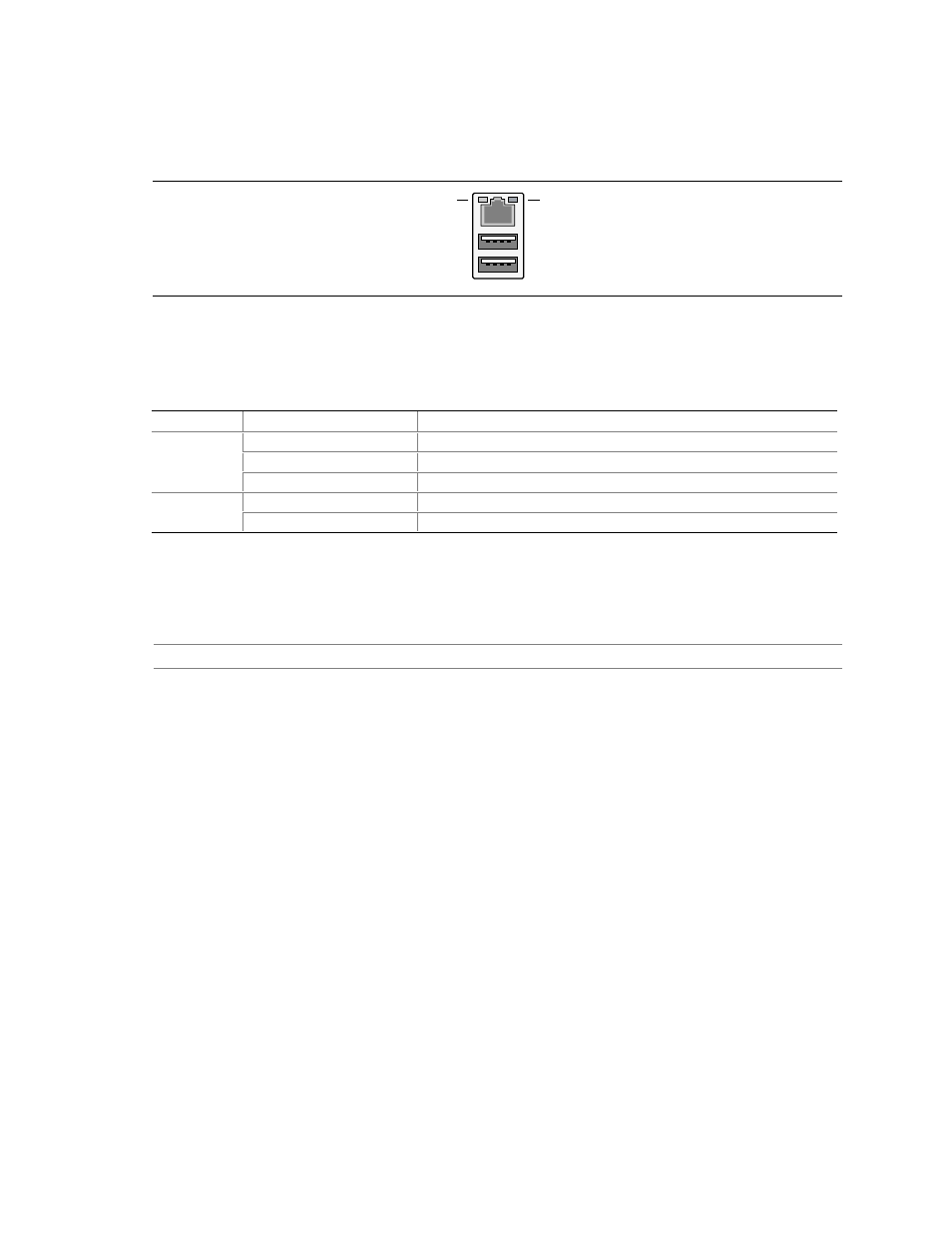

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 7 below).
Green LED Yellow LED
OM15076
Figure 7. LAN Connector LED Locations
Table 6 describes the LED states when the board is powered up and the 10/100 Mbits/sec LAN
subsystem is operating.
Table 6. LAN Connector LED States
LED Color LED State Condition
Off LAN link is not established
On LAN link is established
Green
Blinking LAN activity is occurring
Off 10 Mbits/sec data rate is selected Yellow
On 100 Mbits/sec data rate is selected
1.9.3 LAN Subsystem Software
LAN software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining LAN software and drivers Section 1.2, page 15
1.10 Chassis Intrusion and Detection
The Desktop Board D865PCD supports a chassis security feature that detects if the chassis cover is
removed. The security feature uses a mechanical switch on the chassis that attaches to the chassis
intrusion connector. When the chassis cover is removed, the mechanical switch is in the closed
position.
1.11 Power Management
Power management is implemented at several levels, including:
• Software support through Advanced Configuration and Power Interface (ACPI)
• Hardware support:
 Power connector
 Fan connectors
 LAN wake capabilities
 Instantly Available PC technology
 Resume on Ring
 Wake from USB
 Wake from PS/2 devices
