OCPRF100 MP Server System Technical Product Specification
Revision 1.0
54
5.
Power Supply
This document defines the requirements for a universal input switching power supply, which pro-
vides 750 watts DC with power factor corrected AC input and with current and remote sense reg-
ulation. The power supply is used with its DC outputs paralleled with other identical supplies to
form a redundant power system with system operating replacement capability (hot-swap). All
power supply connectors, including AC and DC connectors, accommodate “blind mating.” The
supply
has four externally enabled outputs, one +5 V standby output at 1.0 A, and one +15 Vdc
standby output at 200 mA. Both +5 Vdc and +15 Vdc standby outputs are present whenever AC
power is applied.
The four externally enabled outputs have the following ratings:
•
+3.3 Vdc at 36 A
•
+5
Vdc at 36 A
•
+12
Vdc at 36 A
with 42 A peak
•
-12
Vdc at
1 A
5.1
Mechanical Requirements
5.1.1
Mechanical Outline
The mechanical outline and dimensions are shown in Figure 5-1: Outline Drawing of Power Sup-
ply Enclosure. The unit of measurement is inches. The following mechanical sketches should be
used for preliminary reference only.
Refer to the Power Supply, 750/650W, PFC, 5 Outputs docu-
ment for a detailed drawing.

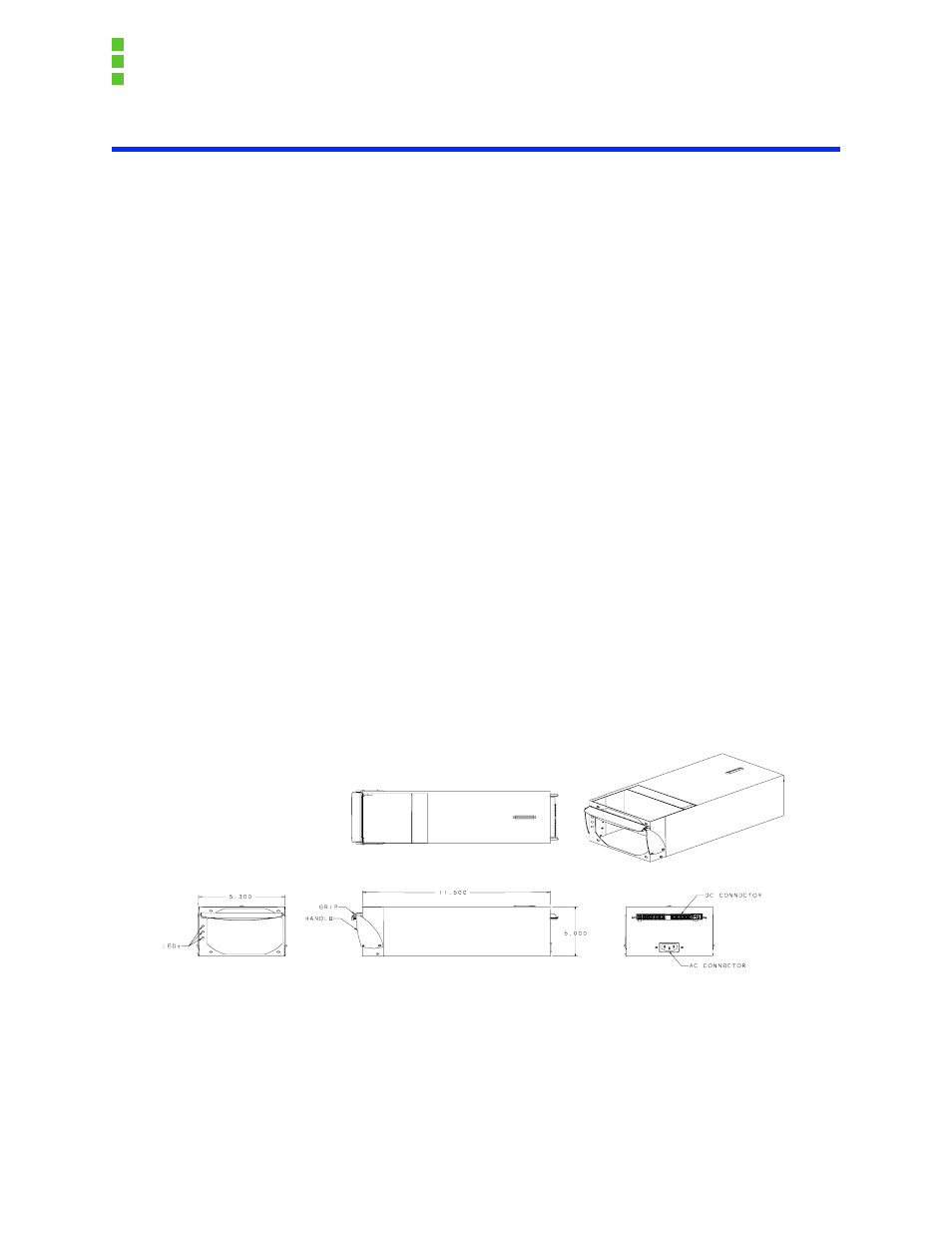

Figure 5-1: Outline Drawing of Power Supply Enclosure
