Chapter 6: Sub-Element Grouping Rules
Netcool/Proviso Cisco IP Telephony Technology Pack User’s Guide, Version 4.3-W 169
Infrastructure Branch

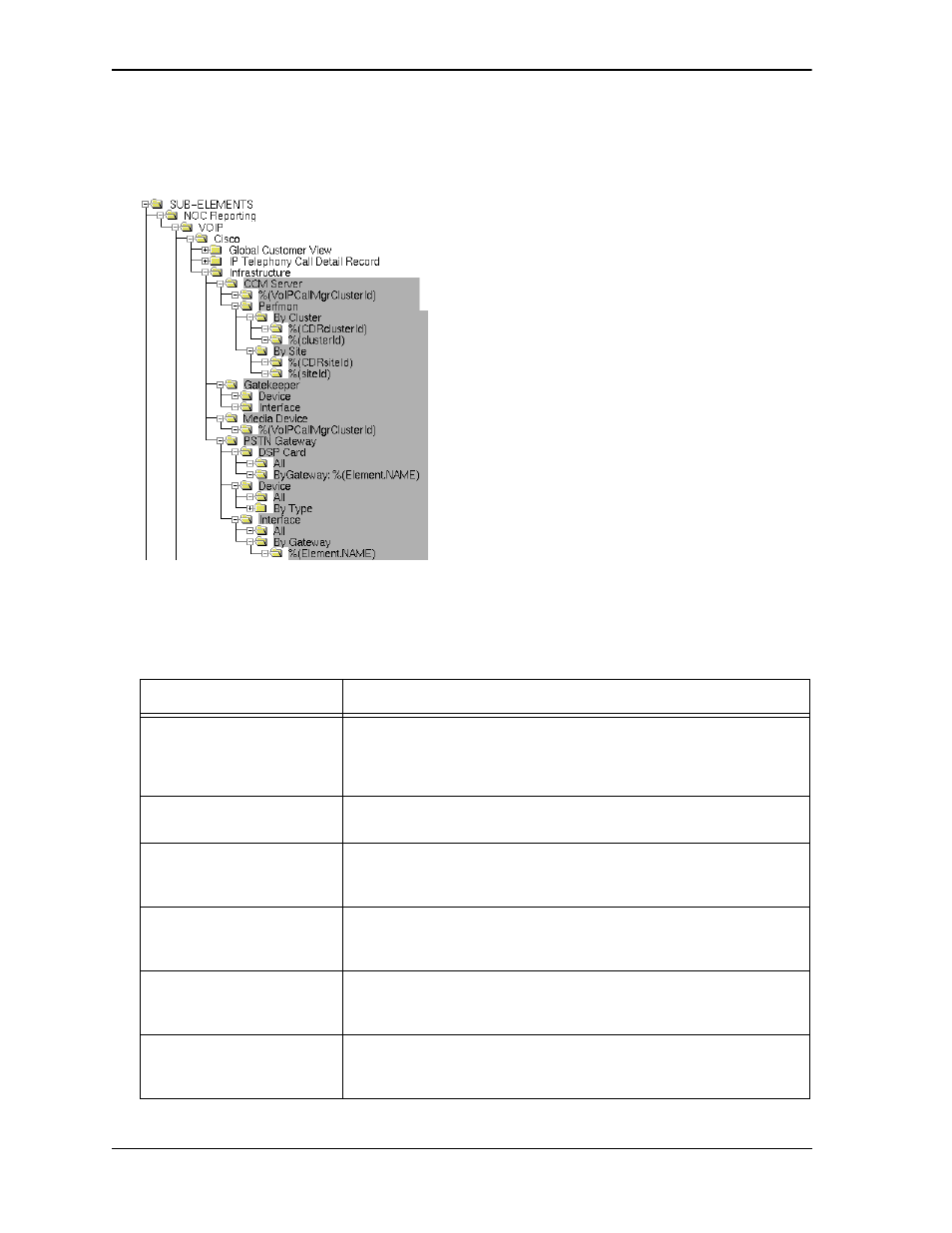

The Infrastructure branch of the Cisco IP Telephony NOC reporting tree contains the sub-branches shown
below:
This branch has no rules or conditions. All sub-elements are tested against the rules and conditions in its sub-
branches.
The sub-branches are described as follows:
Infrastructure Branch (No Rules or Conditions)
Sub-branch Name Description
CCM Server Type: Static.
Purpose: Filters by condition:
%(FAMILY) LIKE 'VOIP_Cisco_CCM_Server%' OR
%(VoIPDeviceType) = 'CallManagerServer'
CCM Server
--%VoIPCallMgrClusterId Type: Rule.
Purpose: Groups the collected CCM Server sub-elements by CCM cluster ID.
Perfmon Type: Static.
Purpose: Filters by condition:
%(VoIPDeviceType) = 'CUCM_Perfmon'
Perfmon
--By Cluster Type: Static.
Purpose: Filters by condition:
%(FAMILY) = 'VOIP_Cisco_CCM_Server_PERFMON'
Perfmon
--By Cluster
----%(CDRclusterID) Type: Rule.
Purpose: Groups the collected Perfmon sub-elements by CCM cluster ID.
Perfmon
--By Site Type: Static.
Purpose: Filters by condition:
%(FAMILY) = 'VOIP_Cisco_CCM_Server_PERFMON'
