Part No. 1056953 63 9000 Series
INSTALLING THE AMPUTEE BRACKET - ALL MODELS
EXCEPT SUPER HEMI
9000SL/XT (FIGURE 4)
1. Refer to the following chart or FIGURE 5 to determine the mounting position of the
amputee bracket:
REAR VIEW OF
AMPUTEE BRACKET
Axle Spacer Towards
OUTSIDE of Wheelchair
RIGHT LEFT
Axle Spacer Towards
OUTSIDE of Wheelchair
BRACKET "A" BRACKET "B"
Locknuts
ADULT RIGHT ADULT LEFT
Hex Screws
2. Install the amputee bracket on the wheelchair frame to the position determined in STEP 1.
NOTE: Make sure the axle spacer is pointing towards the outside of the wheelchair.
3. Install the two (2) hex screws and locknuts that secure the amputee bracket to the wheel-
chair.
4. Install the rear wheels onto the wheelchair. Refer to REMOVING/INSTALLING THE
REAR WHEELS in SECTION 6 of this manual.

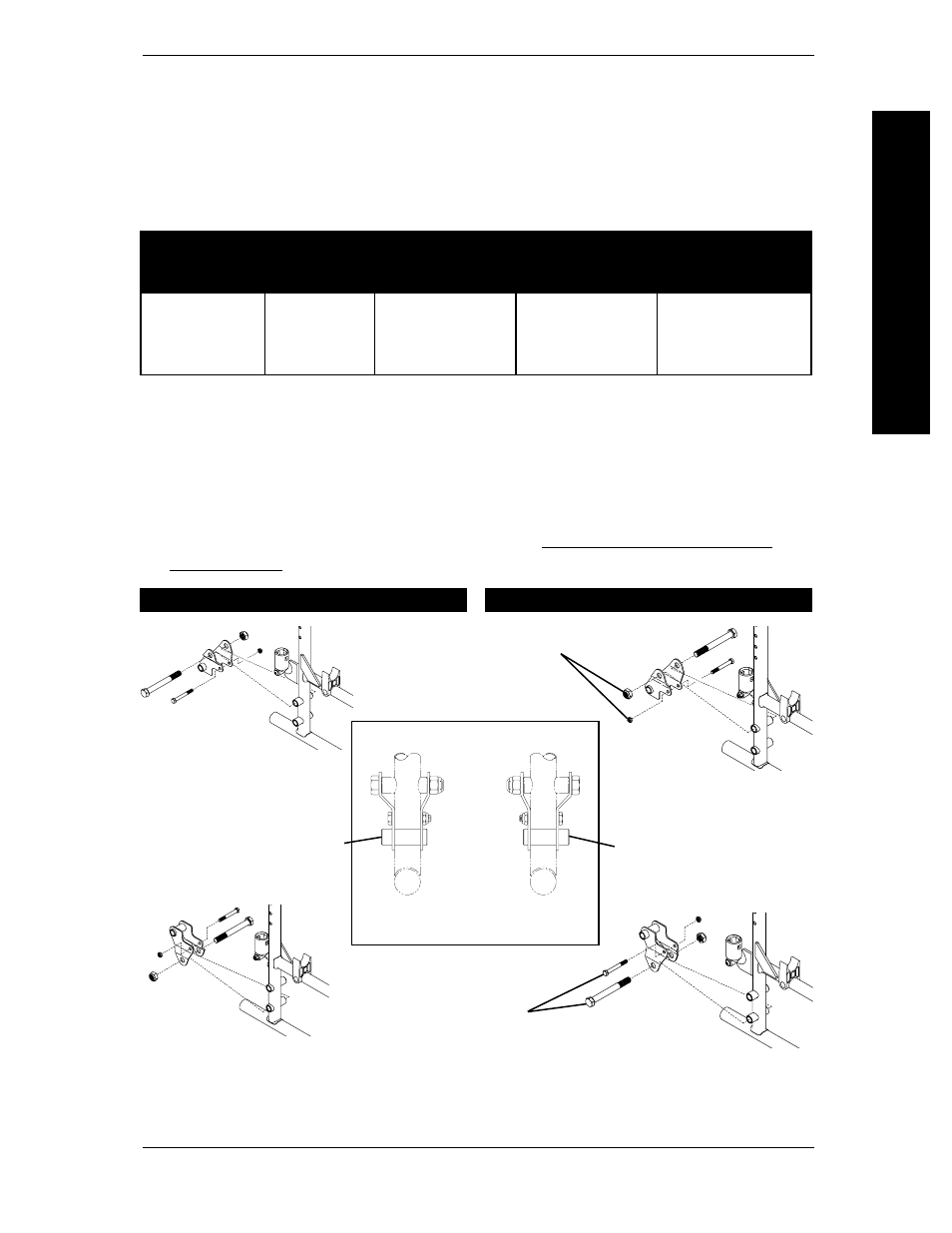

FIGURE 4 - INSTALLING THE AMPUTEE BRACKET - 9000SL/XT
HEMI LEFT
HEMI RIGHT
SEAT- *BRACKET AXLE SPACER SIDE OF AXLE MOUNTING
TO-FLOOR POSITION WHEELCHAIR POSITION
(on bracket) (on wheelchair)
ADULT A DOWN RIGHT TOP
ADULT B DOWN LEFT TOP
HEMI B UP RIGHT BOTTOM
HEMI A UP LEFT BOTTOM
*NOTE: "A" and "B" are stamped on the sides of the amputee bracket.
