9000 Series 26 Part No. 1056953
SECTION 3 FRONT RIGGINGS
FRONT
RIGGINGS
Section 3 - Front Riggings includes the following:
Installing/Removing/Using the Footrest/Legrest
Footrest Height Adjustment
Raising/Lowering the Elevating Legrest Assembly
Impact Guards/Calf Strap
Heel Loop Replacement
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
INSTALLING/REMOVING THE FRONT RIGGINGS
(FIGURE 1)
NOTE: This procedure applies to the swingaway
footrests and the elevating legrest.
INSTALLING
1. Turn the front rigging assembly to the
side (open front rigging is perpendicu-
lar to wheelchair).
2. Install the hinge plates on the front
rigging assembly onto the hinge pins on
the wheelchair frame.
3. Push the front rigging assembly to-
wards the inside of the wheelchair until
it locks into place.
NOTE: The footplate will be on the inside of the
wheelchair when locked in place.
4. Repeat this procedure for the other front rigging assembly.
5. To release the front rigging, push the front rigging release lever inward, rotate front
rigging outward.
REMOVING
1. Push the front rigging release lever inward
2. Rotate swingaway front rigging assembly outward.
3. Lift the swingaway front rigging assembly off of the hinge pins.

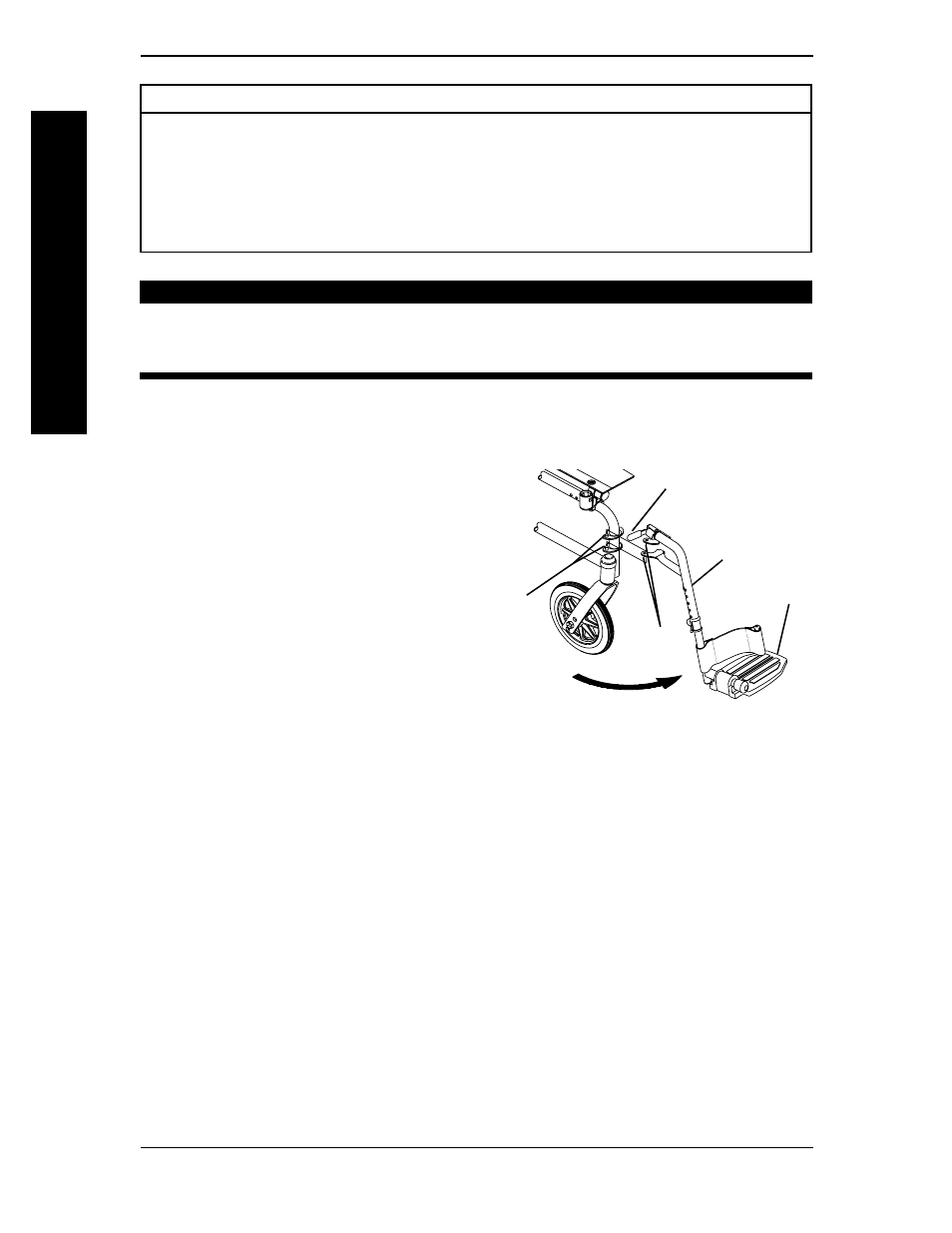

FIGURE 1 - INSTALLING/
REMOVING THE SWINGAWAY
FRONT RIGGING
Hinge
Pins
Front Rigging
Assembly
Hinge
Plates
Front Rigging Release
Lever
Footplate
NOTE: Swingaway footrests shown.
