9000 Series 36 Part No. 1056953
Section 5 - Seat and Back includes the following:
Replacing the Seat Upholstery
Replacing the Back Upholstery
Adjusting the Back Height, Back Angle or Seat Depth
Adjusting the Seat Width
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all
attaching hardware is tightened securely - otherwise injury or damage
may occur.
NOTE: The procedures in this section apply to NON-RECLINER models only. For 9000XT RE-
CLINER models, refer to SECTION 9 of this manual.
REPLACING THE SEAT UPHOLSTERY (FIGURE 1)
1. Remove the mounting screws that secure the existing seat upholstery to the wheel-
chair frame.
NOTE: The chart below determines the number of mounting screws for each seat depth.
2. Remove the EXISTING seat upholstery from the wheelchair frame.
3. Install NEW seat upholstery by reversing STEPS 1-2.
SEAT DEPTH NUMBER OF SCREWS
16-inch 8
17-inch to 20-inch 10

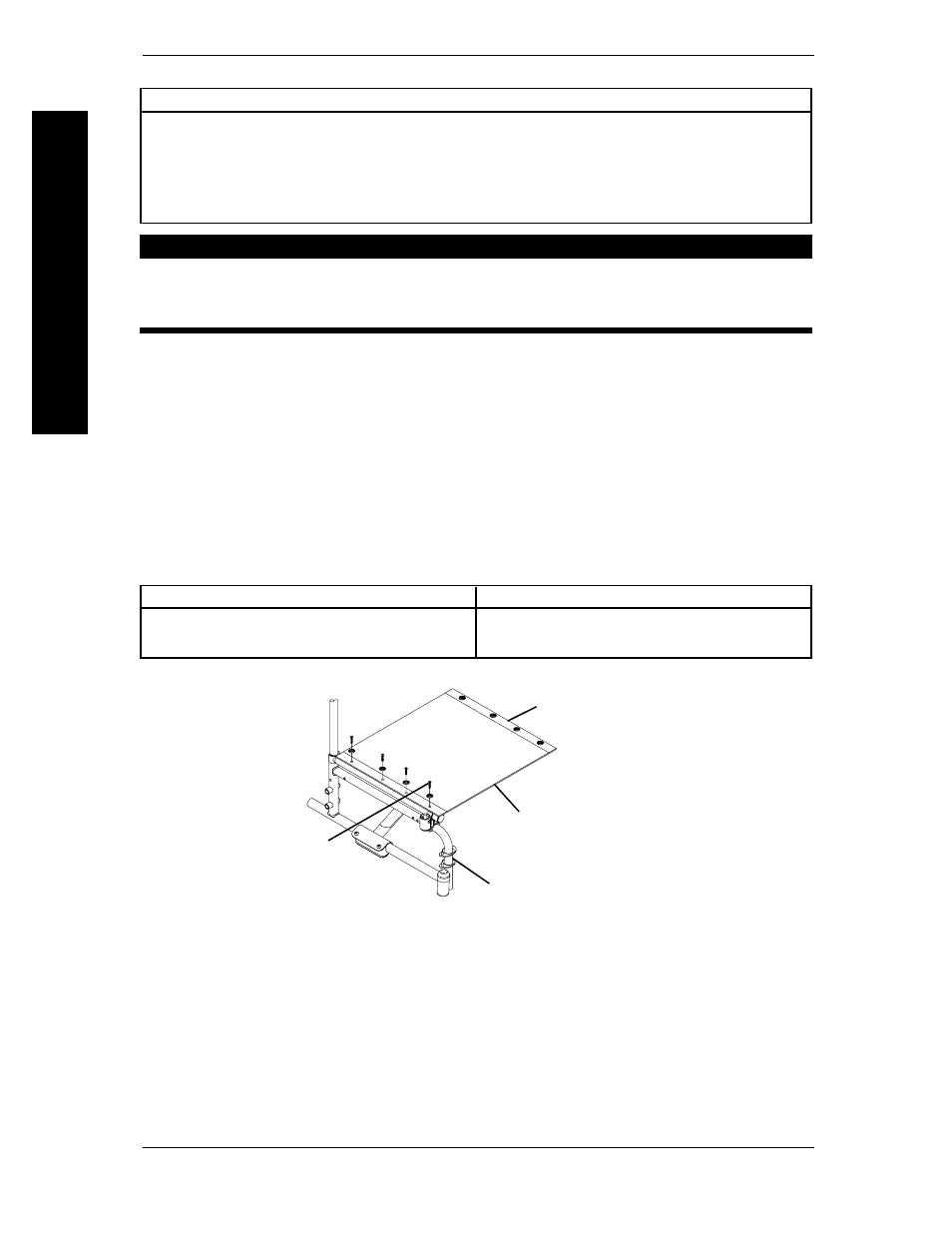

FIGURE 1 - REPLACING THE SEAT UPHOLSTERY
Seat Upholstery
16-inch Seat Depth
Mounting Screws
Wheelchair Frame
SEAT AND BACK SECTION 5
SEAT
AND
BACK
