9000 Series 32 Part No. 1056953
SECTION 4 ARMS
ARMS
Swing
Back Arm
Armrest
Release
Lever
Arm Socket

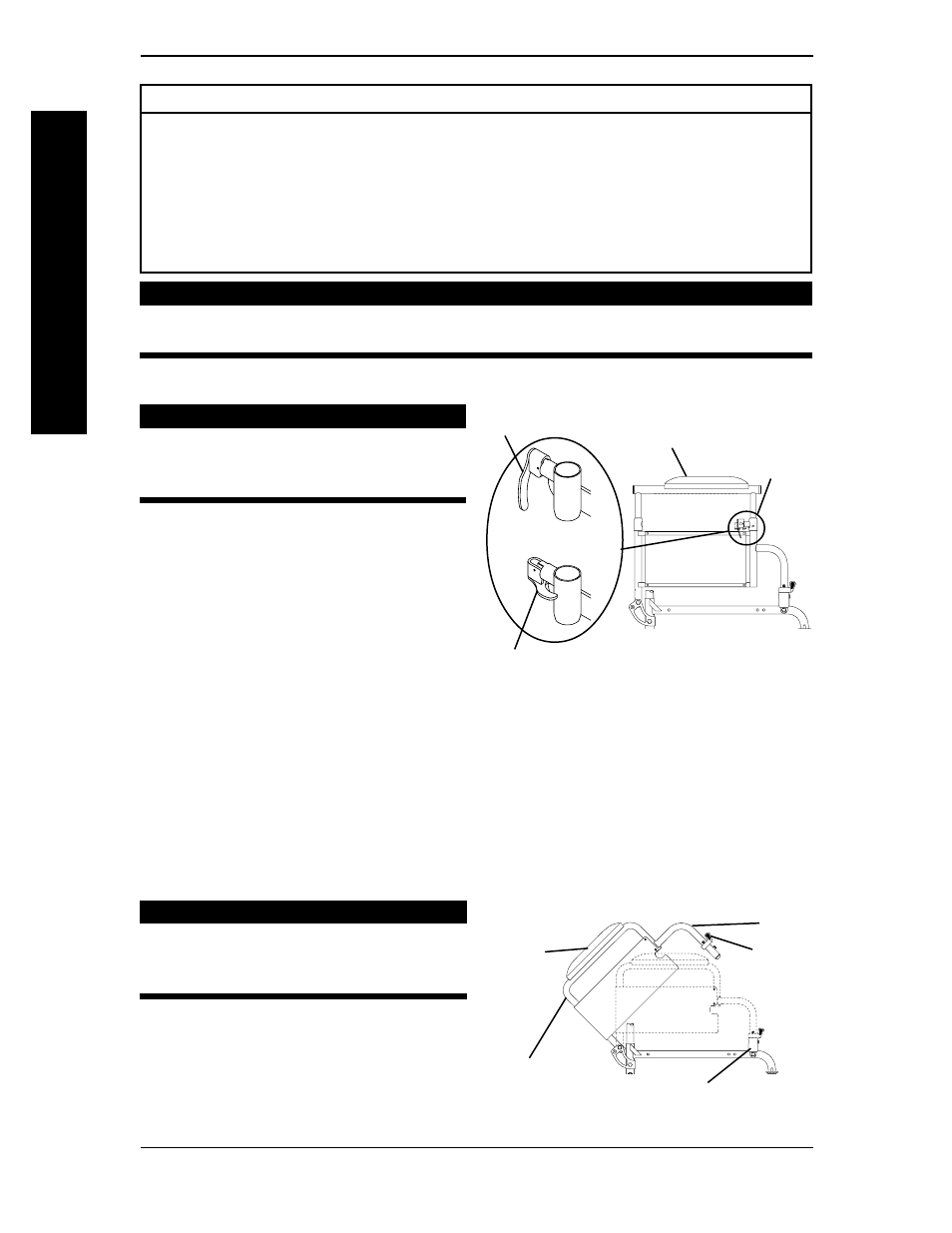

FIGURE 2 - SWING-BACK ARMS -
9000SL, 9000XT, 9000XDT
Front
Rear
Section 4 - Arms includes the following:
Adjusting Armrest Height
Swing-Back Arms
Removing or Replacing Armrest
Replacing Desk/Full Length Armrest Pad and or Clothing Guards (Fixed Height Arms Only)
Converting From Space Saver to Conventional Arms or Conventional to Space Saver
Arms (9000 XT/XDT Wheelchairs)
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attach-
ing hardware is tightened securely - otherwise injury or damage may occur.
ADJUSTING ARMREST HEIGHT (FIGURE 1)
WARNING
Make sure the height adjustment
lever is in the locked position be-
fore using the wheelchair.
1. Unlock the armrest by flipping the
height adjustment lever on the top
front of the armrest to the UP (HORI-
ZONTAL) position.
2. Adjust armrest to one (1) of five (5)
positions.
NOTE: Height adjustment lever MUST be in
the unlocked position when placing armrest into
the arm assembly.
3. Lock the armrest by pressing the height adjustment lever into the DOWN (VERTI-
CAL) position when the desired armrest height is achieved.
4. Repeat STEPS 1-3 for other armrest.
SWING-BACK ARMS (FIGURE 2)
NOTE: This procedure applies to 9000SL, 9000XT, and 9000XDT wheelchairs ONLY.
WARNING
Make sure the armrest release
lever is in the locked position be-
fore using the wheelchair.
1. Unlock the swing-back arms by rotat-
ing the armrest release lever towards
the outside of the wheelchair.
2. Pull the front of the swing-back arm
straight up/out of the arm socket and
towards the rear of the wheelchair.
FIGURE 1 - ADJUSTING ARMREST
HEIGHT
Height
Adjustment
Lever
Locked (Vertical)
Unlocked (Horizontal)
Armrest
