9000 Series 62 Part No. 1056953
INSTALLING THE AMPUTEE BRACKET - SUPER HEMI
MODELS ONLY (FIGURE 3)
1. Remove the plug button or anti-tipper
from the step tube of the wheelchair
frame.
2. Slide the amputee attachment over the
step tube of the wheelchair.
3. Secure the amputee attachment to the
wheelchair with the hew screw, spacer
and locknut.
4. Reinstall the plug button or anti-tipper
onto the step tube of the wheelchair
frame.
5. Repeat STEPS 1-4 for the opposite side
of the wheelchair.
6. Reposition the rear wheels. Refer to
REMOVING/INSTALLING REAR
WHEELS in SECTION 6 of this manual.

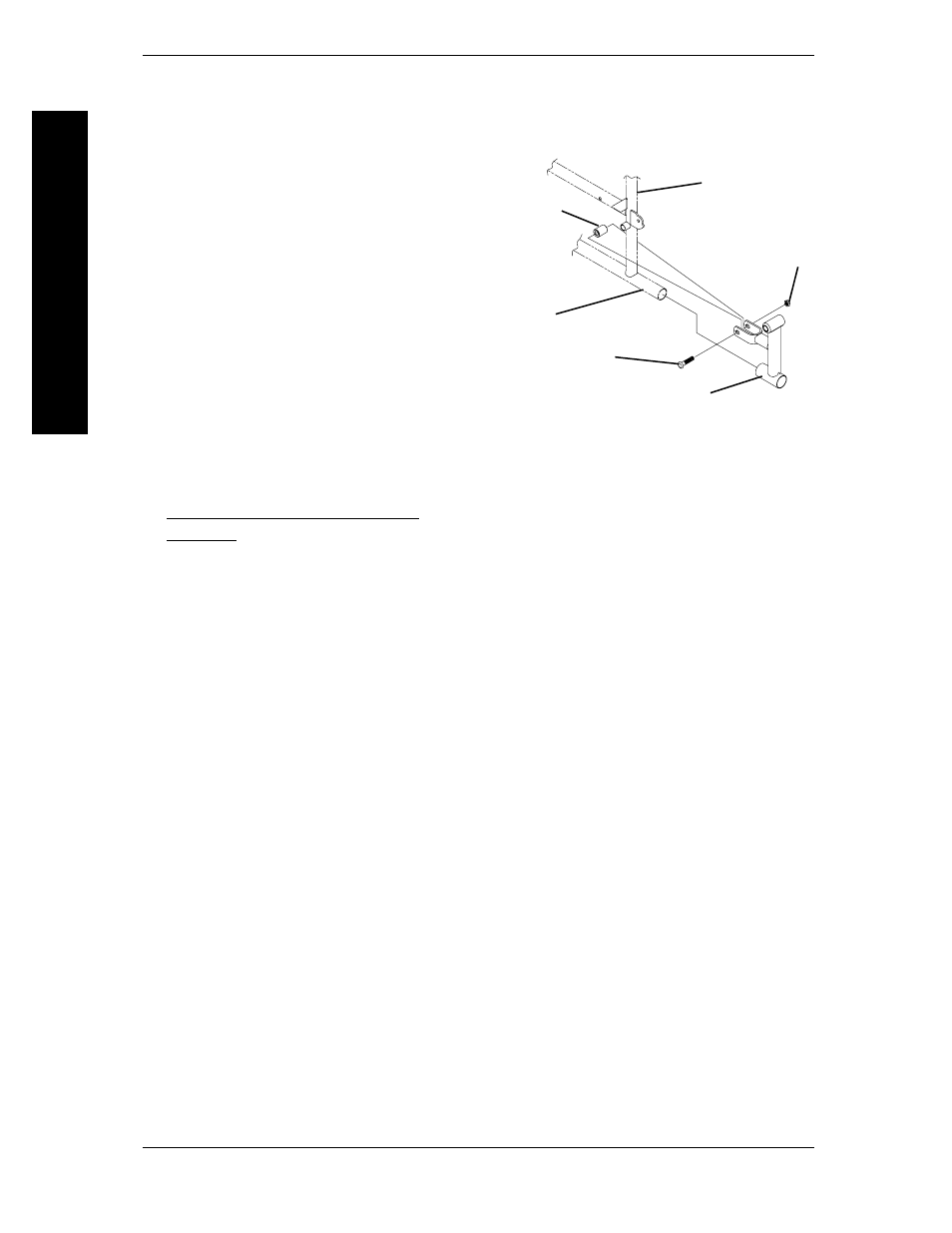

FIGURE 3 - INSTALLING THE
AMPUTEE BRACKET - SUPER
HEMI MODELS ONLY
Wheelchair
Frame
Spacer
Hex Screw
Locknut
Amputee Attachment
Step
Tube
OPTIONS SECTION 10
OPTIONS
