4. To reinstall the rear wheel onto the wheelchair, reverse STEPS 1-3.
NOTE: Make sure axle spacer is between rear wheel and wheelchair frame if wheelchair is
equipped with conventional arms.
WARNING
Make sure the detent pin and locking pins of the quick-release axle are
fully released BEFORE operating the wheelchair.
The locking pins MUST be protruding past the inside of the rear wheel
axle bushing for a positive lock (DETAIL "A", FIGURE 3).
Keep locking pins clean.
Invacare recommends inserting quick-release axles with the detent pin to
the inside of the wheelchair to prevent accidental release during contact
activities.
5. If the locking pins are not protruding past the inside of the axle bushing or there is
too much side to side movement of the rear wheel assembly, refer to ADJUSTING
THE QUICK-RELEASE AXLE in this section of the manual.
Axle Mounting Positions
Rear Wheel
Axle Spacer (Conventional Arms Only)
Quick-Release Axle
Wheelchair Frame

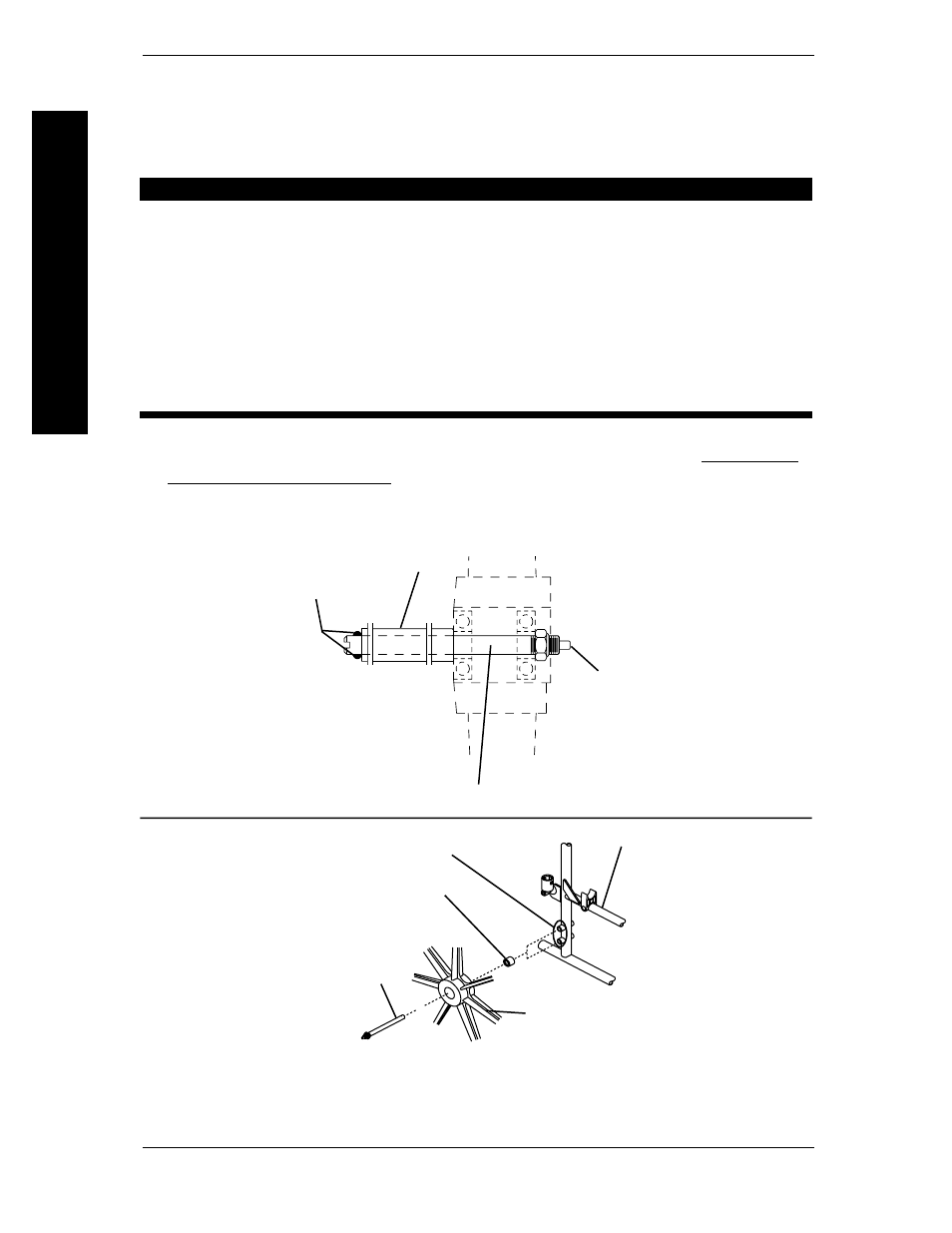

FIGURE 1 - REMOVING/INSTALLING THE REAR WHEELS -
QUICK-RELEASE AXLES
Detent Pin
Locking Pins
Quick-Release Axle
Axle Bushing
DETAIL "A" - LOCKING PINS AND DETENT PIN
OUTSIDE OF
WHEELCHAIR
INSIDE OF
WHEELCHAIR
REAR WHEELS
