Invacare 9000 SL User Manual
Page 34
9000 Series
34
Part No. 1056953
SECTION 4
ARMS
ARMS
REPLACING DESK/FULL LENGTH ARMREST PAD AND/OR
CLOTHING GUARDS (FIXED HEIGHT ARMS ONLY) (FIGURE 3)
ARMREST PAD
1. Remove the mounting screws that secure
the armrest pad to the armrest assembly.
2. Replace armrest pad and securely tighten
with the existing mounting screws.
CLOTHING GUARD
1. Remove the four (4) mounting screws that
secure the existing clothing guard to the
armrest assembly.
2. Install NEW clothing guard and securely
tighten with the existing mounting screws.

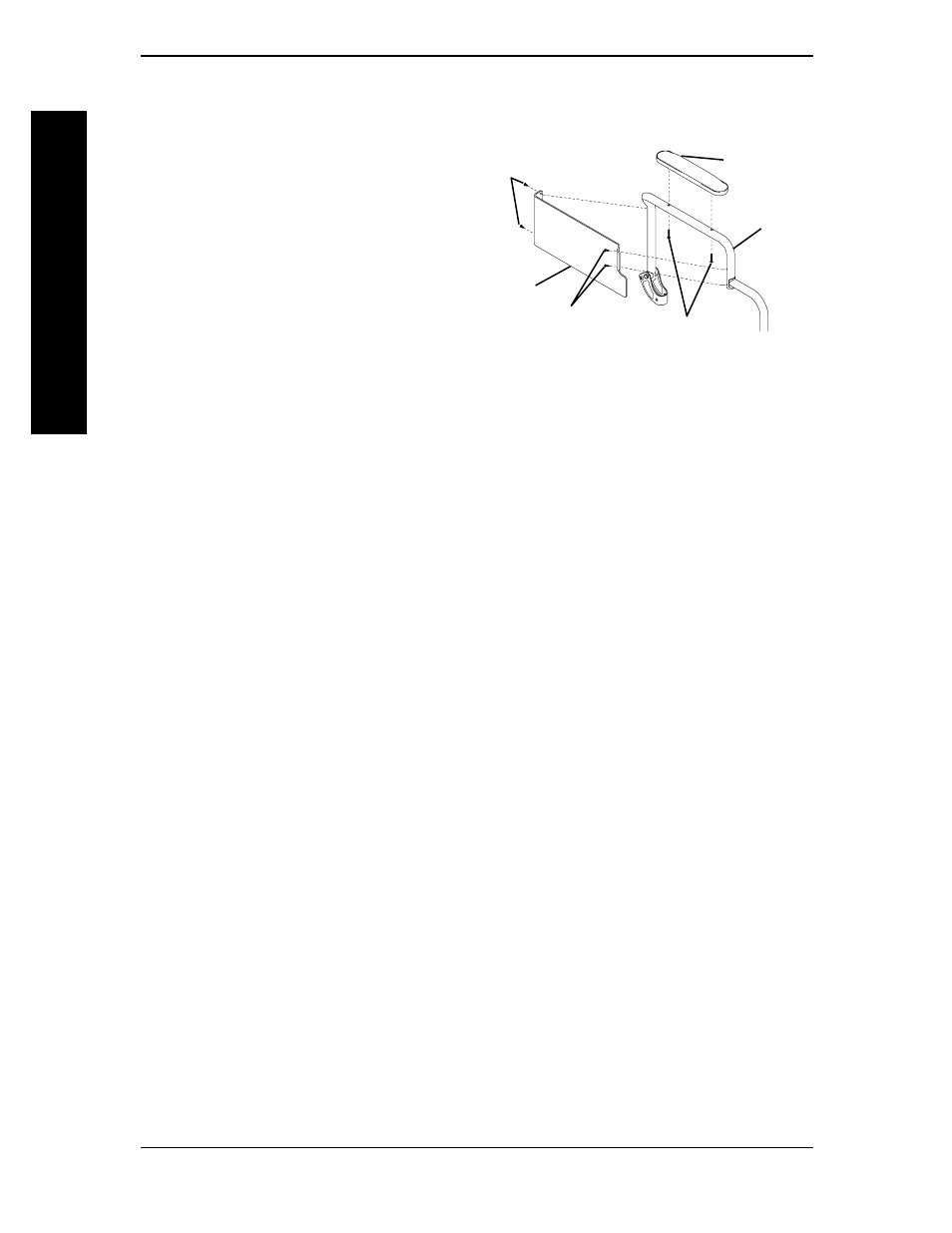

FIGURE 3 - REPLACING DESK/
FULL LENGTH ARMREST PAD
AND/OR CLOTHING GUARDS
(FIXED HEIGHT ARMS ONLY)
Clothing
Guard
Armrest
Assembly
Armrest Pad
Mounting Screws
Mounting Screws
Mounting Screws
