Invacare 9000 SL User Manual

Page 33

Part No. 1056953

9000 Series

3. To use the swing-back arm, push the swing-back arm towards the front of the

wheelchair and then downward into the arm socket.

NOTE: Armrest release lever MUST be in the unlocked position when placing armrest into the

arm sockets.
4. Lock the swing-back arms by rotating the armrest release lever towards the inside

of the wheelchair.

REMOVING OR REPLACING ARMREST (FIGURE 4)

WARNING

Make sure the armrest release lever is in the locked position before using

the wheelchair.
9000XDT: ONLY use heavy duty,

fixed height armrests on 9000XDT

wheelchairs - otherwise injury or

damage may occur.
Heavy duty, fixed height armrests

are identified by a circular mark on

the rear arm post above or below

the the armrest release handle.

NOTE: This procedure DOES NOT apply to 9000 SL wheelchairs.

Make sure the armrest release lever is in the locked position before using the

wheelchair.

REMOVING ARMRESTS

1. Unlock the armrest by turning the armrest release levers towards the outside of the wheel-

chair.

2. Lift armrest completely out of arm sockets from the wheelchair.

REPLACING ARMRESTS

NOTE: Armrest release levers MUST be in the un-

locked position when placing armrests into the arm

sockets.
1. Place armrest into arm sockets located on

the side of the wheelchair.

2. Lock the armrest by turning the armrest

release levers towards the inside of the

wheelchair.

SECTION 4

ARMS

Armrest

Release Lever

Arm

Socket

Arm

Socket

Armrest

Release

Lever

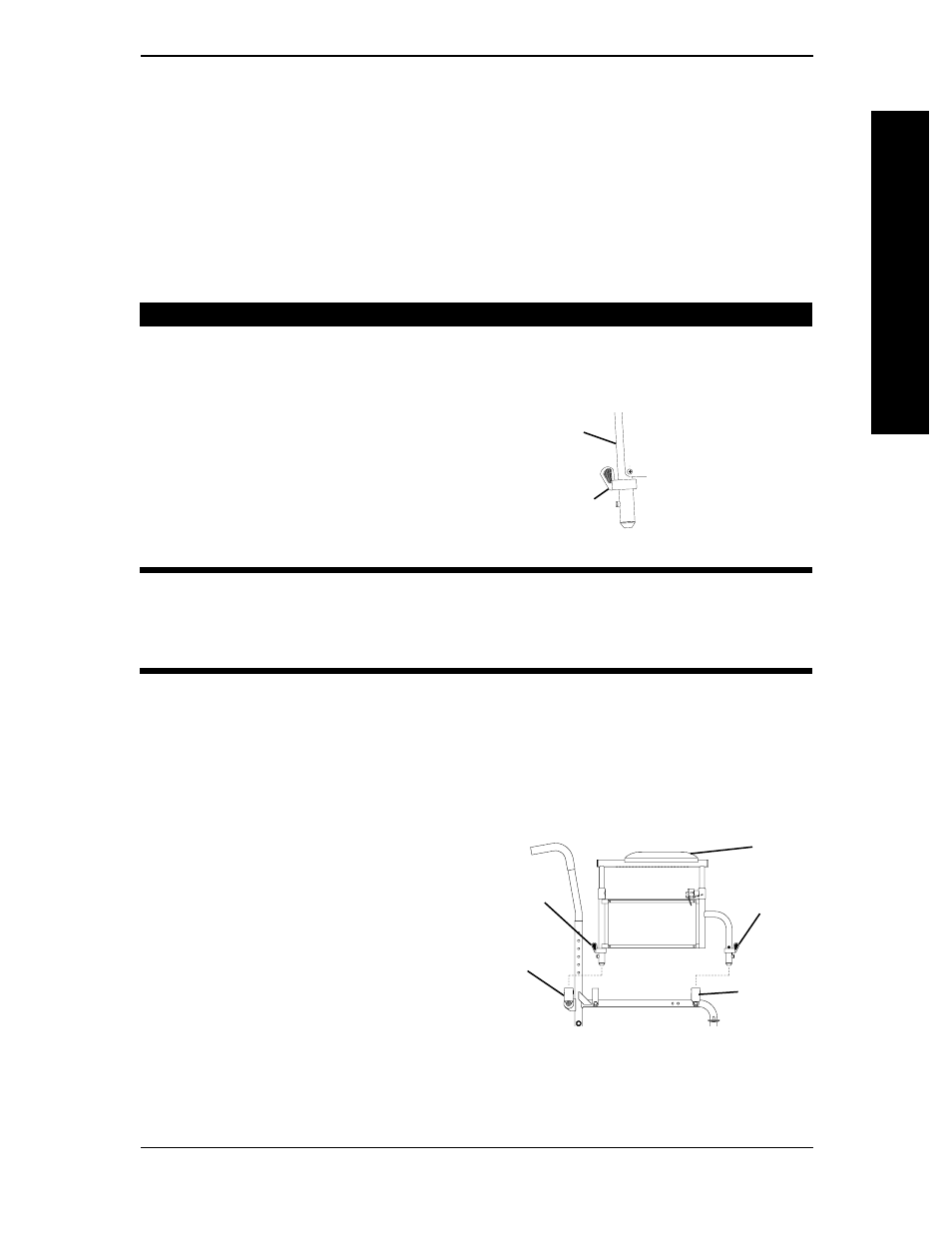

FIGURE 4 - REMOVING OR

REPLACING ARMREST

Armrest

Armrest Release

Handle

Rear Arm Post

NOTE: Identifyng

circular mark located

on the rear arm post

above or below the

the release lever.
