ADJUSTING HEADREST/BACK UPHOLSTERY TENSION
(FIGURE 4)
1. Rotate the spreader bar either:
COUNTERCLOCKWISE (away
from back upholstery) to LOOSEN
back/headrest upholstery.
OR
CLOCKWISE (towards back uphol-
stery) to TIGHTEN back/headrest
upholstery.
Back
Upholstery

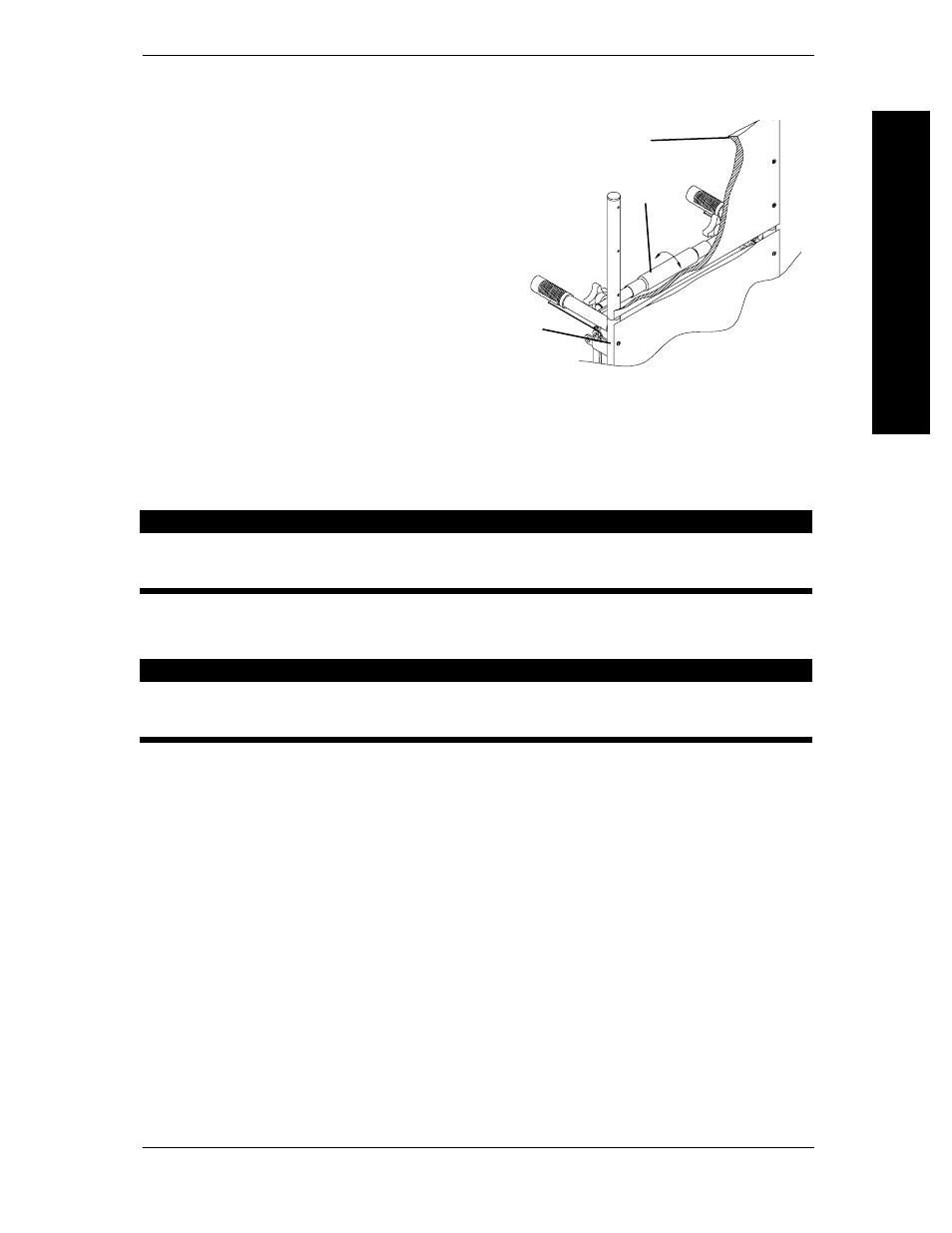

FIGURE 4 - ADJUSTING
HEADREST/BACK UPHOLSTERY
TENSION
Headrest Upholstery
Spreader
Bar
ADJUSTING THE SEAT DEPTH
WARNING
Adjusting the seat depth of the 9000XT Recliner MUST be performed by
a qualified technician.
ADJUSTING THE SEAT WIDTH
WARNING
Adjusting the seat depth of the 9000XT Recliner MUST be performed by
a qualified technician.
