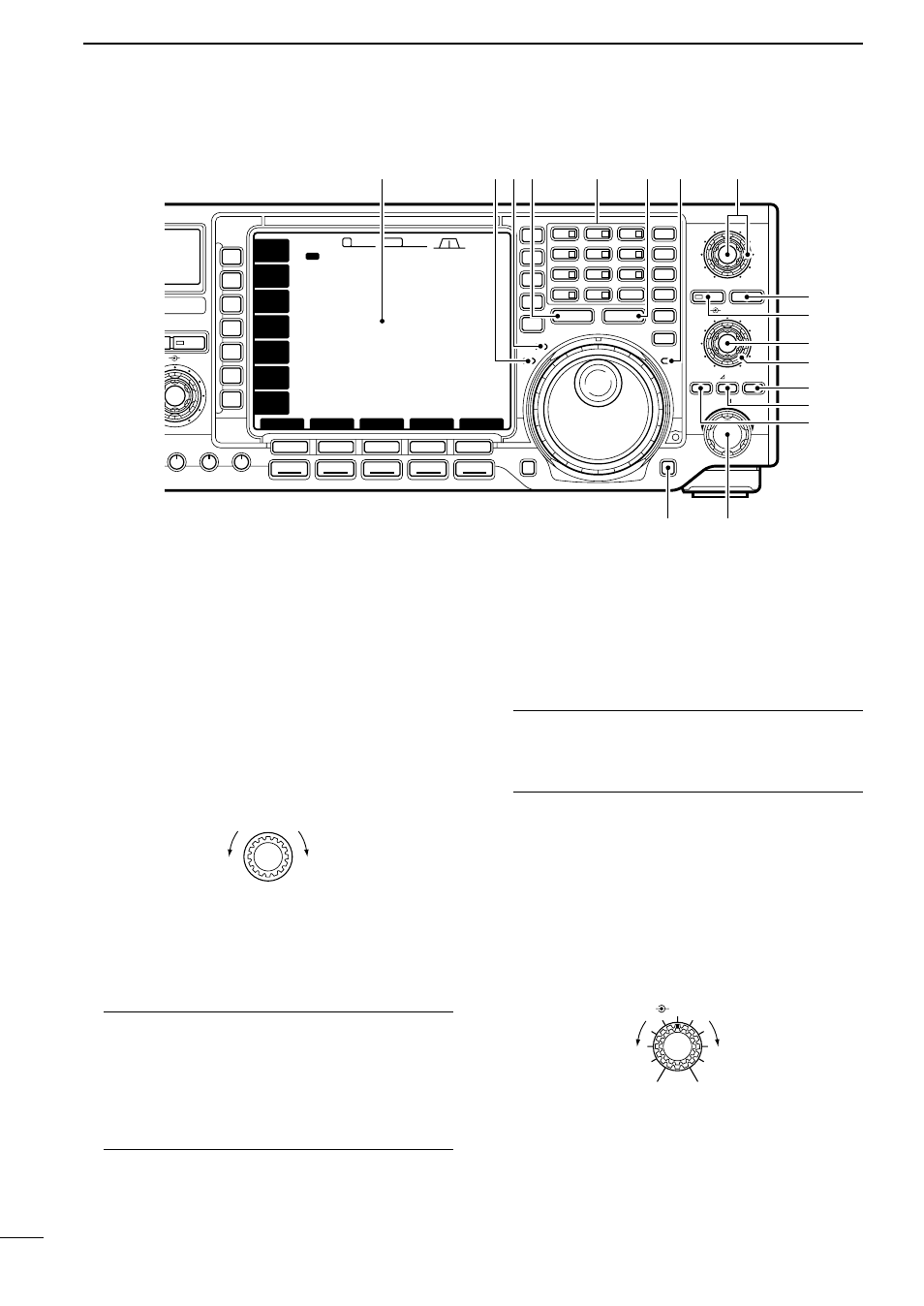

PANEL DESCRIPTION
#0
LOCK SWITCH [LOCK] (p. 38)
Turns the dial lock function ON and OFF.
#1
RIT/ ∂ ∂ TX CONTROL [RIT/ ∂ ∂ TX ] (p. 29)
Shifts the receive and/or transmit frequency without
changing the transmit and/or receive frequency
while the RIT and/or
∂ TX functions are ON.
- Rotate the control clockwise to increase the frequency,
or rotate the control counterclockwise to decrease the
frequency.
- The shift frequency range is ± 9.999 kHz in 1 Hz steps
(or ± 9.99 kHz in 10 Hz steps).
#2 RIT SWITCH [RIT] (p. 29)
• Turns the RIT function ON and OFF when pushed.
- Use the [RIT/ ∂ TX] control to vary the RIT frequency.
• Adds the RIT shift frequency to the operating fre-
quency when pushed for 2 sec.
✔ What is the RIT function?
The RIT (Receiver Incremental Tuning) shifts the receive
frequency without shifting the transmit frequency.
This is useful for fine tuning stations calling you on an off-
frequency or when you prefer to listen to slightly different-
sounding voice characteristics, etc.
#3 ∂ ∂ TX SWITCH [ ∂ ∂ TX] (p. 29)
• Turns the ∂ TX function ON and OFF when
pushed.
- Use the [RIT/ ∂ TX] control to vary the ∂ TX frequency.
• Adds the ∂ TX shift frequency to the operating fre-
quency when pushed for 2 sec.
✔ What is the ∂ ∂ TX function?
The ∂ TX shifts the transmit frequency without shifting the
receive frequency. This is useful for simple split frequency
operation in CW, etc.
#4
CLEAR SWITCH [CLEAR] (p. 29)
Clears the RIT/
∂ TX shift frequency when pushed
for 2 sec.
#5
CW PITCH CONTROL [CW PITCH ]
(outer control; p. 27)
Shifts the received CW audio pitch and monitored
CW audio pitch without changing the operating fre-
quency.
Approx. 300 Hz Approx. 900 Hz
APF CW PITCH
Lower frequency Higher frequency
RIT/ ∂ TX
Low shift High shift
NB NR
BAL NR
COMP KEY SPEED BK-IN DELAY
APF
APF
LOCK TX
RX
AUTO NOTCH
TWIN PBT
CW PITCH
F-1
SSB
F-2 F-3 F-4 F-5
SPEECH LOCK
RIT/ TX
TX RIT CLEAR
CW RTTY AM FM
SPLIT
MP-W MP-R
DUAL
WATCH
VFO/
MEMO
MAIN/
SUB
CHANGE
1.8 1 3.5 2 7 3
10 4 14 5 18 6
21 7 24.5 8 28 9
GENE 50 0 F-INP
ENT
MW
M-CL
TS
XFC
i756
1ß
VFO VFO
14.195.000 VFO VFO
USB USB
USB
14.100.00 14.100.00
14.205.000 14.205.000
USB USB
USB
14.100.00 14.100.00
56 56 ß
T X T X
FILTER SCAN MEMORY SET
VOX VOX
OFF
OFF
COMP COMP
OFF
OFF
SCOPE
ANT ANT
1
METER METER
Po Po
P.AMP P.AMP
OFF OFF
ATT ATT
OFF
OFF
AGC AGC
MID
MID
2.4k 2.4k 9 2.8k 2.8k 455 455 12:34 12:34
$5 $6 $4 $3 $1 $0 #9
#4
#6
#5
#3
#8
#7
#2
#1 #0
$2
