SET MODE
■ Set mode description
Set mode is used for programming infrequently
changed values or conditions of functions. This trans-
ceiver has a level set mode, display set mode, timer
set mode and miscellaneous (others) set mode.

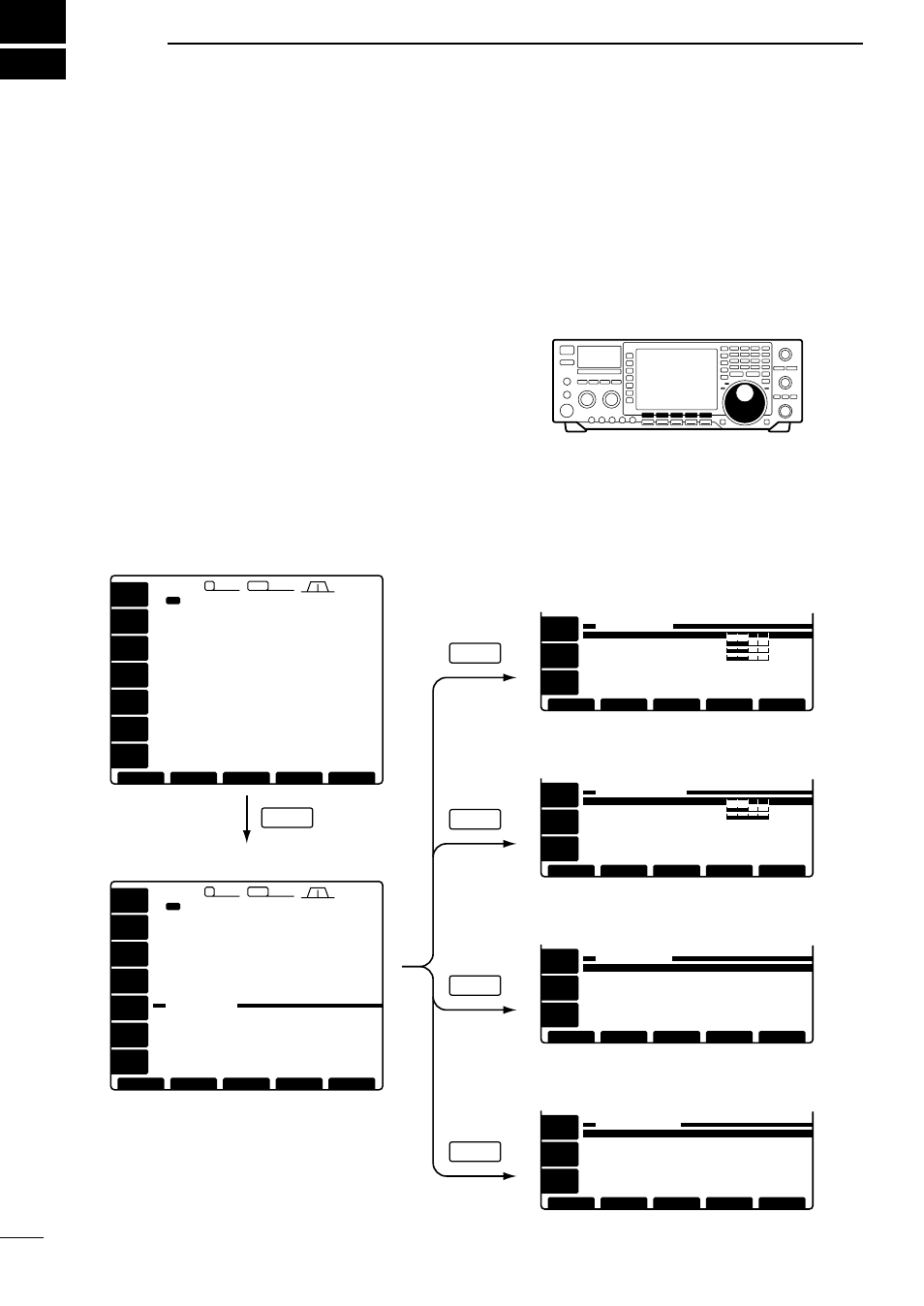

• Set mode operation
q If the start up screen is not selected (if [F-5]’s func-
tion is [EXIT]), push [F-5] one or more times to exit.
w Push [ (F-5) SET] to select the set mode screen.
e Push [ (F-1) LEVEL], [ (F-2) DISP], [ (F-3) TIME] or
[ (F-4) OTHERS] to enter the desired set mode.
r Push [ (F-1) Y ] or [ (F-2) Z ] to select the desired item.
t Set the desired condition using the tuning dial.
- Push [ (F-3) DEF] to select a default condition or value.
y For timer set mode, push [ (F-4) SET] to enter the set
time.
u Push [ (F-5) EXIT] twice to exit the set mode.
