Icom IC-756 User Manual
Page 10
7
1

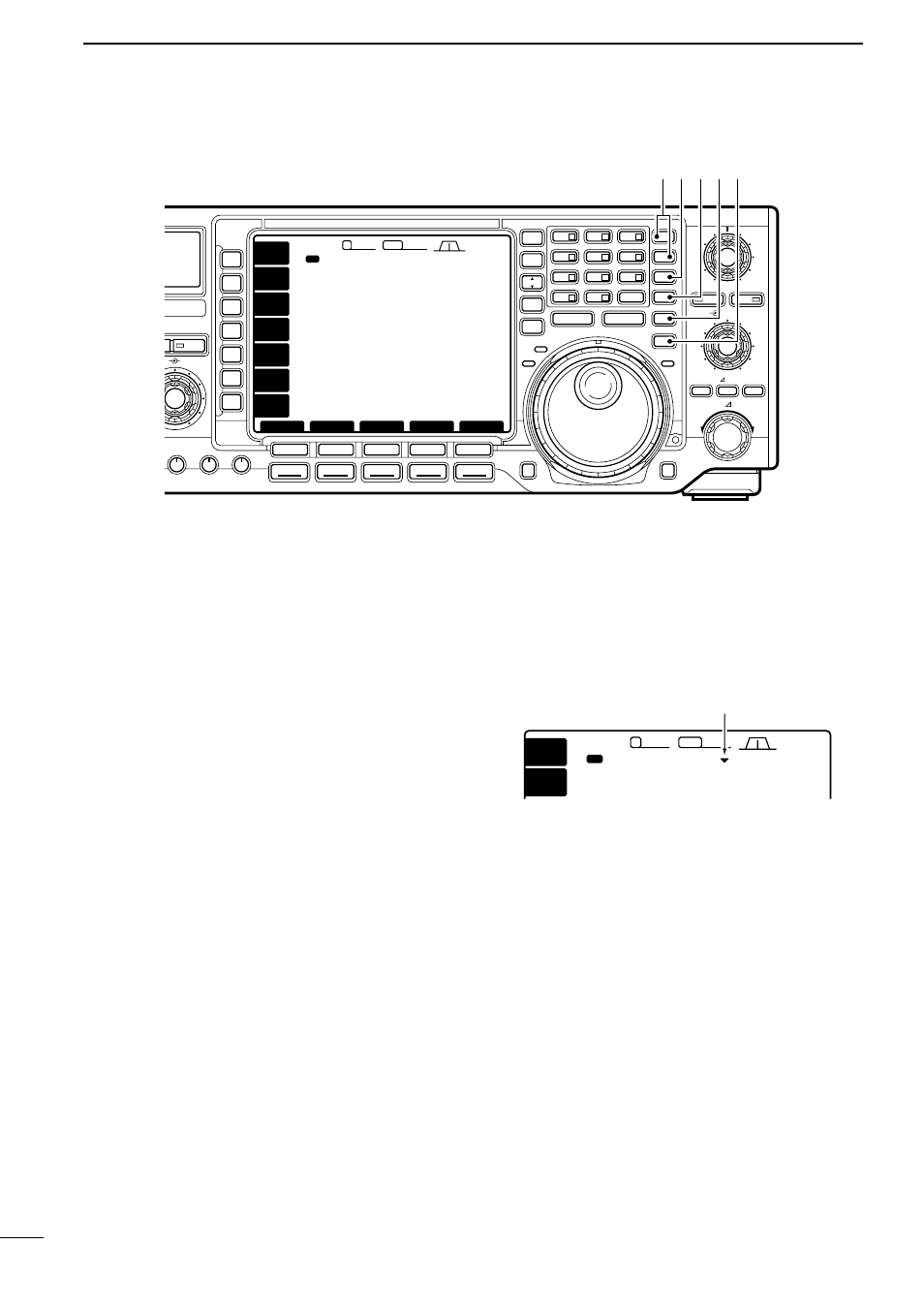

PANEL DESCRIPTION
$7
MEMORY UP/DOWN SWITCHES [
Y
Y
]/[
Z
Z
] (p. 41)
• Select the memory channel number for the se-
lected readout.
- Memory channels can be selected both in VFO and
memory modes.
• Select the desired memory channel directly after
pushing [F-INP] and a memory channel number.
$8
MEMORY WRITE SWITCH [MW] (p. 43)
Stores the selected readout frequency and operat-
ing mode into the displayed memory channel when
pushed for 2 sec.
- This function is available both in VFO and memory
modes.
$9
MEMORY CLEAR SWITCH [M-CL] (p. 45)
Clears the selected readout memory channel con-
tents when pushed for 2 sec. in memory mode.
- The channel becomes a blank channel.
- This switch does not function in VFO mode.
%0
QUICK TUNING SWITCH [TS] (p. 24)
• Turns the quick tuning step ON and OFF.
- While the quick tuning indicator is displayed, the fre-
quency can be changed in programmed kHz steps.
- 1, 5, 9 and 10 kHz quick tuning steps are available.
• While the quick tuning step is OFF, turns the 1 Hz
step ON and OFF when pushed for 2 sec.
- 1 Hz indications appear in both readouts and the fre-
quency can be changed in 1 Hz steps.
• While the quick tuning step is ON, enters the quick
tuning step set mode when pushed for 2 sec.
%1
TRANSMIT FREQUENCY CHECK SWITCH
[XFC]
Monitors the transmit frequency when pushed and
held when the split frequency function is ON.
- While pushing this switch, the transmit frequency can be
changed with the tuning dial, keypad, memo pad or the
[
Y
]/[
Z
] switches.
- When the split lock function is turned ON, pushing [XFC]
cancels the dial lock function. (p. 57)
14.100.00
VFO
VFO
USB
USB
USB
USB
14.205.00
14.205.00
T X
T X
1
ANT
ANT
1
METER
METER
Po
Po
2.4k
9
2.8k
455
12:34
Quick tuning indicator
NB
NR
BAL
NR
COMP
KEY SPEED BK-IN DELAY
APF
APF
LOCK
TX
RX
AUTO NOTCH
TWIN PBT
CW PITCH
F-1
SSB
F-2
F-3
F-4
F-5
SPEECH
LOCK
RIT/
TX
TX
RIT
CLEAR
CW
RTTY
AM
FM
SPLIT
MP-W
MP-R
DUAL
WATCH
VFO/
MEMO
MAIN/
SUB
CHANGE
1.8
1
3.5
2
7
3
10
4
14
5
18
6
21
7
24.5 8
28
9
GENE
50
0
F-INP
ENT
MW
M-CL
TS
XFC
i756
1ß
VFO
VFO
14.195.000
VFO
VFO
USB
USB
USB
14.100.00
14.100.00
14.205.000
14.205.000
USB
USB
USB
14.100.00
14.100.00
56
56
ß
T X
T X
FILTER
SCAN
MEMORY
SET
VOX
VOX
OFF
OFF
COMP
COMP
OFF
OFF
SCOPE
ANT
ANT
1
METER
METER
Po
Po
P.AMP
P.AMP
OFF
OFF
ATT
ATT
OFF
OFF
AGC
AGC
MID
MID
2.4k
2.4k
9
2.8k
2.8k
455
455
12:34
12:34
$7 $8 $9 %0 %1
