17
2
INSTALLATION AND CONNECTIONS

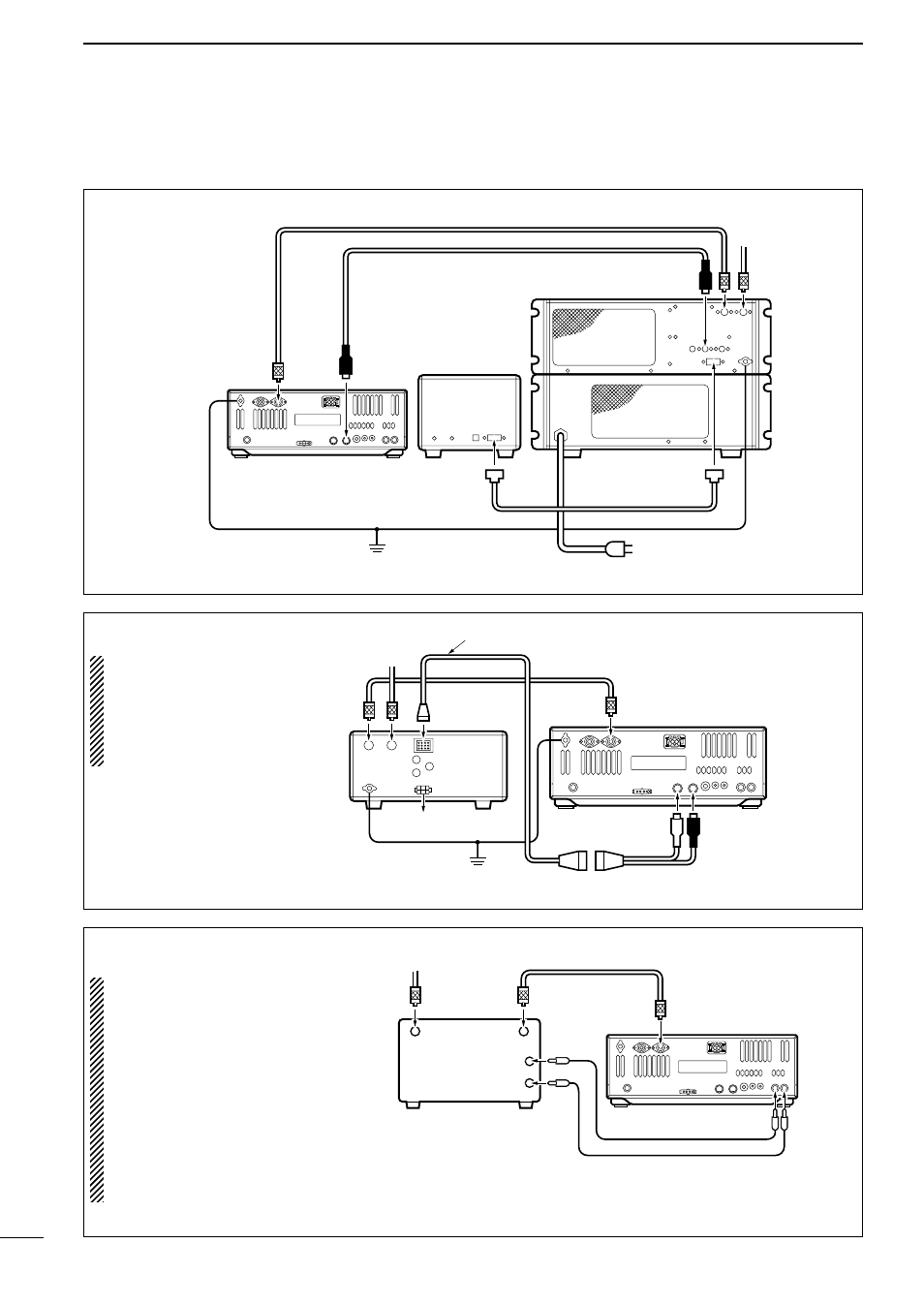

■ Linear amplifier connections
Transceiver
Ground
IC-4KL
Remote
controller
Coaxial cable (supplied with the IC-4KL)
ACC cable (supplied with the IC-4KL)
ACC
IC-4KL
Remote control cable
(supplied with the IC-4KL)
AC outlet (220–240 V)
To an
antenna
ANT1 ACC(2)
Use the [ANT1] connector when connecting a linear
amplifier.
NOTE: Turn OFF the transceiver’s antenna tuner while tuning the IC-4KL’s tuner.
Transceiver
Ground
Coaxial cable (supplied with the IC-2KL)
ACC cable (supplied with the IC-2KL)
IC-2KL
To the IC-2KLPS
OPC-118 (sold separately)
To an antenna
ANT
GND
ANT1
ACC(2) ACC(1)
CAUTION:
Set the transceiver output
power for 80 W max. with
the [RF POWER] control,
otherwise, a protection cir-
cuit will activate.
CONNECTING THE IC-4KL
CONNECTING THE IC-2KL
CONNECTING A NON-ICOM POWER AMPLIFIER
50
Ω
coaxial cable
NON-ICOM LINEAR
AMPLIFIER
To an
antenna
Transceiver
ANT1
RF OUTPUT
ALC SEND
RF INPUT
ALC
SEND
R WARNING:
Set the transceiver output power
and linear amplifier ALC output
level referring to the linear ampli-
fier instruction manual.
The ALC input level must be in the
range 0 V to –4 V, and the trans-
ceiver does not accept positive
voltage. Non-matched ALC and
RF power settings could cause a
fire or ruin the linear amplifier.
NOTE: The specifications for the SEND relay are 16 V DC 2 A. If
this level is exceeded, a large external relay must be used.
